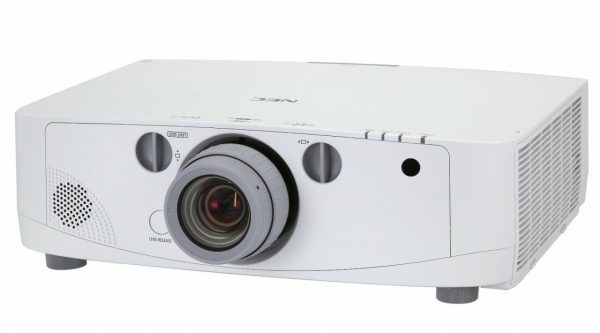

NEC PA500UG – LCD WUXGA (1920 x 1200) 5000 ANSI


SKU: 25 Category:


Crammed with features for high-quality, professional presentations

This reliable model is designed for carefree presenting and is highly-equipped making it perfect for large corporate boardrooms and lecture theatres. With its integrated RJ45, high-speed wireless LAN and numerous simple-to-use  management and maintenance features, the PA500UG lets you concentrate on presenting seamlessly, without having to worry about the technology.

Cutting-edge design

It also contains the industry’s first built-in stacking capability, meaning you can use four projectors to boost image brightness up to 20,000 lumens, so it’s ideal for larger-sized screens and environments with heavy ambient light.

PA500UG at a glance

  • ECO Mode™ technology helps extend lamp life and lowers power consumption
  • 5,000-lumen brightness enhances images for most applications
  • HQV™ technology delivers superior home theatre video processing
  • Windows Network Projector function simplifies your ability to present from any computer, whether local or remote
  • Geometric Correction Tool allows you to easily project square images on non-flat surfaces without distortion
  • AutoSense™ automatically syncs with any computer signal and features one-touch image optimization
  • 5 types of bayonet-style lenses, quick and easy to change.

Product Specs


Display Technology: 0.76″ LCD w/ MLA
Light Output(Lumens): 5000 normal


Native: WUXGA 1920 x 1200
Maximum: WUXGA 1920 x 1200
Contrast Ratio (up to): 2000:1
Lamp Type: 330W AC
Lamp Life (up to): 3000 hours normal / 4000 hours eco
Screen Size (diagonal): 25 to 500 in. / 0.64 to 12.7m
Throw Ratio: 1.5 to 3
Projection Distance: 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle: 10.3 to 10.8° tele / 13.7 to 14.5° wide


Zoom: 1 to 1.33
Focus: Manual
F number, fnumber: F=1.7 to 2.2, f=24.4 to 32.5mm
Shift: Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
Keystone Correction: +/- 40° horizontal, +/- 30° vertical


Signal Compatibility/Connectivity

Scan Rate

Horizontal: 15-108 kHz
Vertical: 48-120 Hz

Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility: Yes

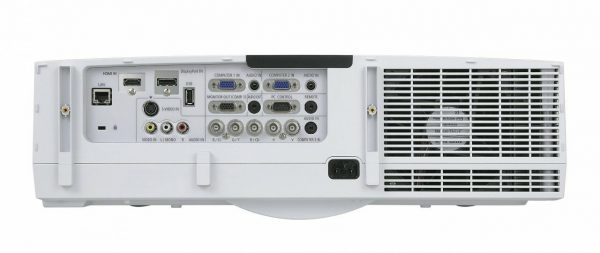

Input/Output Terminals

RGB1(analog): VGA 15-pin D-sub
RGB2(analog): VGA 15-pin D-sub
RGB3(analog): 5-BNC
RGB4(digital): HDMI w/ HDCP
RGB5(digital): DisplayPort
Video 1: RCA
Video 2: S-Video
Audio: Mini stereo
Monitor out: VGA 15-pin D-sub
Audio out: Yes
Audio: 10W mono
External Control: RS-232, IR
Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
Networking: RJ-45 Monitoring



Power Requirements: 100-240V AC, 50/60 Hz
Input Current: 5.1A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 464W / 372W / 16W / 0.2W



Installation Orientation    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)    19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm
Net Weight    17.2 lbs. / 7.8 kgPounds (lbs.)
Fan Noise    38 dB normal / 32 dB eco
Regulations    USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM


Operating Temperature: 41-104°F / 5-40°C
Humidity: 20-80% non-condensing
Storage: -14-122°F / -10-50°C

Additional Features

Automatic keystone correction
Wireless LAN
Active Lens Cover
USB Viewer
Geometric Correction
4000 hour Filter Life
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend


Ships With

Remote control
Remote control cable
Power cord
RGB signal cable
Built-in Lens cover
User manual
Quick Start Guide
Product registration card
Wires and wireless network setup guide
Lens anti-theft screw
