NEC PH1000U – WUXGA (1920 x 1200) 11000 ANSI


SKU: 22 Category:


Loaded with Technology for Large, Bright, High-Resolution Images

This advanced, high-end installation projector has superb brightness and is ideal for busy venues that demand heavy use and high-resolution picture quality. Crammed with advanced features but still easy-to-use, the NEC PH1000U gives audiences an outstanding visual experience.

Original design

The advanced technology of the NEC PH1000U gives you excellent choice and flexibility. There are five optional bayonet lenses and with its integrated stacking/rigging frame it’s perfect for a wide range of uses, including rental or staging, large corporate events and conference rooms, higher education and museums. It also works well for signage.

NEC PH1000U projector at a glance

  • WUXGA resolution, superb brightness levels and colour ranges
  • uncomplicated installation, even in challenging venues
  • motorised Lens Shift, with vertical and horizontal adjustment and Lens Memory, make it easy to set up perfect installation images

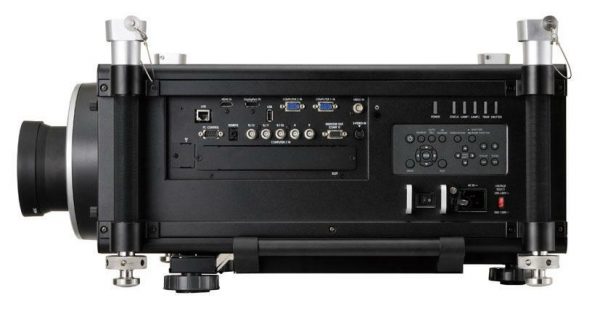

  • simple connectivity through large number of connectors, including DisplayPort terminal, and networking, analog and digital connection terminals
  • network control for handy maintenance and management of content and scheduling that helps save time and reduce costs.

Product Specs

General Aspect Ratio 16:10 (Native) 4:3, 16:9
Brightness (ANSI Lumens) 11000 ANSI lumens (Normal)
8800 ANSI lumens (Eco Mode)
Display Type 0.96″ DMD DLP
Resolution (Native / Max) WUXGA (1920 x 1200)
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i, 1080p)
Size Dimensions (WxHxD) 22.7in. x 9.3in. x 22.0in.
(57.66cm x 23.62cm x 55.88cm)
Weight 87.1 lbs. (39.51 kg)
Connectivity Inputs 2 x VGA D-Sub 15pin
5 x BNC
1 x HDMI
1 x DisplayPort
1 x Composite
1 x S-Video
Outputs 1 x RGB D-Sub 15pin
Control 1 x RS-232
1 x IR
1 x LAN RJ-45
1 x USB
1 x Wireless LAN
Operation Power Supply 100 ~ 240 V / 50 ~ 60 Hz
Power Consumption 1006W (Normal)
810W (Eco Mode)
33W (Standby)
0.2W (Standby: Power Saving)
Audible Noise 45 dB (Normal)
39 dB (Eco Mode)
Operating Temperature 41°F ~ 104°F (5°C ~ 40°C)
Operating Humidity 20 ~ 80% (Non-Condensing)
Storage Temperature -14°F ~ 122°F (-26°C ~ 50°C)
Projection Lens Lamp Type 400W
Lamp Life 2000 hrs (Normal)
2500 hrs (Eco Mode)
Lens Shift Vertical: + 50% / – 40%
Horizontal: +/- 20%
Projection Distance 1.8ft. ~ 243.0ft. (0.55m ~ 74.07m)
Projection Mode Front, Rear, Ceiling
Projection Screen Size (Diagonal) 80in. ~ 500in. (203.2cm ~ 1270cm)
Horizonal Keystone Correction +/- 35 Degrees
Vertical Keystone Correction +/- 30 Degrees
Other H-Sync Range 15 ~ 108 kHz
V-Sync Range 48 ~ 120 Hz
Features Automatic keystone correction
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend
Kensington lock slot
Image magnification
Discreet source keys
In The Box Items Remote Control
Dust Cap
User Manual
Quick Start Guide
Product Registration Card
Wired and Wireless Network Setup Guide
