NEC PA550WG – LCD WXGA 16:10 (1280 x 800) 5500 ANSI


SKU: 39 Category:


A powerful, high-quality, state-of-the-art projector for smooth presentations

Containing everything you need to produce superb, bright, high-resolution images in an easy to use, low-cost and eco-friendly projector, the NEC PA550WG is brilliantly adaptable, and full of handy features.

Slick, polished performance

With its wide-screen, integrated RJ45, high-speed wireless LAN and host of simple-to-use management and maintenance functions, the PA550WG helps you present seamlessly without worrying about the technology. The innovative built-in stacking capability for up to four projectors allows you to boost image brightness up to 22,000 lumens, ideal for large screens and rooms with heavy ambient light.

NEC PA550WG at a glance

  • ECO Mode™ technology extends lamp life and lowers power consumption
  • 5,500-lumen brightness enhances images for most applications
  • HQV™ technology gives you superior home theatre video processing
  • Windows Network Projector function simplifies your ability to present from any computer, local or remote
  • Geometric Correction Tool allows you to easily project square images on non-flat screen surfaces without distortion
  • 5 bayonet-style lenses that are quick and easy to change
  • stacking correction capabilities for up to four projectors boosts image brightness up to 22,000 lumens.

Product Specs


Display Technology: 0.75″ LCD w/ MLA
Light Output(Lumens): 5500 normal / Eco = approx. 80% of normal mode


Native: WXGA 1280 x 800
Maximum: WUXGA 1920 x 1200
Contrast Ratio (up to): 2000:1
Lamp Type: 330W AC / 264W eco
Lamp Life (up to): 3000 hours normal / 4000 hours eco
Screen Size (diagonal): 25 to 500 in. / 0.64 to 12.7m
Throw Ratio: Variable
Projection Distance: 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle: 10.3 to 10.8° tele / 13.7 to 14.5° wide


Zoom: 1 to 1.33
Focus: Manual
F number, fnumber: F=1.7 to 2.2, f=24.4 to 32.5mm
Shift: Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
Keystone Correction: +/- 40° horizontal, +/- 30° vertical

Signal Compatability/Connectivity

Scan Rate
Horizontal: 15-108 kHz
Vertical: 48-120 Hz
Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility: Yes

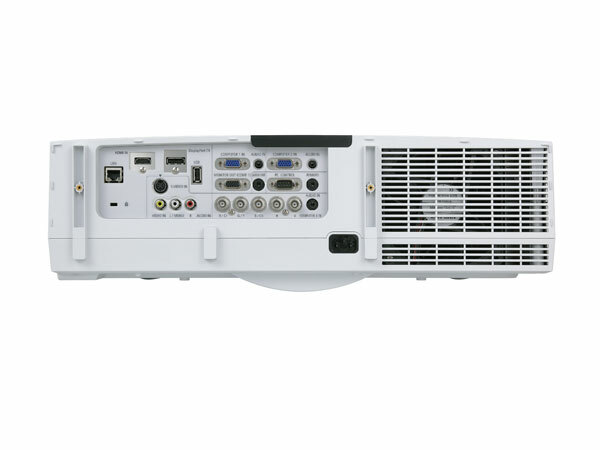

Input/Output Terminals

RGB1(analog): VGA 15-pin D-sub
RGB2(analog): VGA 15-pin D-sub
RGB3(analog): 5-BNC
RGB4(digital): HDMI w/ HDCP
RGB5(digital): DisplayPort
Video 1: RCA
Video 2: S-Video
Audio 1: Mini stereo
Monitor out: VGA 15-pin D-sub
Audio out: Yes
Audio 10W mono
External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
Networking: RJ-45 Monitoring


Power Requirements:100-240V AC, 50/60 Hz
Input Current: 5.1A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 464W / 372W / 16W / 0.2W


Optional Lenses: NP01FL, NP02ZL, NP03ZL, NP04ZL, NP05ZL
Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH): 19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm
Net Weight: 17 lbs. / 7.7 kgPounds (lbs.)
Fan Noise: 38 dB normal / 31 dB eco
Regulations: USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM


Operating Temperature: 41-104°F / 5-40°C
Humidity: 20-80% non-condensing
Storage: -14-122°F / -10-50°C

Limited Warranty

5 years limited warranty.

Additional Features

Automatic keystone correction
Wireless LAN
Active Lens Cover
USB Viewer
Geometric Correction
4000 hour Filter Life
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend

Ships With

Remote control
Power cord
RGB signal cable
Dust Cap for lens
User manual
Quick Start Guide
Product registration card
Wired and wireless network setup guide
Lens anti-theft screw
