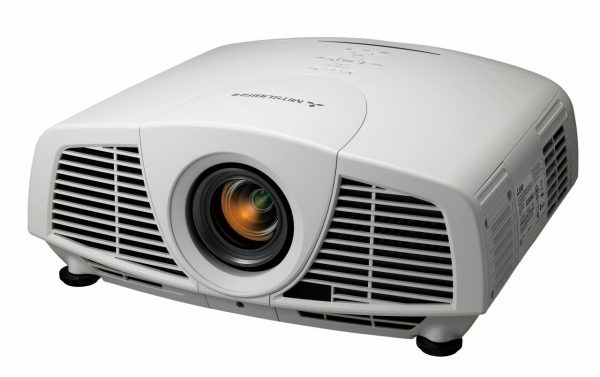

Mitsubishi XD3500U – DLP XGA (1024 x 768) 5000 ANSI


SKU: 176 Category:


With a category-leading brightness of 5000 ANSI lumens, the XD3500U from Mitsubishi Electric delivers stunning performance in large scale installations.

High Brightness and Contrast

Running at an amazing 5000 ANSI lumens, the XD3500U is the brightest projector in its class. Combined with a high contrast ratio of 2500:1, the user can be assured of high-impact visuals with excellent clarity and vividness. A new lamp drive system also ensures that the high brightness is retained for the entire life of the lamp.

Brilliant Color™ and Mitsubishi Electric Engineering Yield Superior Colour Performance

Brilliant Color™, one of the latest innovations from Texas Instruments, produces amazingly rich and vibrant colours. At Mitsubishi, we’ve developed a 5-segment colour wheel (R, G, B, W and Y), and combined it with BrilliantColor™ and selective lamp-powered modulation techniques to intelligently reproduce colours and improve the intensity and vibrancy across the entire screen.


Without Brilliant Color™                                       With Brilliant Color™

New Colour Wheel System

Unlike previous models, where dust could accumulate on the colour wheel sensors over time, the XD3500U has the sensors enclosed in the rotary shaft motor casing. This makes it much harder for dust to get on the colour wheel sensor, which means that colour reproduction remains clear and sharp over the long run.

Whisper-Quiet 26dBA operation*

By utilising both a hermetically sealed colour wheel and improved air duct path, running noise for the XD3500U has been significantly reduced for distraction free presentations

Improved Airflow Design

*When operating in low mode

Less than 1W in Standby Mode

Mitsubishi Electric Corporation is always striving to make their products more environmentally friendly. As a result, stand-by power usage in the XD3500U has been reduced to less than 1W.

Long Lamp Life

The optimum design for lamp temperature control has extended the useful life of the lamp to a maximum of 4000 hours*, greatly reducing the cost of ownership as fewer lamp changes are required.

*When operating in low mode

Filter Free design

Projector lamp filters require cleaning and maintenance which, if not performed regularly means dust particles become clogged in the filter, causing the projector lamp to overheat which can seriously reduce lamp life. The XD3500U has been designed so that no air intake filter is needed, for less maintenace and improved lamp performance .

Side Access Lamp

The lamp is accessed from the side of the projector. This design simplifies lamp replacements, as the projector doesn’t have to be moved if it’s mounted to the ceiling or resting on a shelf.

Centre Lens Design and Quick Lens Change

The lens of the XD3500U is situated at the centre of the projector body, making alignment with the centre of a projector screen quick and simple. The top of the projector has a cut out, making it easier to change to one of the optional lenses available as the entire top casing doesn’t have to be removed.

Motorised Lens Shift (Horizontal and Vertical), Zoom and Focus

ProjectorView™ – allows you to monitor and control the projector via a network (LAN) connection

Multiple data and video inputs, including HDMI™ v1.2

Product Specs

Display technology

0.7″ 1-chip DMD, 12 deg. LVDS, DarkChip3™ with DDP3020


1024 x 768 (Total 786,432 pixels)

Brightness (Maximum)

5000 ANSI lumens



Picture Size

40 ~ 300 inch (100″ = 3.8m)

Source lamp*

330W / 2,000 hours (Normal mode)
264 W / 4,000 hours (Low mode)

 Zoom/Focus Powered Focus & Zoom (Zoom Ratio 1.35:1)

Computer compatibility

Resolution: 640 x 400 (Expand) – 1024 x 768 (Real) – 1600 x 1200 (Compressed); Sync on Green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i / p (525i / p), 576i / p (625i / p), 720p (750p 50 / 60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), (1080i(1250i 50Hz) is not available), SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal)

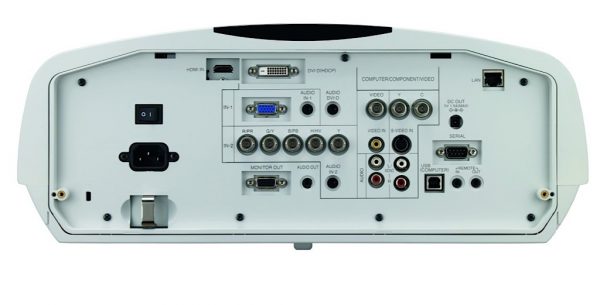

PC input terminals

Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1; Audio: stereo mini jack (ø3.5mm) x 3

Video input terminals

RCA x 1; BNC x 1; S-VIDEO x 2(4-pin or BNC); HDMI(v1.2) x 1 Audio: RCA (L,R) x 2

Output terminals RGB : Mini D-sub 15pin x 1, DC Out: 5V; Audio: Stereo Mini Jack (Ø 3.5mm) x 1

Communication terminals

LAN (RJ-45) x 1, RS-232C: D-sub 9pin x 1, USB x 1 (Mouse control), Wired remote in/out

 Audio Speaker 10W Mono
 Power consumption 430W/4.5A
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

26 dB(A) (Lamp low mode)

Dimensions (W x H x D)

450 x 194 x 373 mm (excluding all protrusions)


10.3 kg

Optional lamp


Lens: OL-XD2000SZ, OL-XD2000LZ, OL-XD2000TZ, OL-XD2000FR

Included accessories

AC Power Cable, RGB Cable, RS-232C Cable, Remote Cable, Terminal Cover, Remote Control (with battery), User Manual CD, Safety Manual
