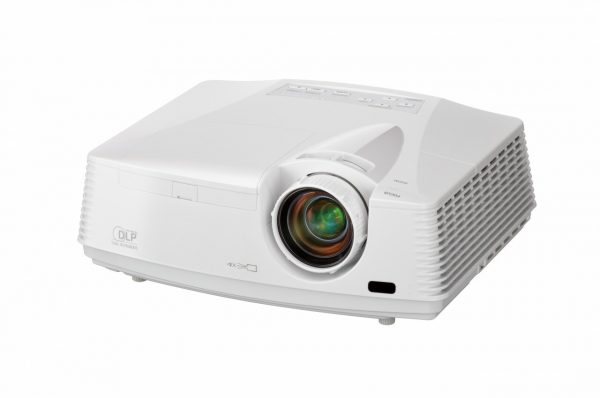

Mitsubishi FD630U – LCD Full HD 4000 ANSI


SKU: 172 Category:


The FD630U portable DLP™ projector from Mitsubishi Electric delivers stunning Full HD (1920 x 1080 pixel) images with excellent brightness and contrast in a lightweight solution.

Combining the visual experience of full high-definition images with a lightweight, compact design, the FD630U portable projector makes it easy for educators and sales people alike to deliver high-impact presentations no matter where they are. With outstanding picture quality, as well as a range of performance enhancing features, the FD630U portable projector is the ideal full HD multimedia projector for use in businesses or schools.

Full HD Resolution – With a display screen area 2.3x larger than standard XGA projectors, the FD630U portable projector is capable of delivering data and video presentations with far greater detail.


XGA resolution                                       Full HD resolution

Excellent Brightness and Contrast – With a high 4000 lumens brightness and 2000:1 contrast ratio, the FD6300U portable projector is able to deliver clear, vibrant images even in well lit rooms.

Superb Colour Reproduction – A combination of BrilliantColor™ technology, Color Enhancer™ and a five-segment colour wheel means image colour is reproduced with the utmost accuracy.

Long Lamp Life up to 5,000 hours – The FD630U is capable of running for up to 5,000 hours (in low mode), greatly lowering the cost of ownership.

Quiet 29dB(A)* Operating Volume – For presentations free of distraction from the projector.

High Powered Zoom Lens  – With its specially calibrated zoom lens, the FD630U is capable of projecting large images even when space is limited.

Network Connectivity – The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. The supplied ProjectorView Global+ software allows for the simultaneous control of multiple Mitsubishi projectors on the same network.

Visual PA2 system – Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. The software is also capable of recognising text, then converting it to a verbal announcement for increased impact.

How the Mitsubishi Electric Visual PA2 system works

How the Mitsubishi Electric Visual PA2 system works

Built-in 10W speaker with “Audio Mix” feature – A high-volume 10W speaker is built in to the projector, eliminating the need for an external speaker in a classroom environment. The “Audio Mix” allows the user to adjust the volume of two separate audio inputs (e.g a wireless microphone and DVD player) independently, for greater audio control during presentations.

Low Standby Power use – In keeping with Mitsubishi Electric global green policies the FD630U portable projector uses less than 1W in standby mode (3W when connected to a network), for better energy efficiency that saves you money.

Wide range of video and data inputs, including HDMI – Connect multiple devices to the projector at the same time – perfect for fixed installation units.

Filter free design – No filter to clean means less projector downtime for maintenance.

Top Loading Lamp – For easy lamp replacement when the projector is suspended from the ceiling, as the projector does not need to be removed from its mount.

Instant Shutdown – For quick pack up time when moving the projector between locations.

Product Specs

Display technology 0.65″ 1-chip DMD, 12 deg. LVDS, DDP3021
Resolution 1920 x 1080 (Total 2,073,600 pixels)
Colour Wheel 5seg. Color Wheel (R/G/B/W/Y)
Brightness (Maximum) 4000 ANSI lumens
Contrast 2000:1
Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.5:1) ,with Zoom Triger
Projection Lens f=20.6 ~30.1 mm, F=2.4-2.8,  (3.1-4.6m@100″)
Off set axis 4.0:-1 , Hd=0.42m up @100″
Picture Size 40″ ~ 300″ (100″=3.3m)
Source lamp* 280W / 3,000 hours (Normal mode)
230W / 5,000 hours (Low mode)
Computer compatibility 640 x480(Expand)  – 1920 x 1080(Real) – 1600 x 1200 (Compressed), Sync on green available
Video compatibility NTSC/ NTSC 4.43/ PAL (including PAL-M, N) / SECAM/ PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i(1125i 50Hz), 1080P, (1080i(1250, 50Hz) is not available)
PC input terminals RGB:mini D-sub 15 pin x 2, HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm)
Video input terminals Composite RCA x 1, S-Video x 1; Audio: Stereo RCA x 1
Output terminals RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
Communication terminals RS-232C: 8pin x 1, LAN (RJ-45) x 1
Audio Speaker 10W Mono
Power consumption 390W, less than 1W in Power Standby mode (3W with network connection)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 29 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345 x 129 x 270mm (excluding all protrusions)
Weight 3.8 kg
Optional lamp VLT-XD600LP
Included accessories AC Power Cable, VGA (D-sub) Cable, Remote Control (with battery), Quick Start Card, User Manual, Safety Manual, Lens Cap, Lamp Replacement Tool, Soft Carry Case
