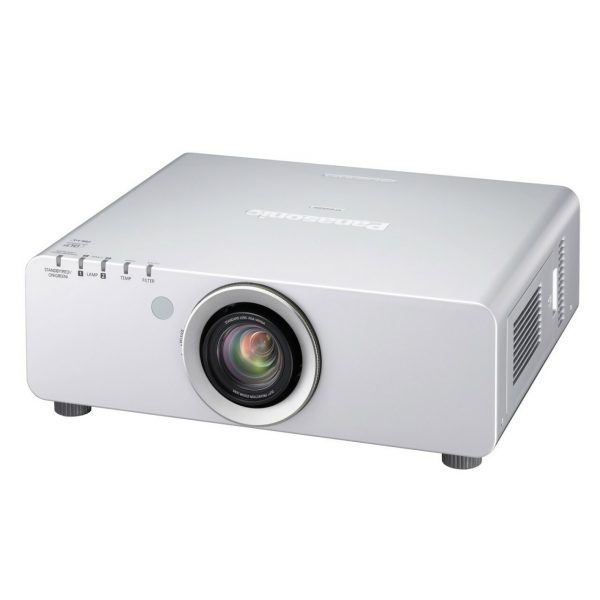

Panasonic PT-DW6300ES – WXGA (1280 x 800) 6000 ANSI


SKU: 65 Category:


The RGB booster achieves high image quality with levels of colour reproduction (up to 145 percent of that of conventional models) and brightness that make each colour stand out.

It combines Panasonic’s proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLPT projector that produces bright and vivid colours. This unique control technology optimises the use of the colour segment areas of the colour wheel. It increases the brightness of each RGB colour by minimising the unallocated portions between the colours, to achieve truly vivid colouring.

The 2-lamp system increases brightness and eliminates the need to interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation. Panasonic’s original liquid-cooling system directly cools the DLP™ chip, which extends PT-D6000 Series performance and attains a high level of reliability. It also enables operation in temperatures up to 45 °C / 113 °F for use in a wider variety of environments, and maintains a more stable performance even in harsh conditions while keeping the operating sound down.

Panasonic’s proprietary Auto Cleaning Filter (ACF) automatically exposes a clean filter surface when it senses that the filter is clogged. A highly efficient electrostatic filter in the air intake section traps dust particles that are 1 micron or larger. The dust-resistant design of the optical block helps ensure that projectors with DLP™ technology will continue to deliver crisp, sharp, high-resolution images over an extended service life.

System integration flexibility adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using just the remote control, with no external equipment needed. Used together with the multi-screen support system, Geometric Adjustment expands your application possibilities, letting you create a wide range of image effects at concerts, performances and other special events.

Product Specs

Power Supply 220–240 V AC, 3.8 A, 50/60 Hz
Power Consumption 750 W
Panel Type 16.51 mm (0.65 inches) DLPTM chip x 1
Lamp 300 W UHM x 2
Brightness 6, 000 lumens
Lens (Throw ratio) F 1.7−2.0, f 25.6−33.8 mm (1.8–2.4:1)
Contrast (Full on/full off) 2, 000:1 (contrast mode: high)
Resolution Native/maximum WXGA (1, 280 x 800)/WUXGA (1, 920 x 1, 200)
Screen Size 1.27-15.24 m (50-600 inches)
Lens Shift Vertical: +60%, horizontal: ±10%

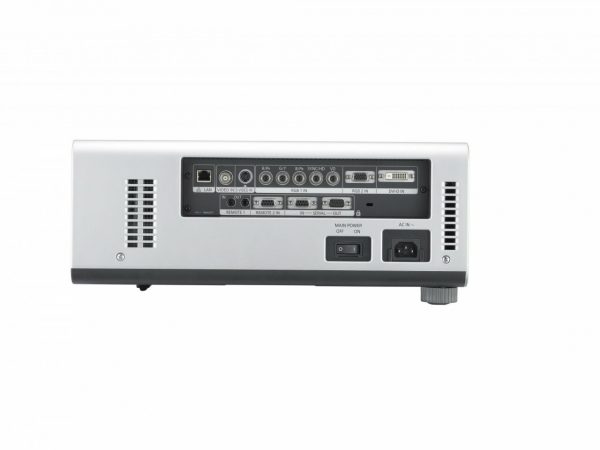

Terminals DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP Compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
Composite video in [BNC x 1]
S-Video in [Min-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [(D-sub 9-pin x 1]
LAN [(RJ-45 x 1 (10Base-T/100Base-TX)]
Dimensions (W x H x D) 498 x 175 x 440 mm
(19-19/32 x 6-7/8 x 17-5/16 inches)
Weight Approx. 16.0 kg/35.3 lbs
(PT-DW6300LS: Approx. 15.2 kg/33.5 lbs)
Replacement Lamp ET-LAD60
ET-LAD60W (2 units)
Optional Accessories ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
Standard Accessories Power cord, Wireless/wired remote
control, Batteries for remote control unit,
Safety wire rope
Optional Lens ET-DLE080 (Zoom lens, 0.9−1.0:1)
ET-DLE150 (Zoom lens, 1.4−2.0:1)
ET-DLE250 (Zoom lens, 2.4−3.8:1)
ET-DLE350 (Zoom lens, 3.8−5.7:1)
ET-DLE450 (Zoom lens, 5.6−9.0:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
