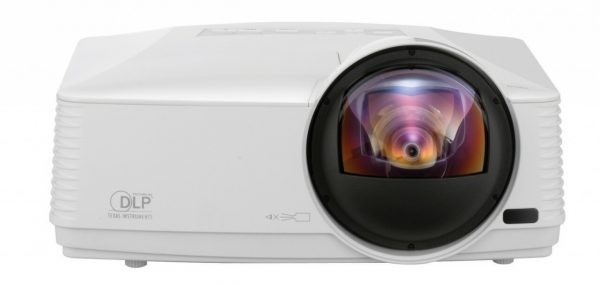

Mitsubishi XD360U-EST – DLP XGA (1024 x 768) 2500 ANSI Ultra Short-Throw


SKU: 188 Category:


Deliver big, vibrant presentations in even the smallest of rooms with the Mitsubishi Electric XD360U-EST XGA Ultra-Short Throw Projector.

Ultra short throw ratio of 0.469

By using a large-diameter lens and optimal optical engine design, a short focal distance has been achieved. This allows the presenter to stand in front of the projector without being blinded by projector light or blocking the displayed image.


Regular Throw Distance                                      Short Throw Distance

High Brightness and Contrast Ratio

With a high brightness of 2500 ANSI Lumens, the XD360U-EST is capable of projecting easy-to-view images even in well-lit areas. A high 3000:1 contrast ratio has also been achieved for deeper black reproduction.

USB/LAN Display

The XD360U-EST can display images from several types of source inputs including VGA, USB and LAN/Wireless LAN (W-LAN). When using the LAN connection, up to four computers can be connected to the one projector simultaneously, with the projected image divided into quarters for each computer input.

Remote Desktop

When using the LAN connection with the XD360U-EST, a USB mouse or USB keyboard can be connected to the projector, enabling direct access via the connected computer to the internet or another application.

Computer Free Presentations with JPEG Viewer

Using  “PtG Converter”, PowerPoint presentations can be converted into a special format and saved on a USB storage device. The USB device can then be connected directly to the projector to slideshows or animation effects.


Network Connectivity – The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. When used with Crestron® Room View,® integrated control of up to 250 projectors is possible. The XD360U-EST is equipped with AMX Device Discovery for simplified device management and is compatible with  PJLink™.

Visual PA system – Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. Ideal for broadcasting important information to multiple rooms at a school or campus.

Top Loading Lamp – for easier replacement in fixed installations, the lamp can be accessed from the top of the projector.



Built-in 10W Speaker with Audio Mix Feature

Quiet 28dBA Operation (in Low Mode)

Stand-by Audio/Audio Pass-through

3D Ready

Up to 6000 hour lamp life (in Low Mode)

Filter-free Design

Auto Power Off

Stand-by Power under 0.5W

Optional Wall Mounting Bracket available (BR-380WM)

Product Specs

Display technology 0.55″ 1-Chip DMD, DDP2431
Resolution 1024 x 768 (Total 786,432 pixels)
Brightness (Maximum) 2500 ANSI lumens
Contrast 3000:1
Colour Wheel 5seg. Colour Wheel (R/G/B/W/Y)
Picture Size 60″ ~ 150″
Zoom/Focus Manual Focus & Fixed Zoom Lens
Projection Lens f=5.4 mm, F=2.7,  ( 0.77m@80″ , Throw Ratio=0.469)
Off set axis 7.9:-1 , Hd=0.23m up @100″
Source lamp 230W / 3,000 hours (Normal mode)*
190W / 6,000 hours (Low mode)*
Computer compatibility Resolution ; 640 x480(Expand)  – 1024 x 768(Real) – 1600 x 1200(Compressed), Sync on green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p(1125i/p 50Hz)
PC input terminals RGB:mini D-sub 15 pin x 2; Digital: HDMI (ver1.2) x 1; Audio: Stereo mini jack x 2 (3.5mm)
Video input terminals Composite RCA x 1, S-Video x 1, Audio RCA (L,R) x 1
Output terminals RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
Communication terminals RS-232C; D-sub 9pin x 1, LAN RJ-45 x 1 (Projector Control,LAN Display), USB type-A ; Wireless Display, PC Less Presentation, USB type-B ; USB Display
Scanning Rate  [H] 15 – 80 kHz, [V] 50 – 120Hz; [Dot clock] max.165 MHz
Audio Speaker 10W Mono x 1
Power consumption 340W (maximum) / less than 0.5W in power saving mode (when LAN and RS232 not connected)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 28 dBA (Lamp low mode)
Dimensions (W x H x D) 325 x 113 x 258 mm (excluding all protrusions)
Weight 4.1 kg
Optional lamp VLT-XD560LP
Included accessories AC Power Cable, VGA Cable, Card Remote Control (with batteries), User Manual CD, Quick Startup Guide & Safety Manual, Lens Cap, Lamp replacement attachment
