Mitsubishi WL7200U – LCD WXGA (1280 x 800) 5500 ANSI


SKU: 183 Category:


If you’re after a high brightness widescreen projector for a meeting room, lecture theatre or house of worship, then look no further than the WL7200U from Mitsubishi Electric. Offering high brightness and contrast, a host of advanced image enhancing and control features, as well as an eco-conscious design that simplifies installation, the WL7200U delivers high-impact, big-screen visual performance.

High 5500 Lumens Brightness

The WL7200U is capable of displaying images at a high 5500 ANSI lumens. This level of brightness makes it ideal for use in large areas such as meeting rooms or lecture halls.

Inorganic LCD Panel

An inorganic LCD panel has been chosen for the WL7200U, which has an increased service life compared to conventional organic liquid-crystal panels.

Super Resolution Technology

This innovative processing algorithm has been designed in-house by Mitsubishi Electric. The technology analyses blurred components of low resolution images, then estimates how a high resolution version of the images would appear and corrects them for fine, detailed reproduction quality.


Original Image                                                      Image processed by Super Resolution

High Performance Extra-Low Dispersion Lens

The WL7200U is equipped with a lens system comprised of 17 lenses in 13 groups, including an extra-low dispersion (ED) lens. Compared to commonly used glass lenses, the ED lens delivers improved image sharpness all the way to the edge of the screen.

Automatic Self-Cleaning Filter

Utilising the same technology found in Mitsubishi Electric air-conditioners, the self-cleaning filter prevents dust build-up in the projector. It can be set so the filter rolls every 500, 750 or 1,000 hours, and can also be operated manually.


Lamp Life up to 4000 hours

Designed with optimum lamp temperature control, the lamp WL7200U has a lamp life of up to 4000 hours*. This greatly reduces the overall cost of ownership, as the projector will require fewer lamp changes over the long run.

Network connectivity for remote access and control

The WL7200U is equipped with an RJ45 Ethernet connection, providing an A/V manager with the ease and convenience of remote monitoring and management. When used with Crestron® software, integrated control of up to 250 projectors is possible.The WL7200U is also compatible with AMX Device Discovery and PJLink™ software.


Natural Colour Matrix

In addition to conventional red (R), green (G) and blue (B) colour gradations, the intermediate colours of yellow (Y), magenta (M) and cyan (C) can each be controlled independently.

Quiet 30dBA operation

With a low fan noise of just 30dBA in low lamp mode, the WL7200U gives your audience presentations free of any noise distraction from the projector.

Geometric Correction

The WL7200U includes several different methods for correcting image geometry. Keystone correction fixes trapezoidal distortion, Cornerstone correction fixes diagonal distortion and Curved Surface correction allows for images to be portrayed accurately on curved or round surfaces such as pillars.

Curved Projection

Variety of Optional Lenses with Bayonet Mount

Users can choose between four different lenses to use, with each lens covering a wide range of projection ratios. The WL7200U also comes with a bayonet mounting system, making exchange or replacement of the lens quick and easy.


360º Projection along the Vertical Axis

Wide Area Motorised Lens Shift (H: ±30%, V: ±70%)

Remote Control with Unique Projector ID

Powered Focus and Zoom

Stand-by Mode under 0.3W*

Auto Power Off

Side Lamp Replacement

Virtual DICOM mode for medical applications

Direct Power Off

Product Specs

Display technology 0.75″ 3-LCD (with Micro Lens)
Resolution 1280 x 800 (Total 1,024,000 pixels)
Brightness (Maximum) 5500 ANSI Lumens
Contrast 2000 : 1 with Iris (on/off)
Zoom/Focus Powered Focus & Zoom (Zoom Ratio 1.8:1)
Projection Lens f= 24.0 – 43.2mm  , F= 1.8 – 2.6  3.1m@100″(Wide)
Off set axis

1 : 1 (default)   with Variable H+V Powered Lens Shift

Hd= +/-70% of Image Height (6:-1 ~ -6:1)

Wd= +/-30% of Image Width (Maximum values for vertical/horizontal lens shift cannot be set simultaneously)

 Picture Size  40 – 300 Wide (inch)
 Source lamp*  350W  (Shut Off Time 3000Hrs) with Low Mode (264W:Shut Off Time 4000Hrs)
Computer compatibility Resolution ; 640 x 400 (Expand) – 1280 x 800 (Real) – 1920 x 1200 (Compress), Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), (1080i(1250i 50Hz) is not available)
SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal)

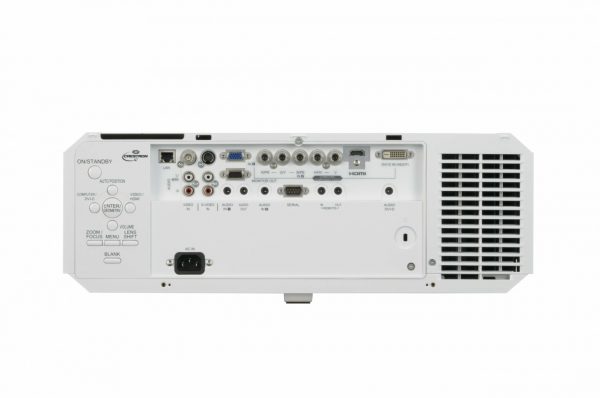

PC input terminals 5 BNC x 1, Mini D-Sub 15pin x 1; DVI-D(with HDCP) x 1; Audio: Stereo mini-jack (f3.5mm) x 3
Video input terminals Composite RCA (BNC) x 1, S-VIDEO (4pin) x 1, HDMI (ver1.3) x 1;  Audio: RCA (L/R) x 2
Output Terminals  Mini D-Sub 15 pin x 1; Audio: Stereo mini jack (f3.5mm) x 1
Communication terminals

LAN(RJ-45) ; x 1 (Projector control)

RS-232C ; D-Sub 9pin (IN) (Direct command is available.)

Wired remote (IN) ; x 1 (f3.5mm Stereo mini jack)

Wired remote (OUT) : x 1 (f3.5mm Stereo mini jack)

Scanning Rate [H]15 – 100 kHz; [V]50 – 120 Hz; [Dot clock] max.162 MHz
Fan noise 30dBA (Lamp low mode)
Dimensions (W x H x D) 481 x 179 x 418mm (including detachable terminal cover)
Weight 10.5 kg
Power Consumption


0.3W in Standby Mode (Low), 1.8W when connected to a network via LAN (Low)

5W in Standby mode (Standard)

Power supply AC 100 – 240 V, 50/60Hz
Optional lamp VLT-XL7100LP
 Optional Accessories 4 types of interchangeable Projection Lens (OL-XL7100SZ / OL-XL7100LZ / OL-XL7100TZ / OL-XL7100FR)
Included accessories

AC Power Cable  :2.9m x 1

RGB cable :1.8m x1

RS-232C cable :1.8m  x 1

Remote unit (incl. battery) x 1

Terminal Cover x 1

User Manual (CD-ROM) : Eng / Fra / Ger / Spa / Ita / Chi/ Por

Safety Manual : Eng / Fra / Ger / Spa / Ita / Chi/ Kor / Por / Rus(incl. explanation for Quick Start)
