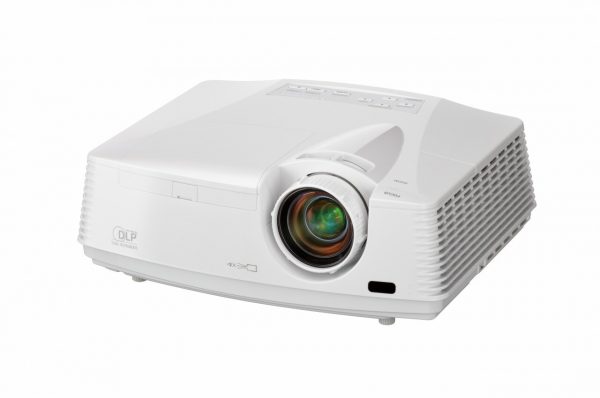

Mitsubishi WD620U – DLP WXGA (1280 x 800) 4000 ANSI


SKU: 186 Category:


With a native WXGA resolution, excellent brightness and contrast, as well as long lasting performance, the WD620U from Mitsubishi Electric is the ideal projector for delivering widescreen presentations in the boardroom or classroom.

As the trend towards widescreen TV broadcasts and computer screens continues to grow, it’s important to have display products that can support the widescreen format. The WD620U has a resolution of 1280 x 800, making it the perfect projector to display computer presentations in widescreen format, or play back DVDs without compression. The WD620U also boasts the following range of image and performance enhancing features:

Excellent Brightness and Contrast – Thanks to its high 4000 lumens brightness and 2000:1 contrast ratio, the WD620U always delivers clear, vibrant images even in well lit rooms.

Superb Colour Reproduction – A combination of BrilliantColor™ technology, Color Enhancer™ and a five-segment colour wheel means image colour is reproduced with the utmost accuracy.

Long Lamp Life up to 5,000 hours – The WD620U is capable of running for up to 5,000 hours (in low mode), greatly lowering the cost of ownership.

Quiet 29dB(A)* Operating Volume – For presentations free of distraction from the projector.

High Powered Zoom Lens  – With its specially calibrated zoom lens, the WD620U is capable of projecting large images even when space is limited.

Network Connectivity – The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. The supplied ProjectorView Global+ software allows for the simultaneous control of multiple Mitsubishi projectors on the same network.

Visual PA system – Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. Ideal for broadcasting important information in schools or businesses.

Built-in 10W speaker with “Audio Mix” feature – A high-volume 10W speaker is built in to the projector, eliminating the need for an external speaker in a classroom environment. The “Audio Mix” allows the user to adjust the volume of two separate audio outputs (e.g a wireless microphone and DVD player) independently, for greater audio control during presentations.

Low Standby Power use – In keeping with Mitsubishi Electric’s global green policies the WD620U uses less than 1W in standby mode (3W when connected to a network), for better energy efficiency that saves you money.

Wide range of video and data inputs, including HDMI – Connect multiple devices to the projector at the same time – perfect for fixed installation units.

Filter free design – No filter to clean means less projector downtime for maintenance.

Top Loading Lamp – For easy lamp replacement when the projector is suspended from the ceiling, as the projector does not need to be removed from its mount.

Instant Shutdown – For quick pack up time when moving the projector between locations.

Product Specs

Display technology 0.65″ 1-chip DMD, 12 deg. LVDS, DDP2230
Resolution 1280 x 800 (total 1,024,000 pixels)
Colour Wheel 5seg. Color Wheel (R/G/B/W/Y)
Brightness (Maximum) 4000 ANSI lumens
Contrast 2000:1
Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.5:1) ,with Zoom Triger
Projection Lens f=20.6 ~30.1 mm, F=2.4-2.8,  (3.1-4.7m@100″)
Off set axis 4.4:-1 , Hd=0.39m up @100″
Picture Size 40″ ~ 300″ (100″=3.3m)
Source lamp* 280W / 3,000 hours (Normal mode)
230W / 5,000 hours (Low mode)
Computer compatibility 640 x 480(Expand)  – 1280 x 800(Real) – 1280 x 1024 (Compressed), Sync on green available
Video compatibility NTSC/ NTSC 4.43/ PAL (including PAL-M, N) / SECAM/ PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i(1125i 50Hz), (1080i(1250, 50Hz) is not available)

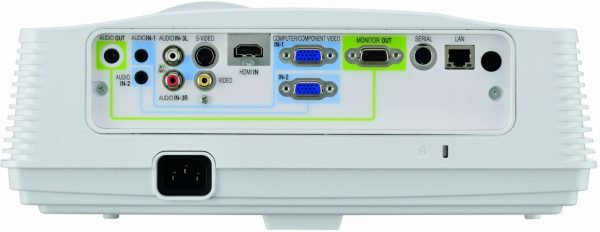

PC input terminals RGB:mini D-sub 15 pin x 2, HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm)
Video input terminals Composite RCA x 1, S-Video x 1; Audio: Stereo RCA x 1
Output terminals RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
Communication terminals RS-232C: 8pin x 1, LAN (RJ-45) x 1
Audio Speaker 10W Mono
Power consumption 390W, less than 1W in Power Standby mode (3W with network connection)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 29 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345 x 129 x 270mm (excluding all protrusions)
Weight 3.6 kg
Optional lamp VLT-XD600LP
Included accessories AC Power Cable, VGA (D-sub) Cable, Remote Control (with battery), Quick Start Card, User Manual, Safety Manual, Lens Cap, Lamp Replacement Tool, Soft Carry Case
