Epson EB-475W – WXGA (1280 x 800) 2600 ANSI Ultra Short-Throw


SKU: 106 Category:


Ultra bright. Ultra flexible. Ultra reliable. The best ultra-short throw projection technology just got a whole lot better, thanks to the latest innovations from Epson. Epson engineers have totally redefined the Ultra Short Throw market with a new shorter throw distance, higher brightness, and more flexible, user friendly mounting!


  • Ultra Short Throw – Minimal shadows and glare. Ideal for use with interactive whiteboards.
  • Ultra Bright Images – With a high brightness of 2,600 lumens White and Colour Light Output
  • Integrated Wall Mount Included – Stylish integrated design with extensive adjustability
  • Advanced Networking Capability – Enables users to monitor, control and present from a remote location
  • Broad Connectivity Including HDMI – HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
  • Lowest Epson Lamp Price Ever Seen – Incredibly low price of only $79 inc GST (RRP. Aust)
  • 16W Built-in Speaker – Built in audio with the power to fill a classroom


Upgrade to Ultra Short Throw
Capable of producing an interactive image size anywhere from 60” up to 102” diagonal (native WXGA) on nearly any wall, the Epson Ultra Short Range delivers an amazing work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with 2,600 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.

Total Ease of Installation

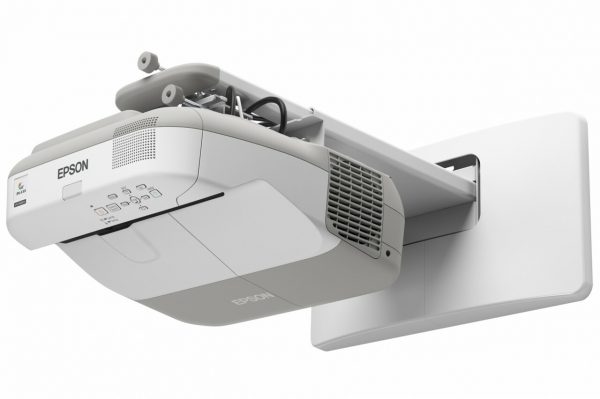

The EB-470, 475W, 480 and 485W come complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image-correction diagrams projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.

Optional Wireless Connection Including iPads
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Users can even project wirelessly from their iPad or iPhone thanks to Epson’s innovative iProjection app. This app is available now via the Apple® iTunes® store.

Advanced Networking
It’s possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.

Wireless Connectivity
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Low Cost of Ownership
The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP. This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.

Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for the EB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.





Product Specs

  Projector including 5m Power Cable, Remote Control, Batteries x 2, Projector Software Ver. 1.03b (CD ROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet.
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch with MLA
Zoom 1 – 1.35 (Optical Zoom)
Screen Size 60″ to 102″
Projection Distance 74.3″ screen 0.438m
Throw Ratio 0.27 (Zoom: Wide), 0.37 (Zoom: Tele)
Projection Lens F Number 1.80
Projection Lens Focal Length 3.71mm
Focus Method Manual Focus
Offset 6.0:-1
Colour Light Output 2,600 Lumens
White Light Output 2,600 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 3,000:1
Lamp Hours Normal/Eco: 3,000/4,000 Hours
Lamp Type 190W UHE
Keystone Correction Vertical: -5 to +5 degrees
Horizontal: -5 to +5 degrees
Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A Ver.2.0
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Optional
Output: Video D-sub 15 pin (monitor out black moulding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations No
USB Plug ‘n Play Yes
AV Mute Slide No
Instant Off Yes
Direct Power On/Off Yes

Kensington®-style lock provision
Padlock & Security cable hole
Wireless LAN unit lock
Password protect function

Colour Modes Dynamic, Theatre
Dimensions D x W x H 375 x 367 x 143mm
Weight 5.4kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal: 275W / Eco: 215W
Power Consumption: Standby 0.27W (communication off)
Noise Level Normal: 35dB / Eco: 28dB
