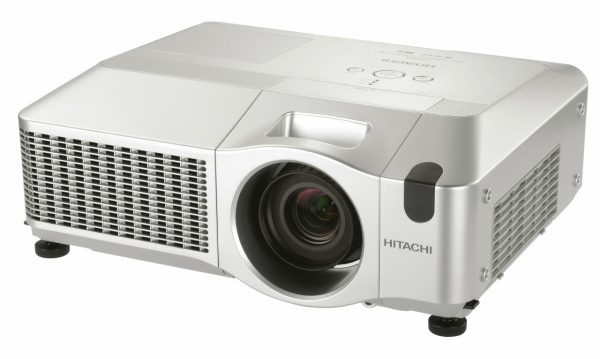

Hitachi CPSX635 – LCD SXGA+ (1400 x 1050) 4000 ANSI


SKU: 144 Category:


Deliver stunning presentations with this 4000 ANSI Lumen true SXGA+ (1400 x 1050) resolution projector. Not only does the CP-SX635 produce images with superior resolution, it offers network capability along with a host of other connectivity options, longer maintenance cycles and a range of optional lenses for the ultimate in flexibility and performance.

  • Brightness: 4000 ANSI Lumens
  • Resolution: SXGA+ (1400 x 1050)
  • Contrast ratio: 1000:1 (IRIS technology)
  • Hybrid Filter: 4000 hour cleaning cycle
  • Lamp life: 3000 hours (Eco Mode)*
  • 4 optional lenses
  • Full connectivity including HDMI
  • Wired networking feature

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Security featuresSecurity features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Optional LensesOptional Lenses – Installations are more flexible with a range of optional bayonet lenses. Choose from Fixed Short, Short, Long and Ultra Long throw lenses, designed to suit different requirements.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Quick On/OffQuick On/Off – Plug in, turn on and present. The Quick On/Off feature and automatic resolution equals fast set-up
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • Ultra QuietUltra Quiet – With a low noise level of 29dB in our latest models, the internal fan is one of the quietest in its class. The audience will hear the presenter, not the operating noise of the projector.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • Centralised Reporting FunctionCentralised Reporting Function – Using a single PC, create HTML reports for a group of networked projectors to simplify maintenance requirements.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Horizontal Keystone CorrectionHorizontal Keystone Correction – Correct misaligned images with horizontal keystone correction.
  • Progressive ScanProgressive Scan – Typically with moving images, each frame of video is shown in two halves – odd lines and even lines. Progressive Scan enables every line of a video frame to be displayed simultaneously resulting in crisp, smooth motion and reduced flicker and judder.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs


LCD Panel 0.79″ P-Si TFT x 3 with Micro Lens
Resolution SXGA+ (1400 x 1050)
Brightness Normal Mode 4000 ANSI Lumens
Eco Mode 3200 ANSI Lumens
Contrast Ratio 1000:1 (Iris On)
Lens Standard (2.2~2.7m@70″) F=1.7~2.1 f=24~29 mm
Throw distance ratio= 1.5~1.8:1 zoom X 1.2
FL-601 (Fixed short) (Only 1:1 lens shift) (1.2m@70″)
F=2.3, f=13mm
Throw distance ratio=0.8 x 1, zoom: x 1.0
SL-602 (Short) (1.8~2.9m@70″)
F=1.9~2.6, f=20~32mm
Throw distance ratio=1.2~2.0 x 1, zoom: x 1.6
LL-603 (Long) (2.9~5.8m@70″)
F=2.1~2.9, f=32~63mm
Throw distance ratio=2.0~3.9 x 1, zoom: x 2.0
UL-604 (Ultra long) (5.8~11.0m@70″)
F=2.2~3.1, f=63~117mm
Throw distance ratio=3.9~7.4 x 1, zoom: x 1.9
Manual Zoom, Manual Focus
Lamp 275W
Lamp Life 2000 (normal) / 4000 (eco)
Diagonal Display Size 60″ @ 1.8m, 30~350″ standard lens
Number Of Colour 10bit / Colour
Lens Shift (Optical Keystone) 1:1 to 9:1 upward shift(Manual lens shift) Horizontal(4:6~6:4) at vertical lens shift 1:1


Computer Compatibility IBM Compatible VGA, SVGA, XGA, SXGA+, UXGA compressed, MAC 16″
Video Compatibility NTSC / PAL / SECAM / PAL-M,N / NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p(720p@60Hz), 1125i(1080i@50 / 60Hz), 1125p(1080p@50 / 60Hz)
Plug & Play DDC2B


Audio Output 4W x 2
Other Other Freeze, Magnifying, Blank, Auto adjustment, Search, Mirror Reverse Image, Video noise reduction, Audio ports assign, Frame lock, Equalizing gamma correction, 2-3 pull down, Progressive Scan, Noise reduction, Auto vertical keystone, Manual horizontal keystone, MyScreen, My Memory, My Button, blackboard / whiteboard mode, Daytime mode, Input source naming (English), Resolution setting, Easy lamp replace from top, Easy filter change, Quick ON, Direct ON, Direct OFF, PIN-Lock, MyScreen PIN-Lock, Keypad Lock, Kensington slot, Transition detector
Security Bar
Security Label On Side
OSD Languages MENU: 17 Languages

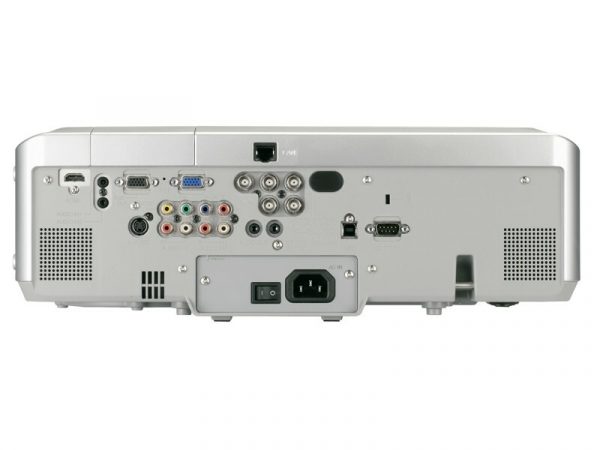

Computer Input 1 x 15-pin Mini D-sub
1 x HDMI
1 x BNC
Computer Output 1 x 15-pin Mini D-sub
Video Input 1 x RCA Jack
1 x S-Video Jack
3 x RCA Jack for Component
Audio Input 2 x Stereo Mini Jack
2 x Pair RCA (L / R) (Selectable on OSD)
Audio Output 1 x Stereo Mini Jack
Control And Mouse 1 x 9-pin D-sub for RS232 control
1 x USB type B for mouse control
Wired Network 1 x RJ-45


Power Supply 100-120V / 220-240V auto switching
Power Consumption 460W


Dimensions (W X H X D) 418 x 139 x 319mm (excluding feet and extrusions)
Weight 7.1Kg
Noise Level 35dB (Normal Mode) / 29dB (Eco Mode)
Air Filter Hybrid


  Lamp Indicator Light, Power Light, Ceiling Mount Image, Rear Projection Image,


  UL60950 / C-UL, FCC Part 15 Class A, CE, AS / NZS CISPR22 Class A


  Remote control with batteries, Computer cable, Power cord, User manual (detail & concise), Lens cap (& strap), Security label
