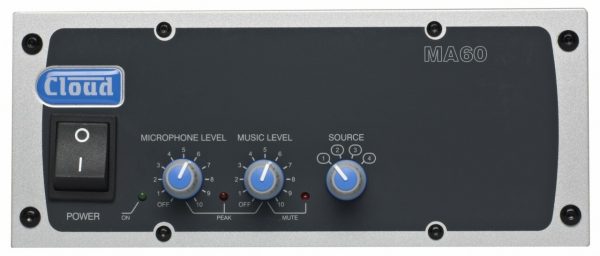

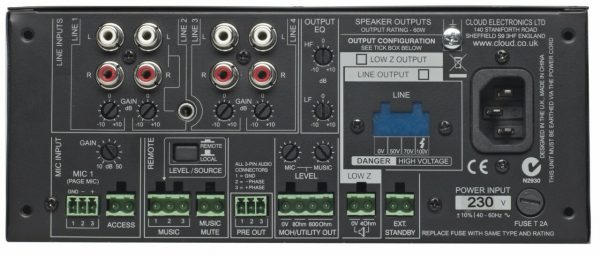

Modular Type MA60

$662.00

Compare
SKU: MA60 Category:

Description

Mixer amplifier, 60 Watts, Single-Zone Mixer Amp, 4 Ohms, MOH, Pre-Out & Standby, MIC Paging.

The MA60 is an exciting new development from Cloud.Electronics, combining for the first time the proven versatility of Cloud mixer-amplifiers in a single compact (2U, half-rack width) unit, and at a very competitive price point.

The MA60 will find many applications in the Retail,
Hospitality, Licensed Premises and other entertainment markets and is the most feature rich of the Utility Mixer/Amps on the market which also offers the best sound quality and the traditional Cloud reliable.

Single Zone, 60w, 4½ Output as Standard with Optional 50w, 70/100v Internal Transformer (CXL-50T).

Features

Four-input mixer-amplifier with integral 60w,
4½ mono power amplifier
Optional 70/100v Internal Transformer (CXL-50T)
Gain trims on all inputs
Electronically-balanced mic input
3.5 mm jack input (LINE 2) for MP3 player, laptop, etc.
Overall HF & LF EQ adjustment
Short-to-ground access connector or VOX-triggered paging on mic input
Selectable LINE 4 priority over other music inputs
Music Mute control input (NO or NC) for interface to emergency system
Compatible with standard Cloud remotes Ð RL-1 (music level) and RSL-4 (music level and source selection)
Electronically-balanced pre-amp output
Transformer-isolated auxiliary output
with independent mic and music level control – for use with telephone MOH systems
Aux output source selection (internal jumper) Ð fixed source or follow main output
Dimensions (mm) – 213.0 wide x 88 high (2U) x 278 deep
(+ connectors & knobs)
Optional Rack Kits (RE-S & RE-L)

Accessories

RL-1 & RL-1A Remote Music Level Control
RSL-4 Remote Music Source Selector
XLRF1 Female XLR Input Module
XLRM1 Male XLR Input Module
RE-S Rack Mounting Housing Kit
RE-L Rack Mounting Housing Kit
BOSE Loudspeaker EQ Card
CXL-60T 50w Toroidal Transformer
EQ Cards for Amina AIWX & LFiT Loudspeakers
RL-1B Remote Volume Level Control Plate in Black
RL-1W Remote Volume Level Control Plate in White
RSL-4B Remote Source / Volume Level Select Plate in Black
RSL-4W Remote Source / Volume Level Select Plate in White
RL-1MW Remote Volume Level Media Control Plate in White
PM1 Paging Microphones

Line inputs:

Frequency response:
Low-Z output: +0 dB/-1 dB from 20 Hz Ð 20 kHz (65 Hz filter out)
100/70/50 V-line outputs (with CXL-60T transformer fitted): +0 dB/-3 dB from 20 Hz Ð 20 kHz
(65 Hz filter switched out)
Distortion:
Low-Z output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth) High voltage output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth) Sensitivity: 195 mV (-12 dBu) to 2.0 V (+8 dBu) Input Gain control: 20 dB range Input impedance: 47k ohms Headroom: >20 dB
Noise: -93 dB 22 Hz Ð22 kHz, at speaker output, relative to full power

Microphone Inputs:

Frequency response:
Low-Z output: -3 dB @ 100 Hz (3rd. order filter); -1 dB @ 20 kHz
High voltage output: -3 dB @ 100 Hz (3rd. order filter); -2 dB @ 20 kHz
Distortion: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth) Gain range: 40 dB range Input Impedance: >2k ohms (balanced)
Phantom Power: 15 v, switchable per-input by jumpers
Headroom: >20 dB
Noise: -127 dB EIN 22 Hz – 22 kHz (150 W)

Outputs:

Output Power:
60 watts @ 1 kHz & <0.07% THD+N Low impedance output 50 watts @ 1 kHz & <0.07% THD+N 50/70/100V line outputs (optional transformer fitted) Equalisation: HF: ±10 dB/5 kHz LF: ±10 dB/100 Hz

Protection:
Dynamic level signal limiter max gain reduction of 20 dB, Thermal protection, IV limiting & short
circuit protection, Switch on delay

General:

Power input: 230 V, 115 V, 100 V versions available
Fuse rating: 230/120 V – T2A H
Fuse type: 20 mm x 5 mm
Cooling: Convection cooled, vents top and bottom.
Dimensions (mm): 213.0 wide x 88 high (2U) x 278 deep
(+ connectors & knobs)
Net weight (kg):
4.65 kg (with CXL-60T transformer)
3.5 kg (without CXL-60T transformer)

Additional information

Weight 1 kg
