NEC M300XG – LCD XGA (1024 x 768) 3000 ANSI

$1,102.00

Compare
SKU: 32 Category:

Description

Bright, versatile and virtually maintenance-free

Make presenting a pleasure, with the NEC M300XG, an eco-friendly portable projector, ideal for education and small-to-medium-sized business environments.

Offering excellent value, this 3000-lumen model produces remarkably bright, high-contrast images – and gives you the flexibility of wired and wireless (optional) networking, HDMI and USB inputs, and remote monitoring.

Energy-saving features

With its maintenance-free design, the NEC M300XG gives you up to 6000 hours of lamp life when you use it in ECO Mode™. It also has an active lens cover, which hides content, mutes audio and lowers lamp brightness to 25%, letting you to maximise the effectiveness of your presentations while minimising energy use.

NEC M300XG at a glance

  • HDMI input, connecting you to high-definition sources
  • USB Viewer, letting you present without a PC using a USB flash drive
  • variable audio-out, allowing the remote control to adjust the volume of self-powered external speakers connected to the projector
  • ECO Mode™ technology, helping extend lamp life and lowering power consumption
  • integrated active lens cover that mutes audio and video while lowering the lamp power to 25% to conserve energy
  • integrated RJ-45 and/or wireless LAN (optional), connecting quickly to the LAN for control or image transmission
  • dual computer inputs for quick switching between presentations
  • virtually maintenance-free design, including improved 6000-hour filter life

Product Specs

Display

3 x 1.6 cm (0.63″) p-Si LCD Panel with MLA

Native Resolution

1024 x 768 (XGA)

Aspect Ratio

4:3

Brightness

3000 ANSI Lumens (approx. 80% in Eco Mode )

Contrast Ratio

2000:1

Lamp

180 W AC (145 W AC Eco Mode )

Lamp Life [hrs]

5000 (6000 Eco Mode )

Lens

F= 1.7–2.2, f= 17.5–29 mm

Projection Factor

1.3 – 2.2 : 1

Projection Distance [m]

0.6 – 13.8

Screen Size (diagonal) [cm]

Minimum: 63.5 / 25″ ; Maximum: 762 / 300″

Zoom

Manual

Focus Adjustment

Manual

Supported Resolutions

1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1360 x 768 (WXGA); 1280 x 1024 (SXGA); 1280 x 960 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21″); 1152 x 870 (MAC 21″); 1152 x 864 (XGA); 1024 x 768 (XGA); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (DVD progressive); 720 x 480 SDTV 576p/576i; 720 x 480 (SDTV 480p); 720 x 480 (DVD progressive); 640 x 480 (VGA/MAC 13″)

Frequency

Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

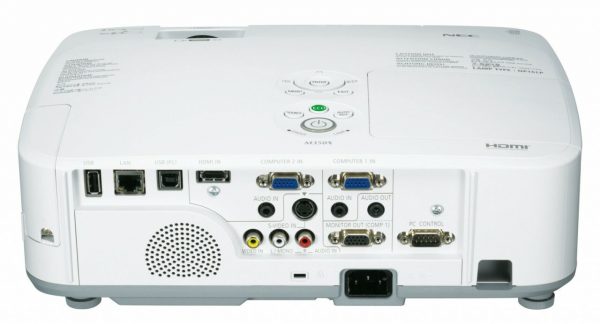

RGB (analog)

Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin

HDMI™

Input: 1x HDMI® (Deep Color, Lip sync)

Video

Input: 1 x RCA

S-Video

Input: 1 x Mini DIN 4-pin

Audio

Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)

PC Control

Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN

1 x RJ45

USB

1 x Type B; 2 x Type A (USB 2.0 high speed)

Video Signals

PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M

Remote Control

AV Mute; Aspect Ratio; Audio Control; Auto Adjust; Digital Zoom; Freeze; Help Eco Mode ; ID set; Picture Adjust; Picture Mode; Presentation and Mouse Control; Source Select

Power Supply

100-240 V AC; 50 – 60 Hz



Power Consumption [W]

239 (Normal) / 193 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)




Dimensions (W x H x D) [mm]

339 x 99 x 257 (without lens and feet)

Weight [kg]

2.9

Fan Noise [dB (A)]

27 / 34 (Eco / Normal)

Operating Temperature [°C]

5 to 40



Operating Humidity [%]

20 to 80



Storage Temperature [°C]

-10 to 50



Storage Humidity [%]

-20 to 80




Optional Accessories

Lamp (NP15LP); Wireless LAN module (NP02LM2)

Safety and Ergonomics

CE; EuP; TÜV GS; RoHS ; TCO; Gost-R



Speakers [W]

1 x 10 (mono)




Warranty

5 years limited warranty inc parts and labour, lamp: 6 months or 2000 hours



Shipping Contents

IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Utility software; Security Sticker; Soft Case; Users Manual on CD-ROM; Quick Setup Guide
