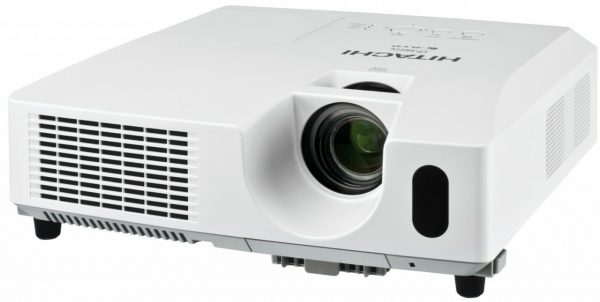

Hitachi CPX4011N – LCD XGA (1024 x 768) 4000 ANSI

$1,334.00

Compare
SKU: 151 Category:

Description

At the heart of the Hitachi philosophy is innovation. Our new Multi Purpose projector range brings together the finest features for business and education. Whichever model you choose, you’ll find top-of-the range picture quality, security and networking, in a user-friendly package. Hitachi is dedicated to lowering costs and protecting the environment, so the range also features longer-life parts and energy-saving settings.

  • Brightness: 4000 ANSI Lumens
  • Resolution: XGA
  • Contrast Ratio: 2000:1
  • Hybrid Filter – 6000 Hour Filter Cleaning Cycle
  • Lamp life: 6000 hours (Eco Mode)*
  • Advanced networking features
  • Full Connectivity
  • 16W Speaker

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Super Hybrid FilterSuper Hybrid Filter – The new Super Hybrid Filter is the best you’ll find on the market. It lasts an exceptional 6000 hours – to make maintenance less frequent and reduce replacement costs.
  • Security featuresSecurity features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Low TCOLow TCO – Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • AMX Device DiscoveryAMX Device Discovery – When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Template FunctionTemplate Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
  • Virtually Maintenance FreeVirtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • Ultra QuietUltra Quiet – With a low noise level of 29dB in our latest models, the internal fan is one of the quietest in its class. The audience will hear the presenter, not the operating noise of the projector.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • MessengerMessenger – Send text messages and announcements to multiple, networked projectors at the same time. This is ideal for projecting daily work schedules and university campus notifications to multiple classrooms simultaneously.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Progressive ScanProgressive Scan – Typically with moving images, each frame of video is shown in two halves – odd lines and even lines. Progressive Scan enables every line of a video frame to be displayed simultaneously resulting in crisp, smooth motion and reduced flicker and judder.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs

OPTICAL

Resolution XGA (1024×768)
Brightness 4000 ANSI Lumens (Normal Mode)
2700 ANSI Lumens (Eco Mode)
Contrast Ratio 2000:1
Lens Manual Focus, Manual Zoom x 1.2
Lamp Life 3000 hours (Normal Mode) / 6000 hours (Eco Mode)*
Diagonal Display Size 30~300″ (76~762cm)
Keystone Correction Fixed, 9:1 upward shift
Distance To Width Ratio (:1) 1.5 (WIDE), 1.8 (TELE)

COMPATIBILITY

Computer Compatibility IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA compressed, MAC16″
Composite/S-Video NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43/PAL60
Component Video SDTV: 480i, 480p, 576i, 576p HDTV: 720p(@50/60Hz), 1080i(@50/60Hz), 1080p(@50/60Hz)
HDMI Video Signal: 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
Plug & Play DDC2B

FEATURES

Speakers 16W Mono
Basic Functions Freeze, Magnifying, Blank, Auto adjustment, Search, Page UP & DOWN (for USB mouse function)
Picture Adjustments Equalizing Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction
Digital Keystone Auto V keystone ±30 degrees (@ XGA 60Hz)
Advanced Features MyScreen, My Memory, Blank/My Button, My Text, My Source, blackboard/whiteboard mode, Daytime Mode, Input Source Naming (English), resolution setting, Template, Closed Caption (for NTSC & component 480i only), Audio pass through
Outward Easy lamp replace from top, Air filter slides towards front side or top
Power On & Off Quick On, Direct On, Auto Off
Security Systems Security bar, PIN-Lock, MyScreen Password, Keypad-Lock, Kensington slot, Transition detector, My Text, Security label
Network Configure and control projector via web browser, receive alerts via e-mail, projector management via SNMP, Scheduling, My Image, displaying text data transferred via the network, Command Control via network, AMX Device Discovery, PJ Link™, Network Bridge

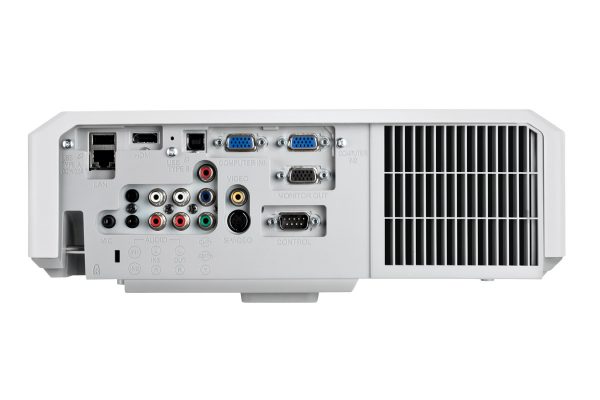

CONNECTIONS

Digital Input 1 x HDMI
Computer Input 2 x 15-pin Mini D-sub
Computer Output 1 x 15-pin D-sub
Video Input 1 x RCA for component
2 x Component D-sub (shared with analogue RGB)
1 x RCA for composite
1 x Mini-DIN for S-Video
Audio Input 2 x Stereo Mini Jack
1 x pair RCA (L/R)
1 x Microphone Jack (Stereo Mini)
Audio Input 2 x Stereo Mini Jack
1 x pair RCA (L/R)
1 x Microphone Jack (Stereo Mini)
Audio Output 1 x pair RCA (L/R)
Control 1 x 9-pin D-Sub for RS-232C Control
USB Type A/Type B Yes (PC less presentation)/Yes (USB mouse)
Network 1 x RJ-45

POWER

Power Supply 100-120V / 220-240V auto switching
Power Consumption/Standby 310W/

PHYSICAL

Dimensions (WxHxD) 317x98x288mm (excluding feet and extrusions)
Weight 3.5Kg
Noise Level 36dB (Normal Mode)/29dB (Eco Mode)
Air Filter Super Hybrid

MISCELLANEOUS

  Indicator lights (lamp, temp, power), Ceiling mount image, Rear projection image, Serial number label on side

ACCESSORIES SUPPLIED

  Remote control with batteries, Computer cable, Power cord, Lens cap, Security label, User manual (detail & concise), Application software for LAN display
Remote Control HL02483

OPTIONAL ACCESSORIES

Replacement Lamp DT01021
Lamp Wattage 210W UHB

WARRANTY

Projector Warranty 3 Years
Lamp Warranty 6 Months**
  *The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps should achieve this figure.
  **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated).
