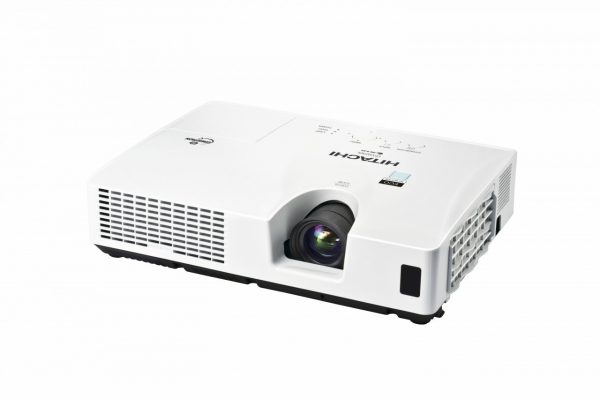

Hitachi CPX3021WN – LCD XGA (1024 x 768) 3200 ANSI

$1,008.00

Compare
SKU: 153 Category:

Description

Designed for mobile business professionals, Hitachi’s compact and light weight CP-X3021WN portable projector delivers a superb high contrast image. With wireless network capabilities and simple user functionality users can set up their presentations in seconds.

  • Brightness:
    Normal Mode – 3200 ANSI Lumens
    Eco Mode – 2000 ANSI Lumens
  • Resolution: XGA (1024 x 768)
  • Contrast Ratio: 2000:1
  • Hybrid Filter: 5000 hour cleaning cycle
  • Lamp life: 5000 hours (Eco Mode)*
  • Networking Capabilities
  • Full Connectivity

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • Wireless NetworkingWireless Networking – Wireless networking offers quick, easy and secure network access. Browser based software provides easy management, control and monitoring of networked projectors.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.

Product Specs

General

  • Width : 30.6 cm
  • Depth : 22.1 cm
  • Height : 7.7 cm
  • Weight : 2.3 kg
  • Device Type : LCD projector
  • Built-in Devices : Speaker

Expansion / Connectivity

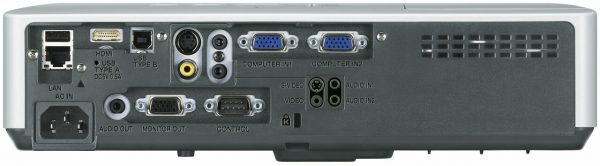

  • Interfaces : 2 x component video / RGB input – 15 pin HD D-Sub (HD-15)
    1 x RGB output – 15 pin HD D-Sub (HD-15)
    1 x S-video input – 4 PIN mini-DIN
    1 x composite video input – RCA
    1 x serial RS-232C – 9 pin D-Sub (DB-9) ( management )
    2 x audio line-in – mini-phone stereo 3.5 mm
    1 x audio line-out – mini-phone stereo 3.5 mm
    1 x USB – 4 PIN USB Type B ( management )
    1 x network – RJ-45
    1 x USB – 4 PIN USB Type A
    1 x HDMI – 19 pin HDMI Type A

Manufacturer Warranty

  • Service & Support : 3 years warranty
  • Service & Support Details : Limited warranty – 3 years
    Limited warranty – lamp – 6 months / 5000 hours

Networking

Miscellaneous

  • Compliant Standards : UL, CISPR 22 Class B, cUL, FCC Part 15 B, RoHS, GOST-R
  • Cables Included : 1 x VGA cable
  • Included Accessories : Lens cover
  • Security Features : Security lock slot (cable lock sold separately), PIN code, security bar, security label

Power

  • Power Device : Power supply – internal
  • Voltage Required : AC 120/230 V ( 50/60 Hz )
  • Power Consumption Operational : 310 Watt
  • Power Consumption Operational ( Standby ) : 0.4 Watt

Software / System Requirements

  • Software Included : Drivers & Utilities

Environmental Parameters

  • Sound Emission : 35 dB
  • Min Operating Temperature : 5 °C
  • Max Operating Temperature : 35 °C
  • Sound Emission (Economic Mode) : 28 dB

Video Input

  • Analogue video Signal : RGB, S-Video, composite video
  • Analogue Video Format : NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
  • Digital Video Standard : High-Definition Multimedia Interface (HDMI)
  • LAN and Wireless Image Transferring Protocols : Wired LAN
  • Video Modes : 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i

Audio Output

  • Type : Speaker(s) – integrated
  • Sound Output Mode : Mono
  • Speaker(s) : 1 x mixed channel
  • Output Power / Channel : 1 Watt

Input Device

  • Type : Remote control – external – wireless

Projector / Panel

  • Features : High-bandwidth Digital Content Protection System (HDCP), USB host function, 3LCD Technology, Pixelworks DNX, Crestron RoomView, AMX Device Discovery
  • Max Sync Rate (V x H) : 120 Hz x 106 kHz
  • Throw Ratio : 1.5 – 1.7:1
  • Image Brightness : 3200 ANSI lumens
  • Image Contrast Ratio : 2000:1
  • Image Size : 76 cm – 762 cm
  • Display Format : 786,432 pixels
  • Bulb type : UHP 210 Watt
  • Projection Distance : 0.9 m – 10.7 m
  • Resolution : XGA – XGA (1024 x 768)
  • Bulb life cycle : 3000 hour(s) / 5000 hour(s) (economic mode)
  • Image Brightness (Reduced) : 2000 ANSI lumens
  • Native Aspect Ratio : 4:3
  • Controls & Adjustments : Keystone correction

Video Output

  • Analogue Video Signal : RGB

Projector Lens System

  • Zoom Factor : 1.2x
  • Vertical Keystone Correction : -30 / +30
  • Zoom Type : Manual
  • Keystone Correction Direction : Vertical
