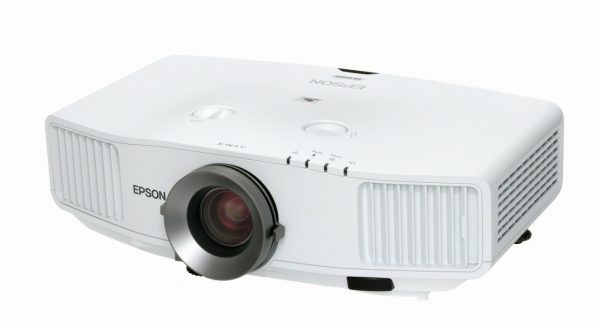

Epson EB-G5450WU – LCD WXGA (1280 x 800) 4000 ANSI

$0.00

Compare
SKU: 85 Category:

Description

Feature rich and offering a choice of five lenses ranging from Rear Projection through Long Throw, the Epson EB-5450WU is perfect for custom installations. Producing an impressive 4,000 lumens Light Output and 4,000 lumens Colour Light Output in WXGA resolution the EB-G5450WU further enhances on Epson’s reputation for high performance projectors for high end installation environments.

KEY FEATURES:

  • C2Fine Technology – Featuring advanced vertical alignment technology, provides high contrast for deeper blacks and vivid images
  • DICOM Simulation Mode – Specialised imaging uses standardised greyscale to reproduce medical images such as x-rays for medical training and education
  • Multi-PC Projection – Allows up to four computers to simultaneously project via the network with a four way split screen
  • Crestron RoomView Compatibility – Extends ROI for users who have already invested in Crestron RoomView to control and manage Epson projectors over a network, as well as other compatible projectors
  • Monitor and Control – Network monitoring, maintenance scheduling and email alerts via LAN
  • Broad Connectivity – HDMI, VGA x2, Audio in x2, Hardwire remote, 5 BNC, Monitor out, RS-232 and optional wireless.



FEATURES AND BENEFITS:

Amazing Image Quality
In the new G-Series, Epson’s engineers have built upon Epson’s World leading Home Cinema heritage to deliver unparalleled image quality. This is thanks to Epson’s famous C2Fine LCD panels. Featuring advanced vertical alignment technology, C2Fine panels provide high contrast for deeper blacks and vivid images. And because they’re 3LCD, you know that colour reproduction is second to none, and your image will be crisp and vibrant.

Wide Ultra XGA (WUXGA)
When image quality is paramount, the EB-G5450WU stands out from the crowd. Wide Ultra XGA is a resolution greater than that of Full High Definition 1080p. With 1,920 x 1,200 pixels, you not only see more, you enjoy amazing image quality surpassing High Definition. Colour gradations are smoother, image details are clearer, and the impact on your audience is amazing!



Multi PC Projection
Multi PC projection enables users to connect and display up to four PCs simultaneously via the network with a four-way split screen. An additional 12 PCs can connect in standby. Which PCs are displayed at any one time is easily controlled with simple drag and drop functionality. With Multi PC projection, workgroup tele-meetings with remote members can now deliver collaboration results like never before!

It’s also possible to display content from two inputs simultaneously without the need for a network. Watch video via HDMI and view a presentation via VGA for an instant video conference.

Monitor and Control via the Network
Monitoring and controlling a G-Series projector is possible over a network, enabling the network manager to obtain projector information, monitor projector status, and control functions such as power on and off, change sources and even update firmware from a remote location. The Epson G-Series is also compatible with Crestron RoomView, meaning complete integration is possible if you have already invested in this infrastructure.

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing, and transmitting information in medical imaging, which includes a file format definition and a network communications protocol. The DICOM simulation mode in the G-Series can reproduce images with gray level very close to DICOM Part 14 (Grayscale Standard Display Function). This mode is ideal for viewing grayscale medical images such as X-ray pictures for training and education in the medical institutions.

New Test Patterns for Precise Installation
With the new G-Series range there is no need to connect an image source when setting up the image parameters thanks to the included test patterns.

Product Specs

PRODUCT TYPE Portable Multimedia Projector
PRODUCT NAME Epson EB-G5450WU
PRODUCT CODE V11H346053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.76 inches with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 2,304,000 pixels (1920 x 1200 x 3)
  Native resolution WUXGA
  Aspect ratio 16:10
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Manual: zoom / focus
(Specification for ELPLS05 standard lens. Sold separately.) F-number 1.65 – 2.55
  Focus length 21.28 – 37.94mm
  Zoom ratio 1:1.8
PROJECTION LAMP Type E-TORL 275 W UHE
  Optical System Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE) 50 to 300 inch [1.36m to 8.38m] (Zoom: Wide),
50 to 300 inch [2.46m to 14.99m] (Zoom: Tele)
100″ screen 2.76m – 4.97m
LENS SHIFT RANGE
  MANUAL Vertical +/-58% max
(upward / downward)
    Horizontal +/-9% max
(left / right)
BRIGHTNESS
  High Brightness Mode 4,000 Lumens Light Output
4,000 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 3,200 Lumens Light Output
3,200 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 1000:1
BRIGHTNESS UNIFORMITY 88%
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker) 7W monaural
FUNCTION Pointer, User Logo, A/V mute, Freeze, E Zoom, Test Pattern
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
PIXEL CLOCK 13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input signal / Sync / Tracking / Position / Color temperature / Volume etc
FOOT ADJUSTER Front-centre / Rear side
TILT ANGLE -2.5  to 10 degrees
KEYSTONE CORRECTION Vertical: +/- 30 degrees (Zoom: Tele)
Horizontal: +/- 20 degrees (Zoom: Tele)

QUICK CORNER

Yes
SOURCE SEARCH              Yes
AUTO DETECTION OF RGB YCbCr Yes
MULTI SCREEN COLOUR ADJUSTMENT Yes
OPERATION PANEL PROTECTION Yes
PASSWORD PROTECTED Yes
HIGH ALTITUDE MODE Yes
COLOUR MODE PC: Photo, Presentation, Theatre, Dynamic , sRGB, DICOM SIM, Customized
Video: Sports, Presentation, Theatre, Dynamic , sRGB, Customized
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1920 x 1200 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
VIDEO INPUT TERMINAL Video D-sub 15pin x1 Blue molding
5-BNC x1
  Audio Stereo mini-jack x 2
OUTPUT SIGNAL Signal Type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2-0.4 Vp-p)
OUTPUT TERMINAL Video D-sub 15pin x 1 Black molding
  Audio Stereo mini-jack x 1
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47Kohm
VIDEO INPUT TERMINAL Video

Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding x 2
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin 2 x Blue-moulding
(in common with Analog RGB connector)

  Audio

RCA (White/Red) x 1pair
(for Composite Video and S-Video)

HDMI
INPUT SIGNAL Video standard
Video signal
480i/576i/480p/576p/720p/1080i/1080p
TMDS ( signal for HDMI )
INPUT TERMINAL Audio signal
Video
Linear PCM
HDMI x 1 (HDCP)
DVI-D
INPUT SIGNAL Video standard
Video signal
480i/576i/480p/576p/720p/1080i/1080p
500 mVrms / 47 k-ohm
INPUT TERMINAL Video DVI x 1 (HDCP)
CONTROL I/O
Serial I/O I/O Terminal D-sub 9 pin x 1
  I/O Signal RS-232C
Remote Control Input I/O Terminal Stereo mini jack x 1
  I/O signal Epson Format
NETWORK I/O
USB I/O Type Type A x 1
  Wireless LAN unit Optional
  Wired LAN RJ45 x 1
Wireless Specification Supported speeds for each mode IEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11a: 54Mbps

• Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

  Supported mode Adhoc, infrastructure
  Certification Wi-Fi Certified
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F), (20% – 80% Humidity unfrozen)
Thermal shutdown > 45 degree C
  0°C to 35°C (32°F to 95°F), (over 1500m with high altitude mode, High brightness)
OPERATING ALTITUDE 0m to 3000m < 0ft to 9843ft >
(over 1500m / 4,921ft with high altitude mode)
DIRECT POWER ON Yes
DIRECT POWER OFF Yes
COOL-DOWN PERIOD Instant Off
THEFT PROOF
  Wireless LAN Unit Lock Yes
  Security Cable Yes
  Kensington Lock Yes
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION
  Lamp On 393W
  Stand by ( network on ) 11W
  Stand by ( network off ) 0.47W
DIMENSION
EXCLUDE FEET 311.5mm(D) x 470mm(W) x 135mm(H)
MAXIMUM DIMENSION 311.5mm(D) x 470mm(W) x 151.5mm(H)
WEIGHT Approx. 6.8Kg
FAN NOISE
HIGH BRIGHTNESS MODE
