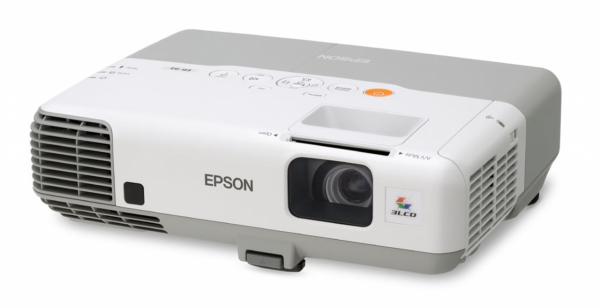

Epson EB-915W – WXGA (1280 x 800) 3200 ANSI

$1,176.00

Compare
SKU: 99 Category:

Description

Powerful and easy to use, this projector offers low cost of ownership, and ease of maintenance. Beautiful crisp, clear images make the EB–915W is the ideal choice for use in a wide variety of Corporate and Education environments.

FEATURES AND BENEFITS:

  • Powerful 3,200 Lumens Light + Colour Light Output – The EB-915W is capable of being used in bright environments such as classrooms and offices.
  • Wide Ranging Connectivity – The projector has a high level of connectivity allowing you to input a wide range of devices including HDMI, LAN, mic and VGA.
  • 1.6x Zoom Lens – Enabling installation in a wide range of mount placements
  • Network Functionality – Operate and monitor from a remote location
  • Long Life Lamp – Extends maintenance cycles and reduces the total cost of ownership
  • Wireless Connections – Free the room from complicated cables, allowing you to transmit both sound and images



Light + Colour Light Output of 3,200 lumens – The Epson EB-915W is capable of producing a bright image of up to 3,200 Lumens Light + Colour Light Output. With this powerful projector you don’t have to dim the lights or close the windows in order to see a bright, clear image.

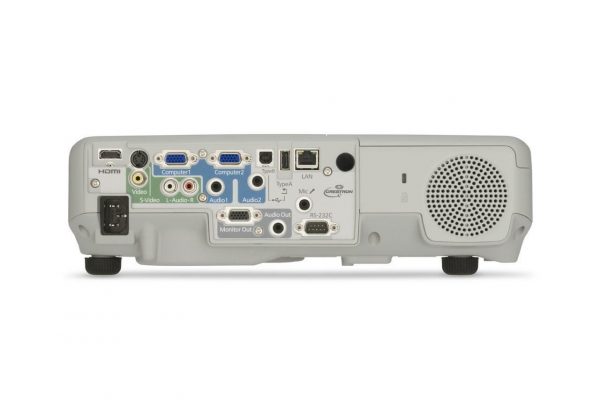

Wide Ranging Connectivity – The EB-915W is very versatile in the classroom or office, featuring a host of input options. The units boast a HDMI, Video, S-Video, 2x VGA, USB A & B, Mic, RS232C, Monitor Out, Audio In + Out, and LAN inputs.
Easy integration and advanced connectivity features allow you to evolve your classroom or office as you incorporate additional technology. This projector can also be connected directly to the Epson DC06 to help facilitate effective presentations and lessons without the need for a PC.

1.6x Zoom Lens – The high level zoom of the EB-915W provides installation flexibility, allowing the unit to be placed in a wide range of mount placements. This feature could allow you to mount the new projector unit in pre-existing mounts, avoiding the cost and time of setting up a new mount to suit the projector.

Network Functionality – With Epson Network monitoring and control software (Easy MP monitor), a single PC allows you to see which projectors are available and if they are running efficiently, even across the largest of networks. This series can be configured remotely, and you can receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.

Long Life Lamp – Lamp life for the EB-915W has an impressive 5,000 hours in high brightness mode or an amazing 6,000 hours in low brightness mode. We even back our lamps with a full 12 month, 750 hour* lamp warranty giving you the peace of mind. By the time you need to change the lamp in any of these products, you may have changed up to 2.5 lamps if you had used a competitor’s product from this category.

Maintaining the EB-915W is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent.
*Which ever comes first

Wireless Connectivity – With the addition of the ELPAP07 Wireless LAN Unit, the EB-915W becomes a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Product Specs

PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.59 inches with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 1,024,000 pixels (1280 x 800) x 3
  Native resolution WXGA
  Aspect ratio 16:10
  Pixel arrangement Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Manual zoom / focus
  F-number 1.51 – 1.99
  Focal length 18.2mm – 29.2mm
  Zoom ratio 1.0 ~ 1.6 Digital
LAMP Type 230W UHE E-TORL
  Life (estimated) 4000Hr# (High bright), 6000Hr# (Low bright)
# Subject to operation and environmental conditions.
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 29 to 280 inch [0.84 to 8.4m] (Zoom: Wide)
29 to 280 inch [1.36 to 13.9m] (Zoom: Tele),
BRIGHTNESS
  High Brightness Mode 3,200 Lumens Light Output
3,200 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide)
  Low Brightness Mode 2,240 Lumens Light Output
2,240 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide)
CONTRAST 2,000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY 89% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY 3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (2-2, 3-2 film detection)
SOUND OUTPUT 16W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK 13.5MHz to 162MHz
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
TILT ANGLE 0 to 11 degrees
KEYSTONE CORRECTION Vertical: +/-30 degrees
Horizontal: +/-30 degrees
AUTO KEYSTONE CORRECTION Vertical: +/-30 degrees
PASSWORD PROTECTED FUNCTION
(security function)
Implemented
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1,280 x 800 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
INPUT TERMINAL Video Video D-sub 15pin x 2 (Blue moulding)
  Audio Stereo mini jack x 2
OUTPUT SIGNAL Video Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 – 0.4Vpp)
OUTPUT TERMINAL Video D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
  Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin x 2 (Blue moulding)
MIC
Input Signal Audio -50dBV to -40dBV (0dB=1V/Pa,1kHz) (TBD)
Input Terminal Audio Stereo mini jack (Plug in power is available)
CONTROL I/O
SERIAL I/O Terminal D Sub 9 pin x 1
  Signal RS-232C
EASY MP
FUNCTION ESC/VP.net
  E-mail notification
  SNMP
  Web control
  PJ-Link
  AMX Device Discovery
  Crestron Room View
  Message Broadcast
PC FREE File Browser
  Still Image JPG; Thumbnail
  Slideshow
WIRELESS Connectivity 802.11 b/g/n With optional wireless adapter
SECURITY (Wireless LAN) WEP (64bit/128bit)
  WPA-PSK (TKIP/AES)
  WPA2-PSK(TKIP/AES)
SOFTWARE EMP Monitor (for Windows) Epson IP Link Projector Control (for Windows)
  NS Connection For wireless connectivity (Win & Mac OSX)
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity )
COOL-DOWN PERIOD “Instant off”
START-UP PERIOD Approx. 7 seconds (warm up 30 seconds)
DIRECT POWER ON Yes
DIRECT POWER OFF Yes
DIMENSION
EXCLUDE FEET 263(D) x 345(W) x 93(H) mm
MAXIMUM DIMENSION 263(D) x 345(W) x 106(H) mm
WEIGHT Approx. 3.13kg
FAN NOISE
HIGH BRIGHTNESS MODE 33dB
LOW BRIGHTNESS MODE 28dB
WARRANTY
STANDARD WARRANTY 3 years*
*excluding lamp

ACCESSORIES
POWER CORD 3m
COMPUTER CABLE 1.8m, D-sub 15pin (Male) – Mini D-sub 15pin (Male)
REMOTE CONTROL Included
PASSWORD PROTECT STICKER Included
AIR FILTER Included
OWNER’S MANUAL CD-ROM
