C-Series Triple Bay Lecterns

$5,095.20$5,228.30

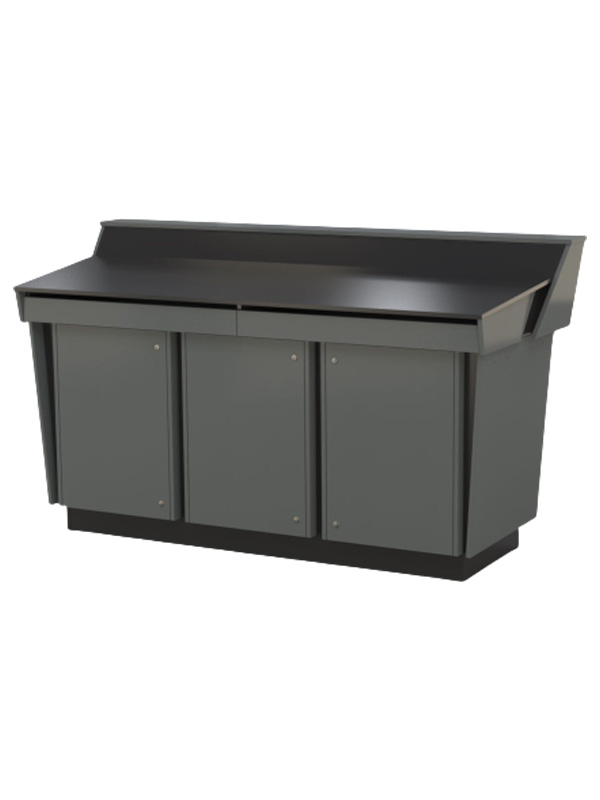

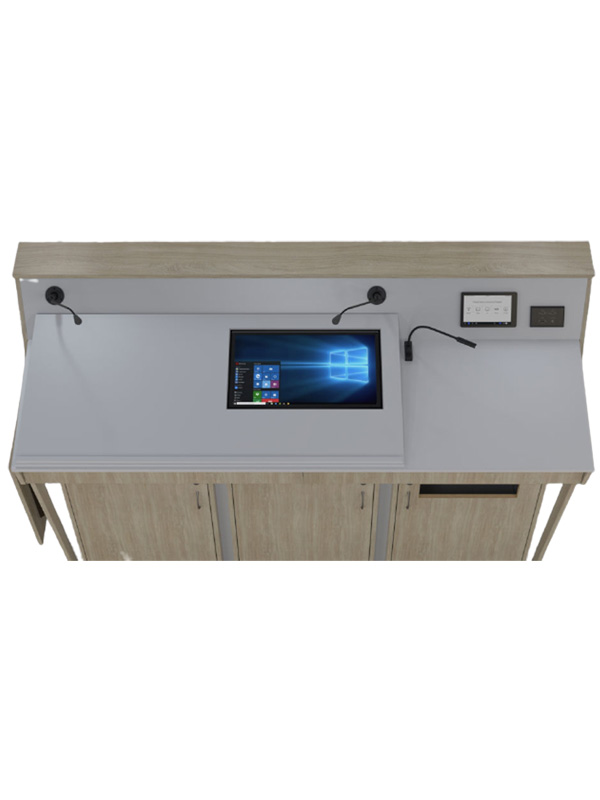

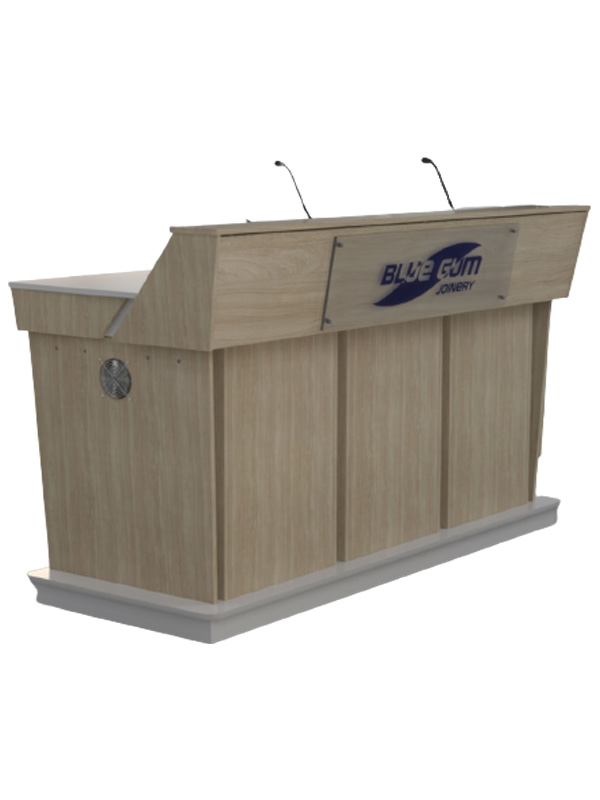

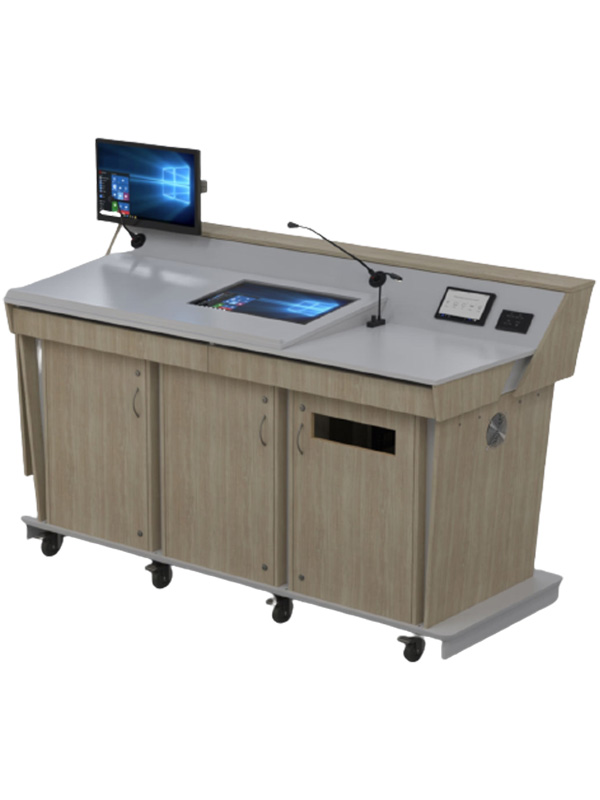

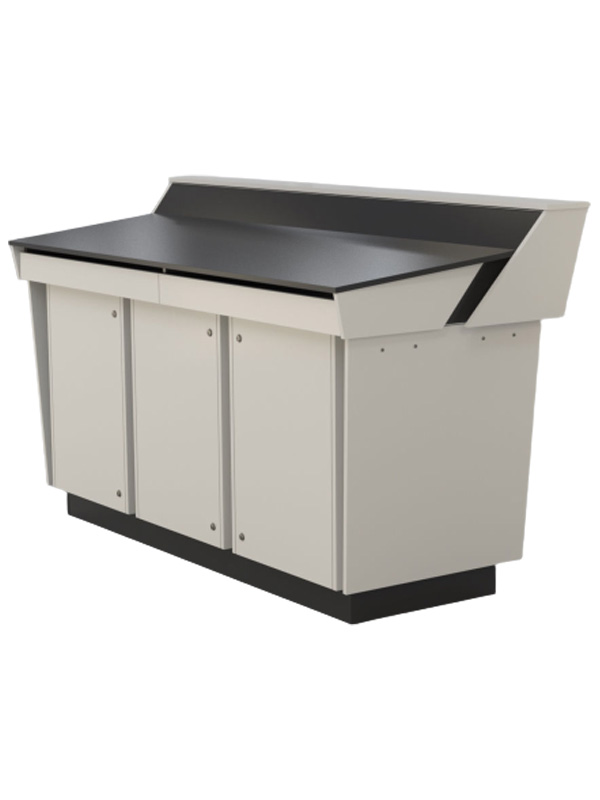

⦿ The C-Series triple bay lectern is a three-door wide lectern with pull-out keyboard drawers and angled data panel to house touch screens, power/data points, etc.
⦿ The top has been designed so that the angled “data panel” and work surface can be made at any angle, allowing for flexibility in touch panel sizes.

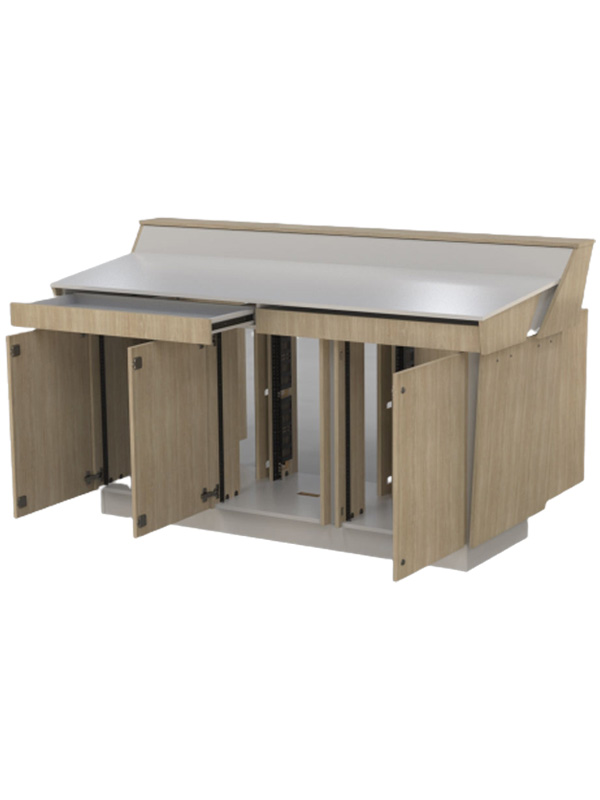

⦿ C-Series triple bay lecterns come standard with RU rack stripping, lockable/ removable hinged door, and service panel.
⦿ C-Series internal width is correct for 19inch rack stripping and has panels for fixing of cables at the rear.
⦿ Dimension X in the following drawings can be changed to suit the various size touch panels or power/data points you plan to use (affects lectern overall height
⦿ C-Series triple bay lecterns come fully assembled.

Clear
Compare
SKU: Lecternsales-1006 Categories: , ,

Description

Lectern Options
The below optional extras are available at an additional cost. If you would like us to discuss different options, Please call 1300 669 235 or email us at sales@audiovisualsales.com.au we would be happy to put together a formal quote for you.

Triple bay lecterns in Australia

Triple bay lecterns in Australia

Order Codes and specifications

BGL-TM03A

Triple bay with Angled work surface

Internal height: 712mm (16ru)
Internal width: Suits 19inch rack strip
Internal depth: 600mm – See drawing to right for rack strip positions
Worksurface height (to lowest edge): 947mm – Can vary depending on angles
Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions: 1152mm high * 2011mm wide * 840mm deep

Triple bay with Angled work surface

BGL-TM03F

Triple bay with Flat work surface

Internal height: 712mm (16ru)
Internal width: Suits 19inch rack strip
Internal depth: 600mm – See drawing to right for rack strip positionsWorksurface height (to lowest edge): 947mm – Can vary depending on angles
Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions: 1152mm high * 2011mm wide * 840mm deep

Triple bay with Flat work surface

BGL-TM03LA

Triple bay with LEFT hand angled work surface

Internal height: 712mm (16ru)
Internal width: Suits 19inch rack strip
Internal depth: 600mm – See drawing to right for rack strip positions
Worksurface height (to lowest edge): 947mm – Can vary depending on angles
Dimension X on drawing to right can be modified to suit your equipment.

​Overall Dimensions: 1152mm high * 2011mm wide * 840mm deep


Triple bay with LEFT hand angled work surface

BGL-TM03RA

Triple bay with RIGHT hand angled work surface

Internal height: 712mm (16ru)
Internal width: Suits 19inch rack strip
Internal depth: 600mm – See drawing to right for rack strip positions
Worksurface height (to lowest edge): 947mm – Can vary depending on angles
Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions: 1152mm high * 2011mm wide * 840mm deep

Triple bay with RIGHT hand angled work surface

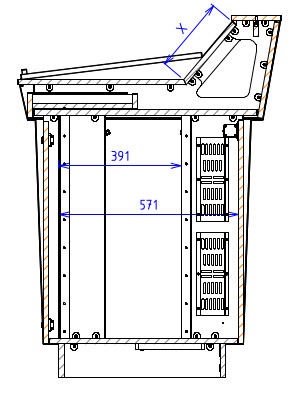

BGL-TM03MA

Triple bay with MIDDLE angled work surface

Internal height: 712mm (16ru)
Internal width: Suits 19inch rack strip
Internal depth: 600mm – See drawing to right for rack strip positions
Worksurface height (to lowest edge): 947mm – Can vary depending on angles
Dimension X on drawing to right can be modified to suit your equipment.

​Overall Dimensions: 1152mm high * 2011mm wide * 840mm deep

Triple bay with MIDDLE angled work surface

Additional information

C-Series Triple Bay Lecterns Options

BGL-TM03A, BGL-TM03F, BGL-TM03LA, BGL-TM03RA, BGL-TM03MA

Colour

Gunmental Grey, Aged Walnut, White
