Basic Mixer Amp – PA-600

$1,063.00

Compare
SKU: PA-600 Category:

Description

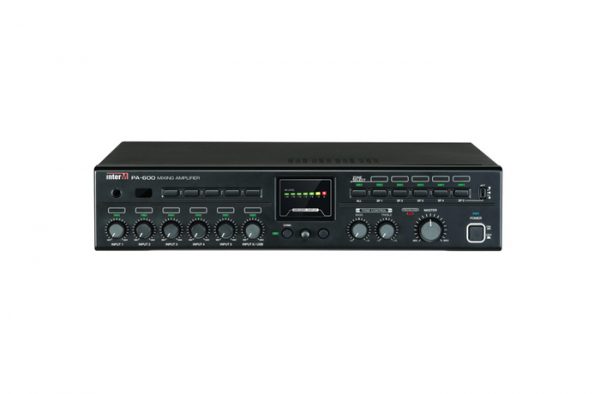

600W Public Address mixer amplifier, /70V/100V. 2RU, SMPS, 6 audio inputs, Tel. input, priority volume control. Phantom power and speaker zone preset. 5 zone selector, Chime and Siren and dB meter on front panel .

SMPS-Switch mode power supply provides high efficiency and low weigh. Among their advantages is their reduced physical size and lower heat dissipation. SMPS offer power efficiency and reduced power consumption over traditional amplifiers.

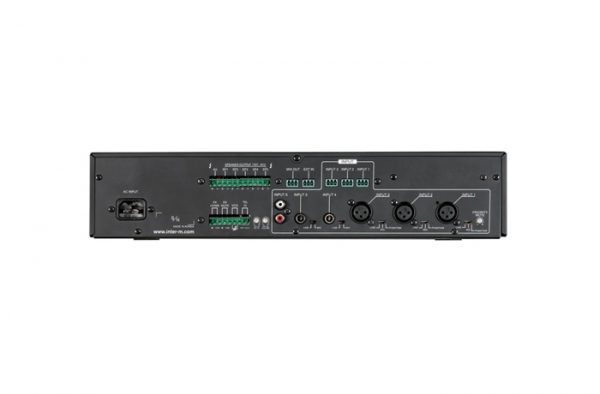

5 Microphone input included with 3 XLR and 2 PHONO Type and 1 RCA input. EXT-IN terminal which allows to use a output source of external device. MIX-OUT terminal that connects mixed output to external equipment.

Features

Lighter, Thinner, Lower
SMPS-Switch mode power supply provides high efficiency and low weigh. Among their advantages is their reduced physical size and lower heat dissipation. SMPS offer power efficiency and reduced power consumption over traditional amplifiers.

Multiple inputs and outputs
5 Microphone input included with 3 XLR and 2 PHONO Type and 1 RCA input. EXT-IN terminal which allows to use a output source of external device. MIX-OUT terminal that connects mixed output to external equipment.

Variety of Line-Up
Variety of product line-up which can be adapted in userÕs application.

Tone Control
With Tone Control on the front panel, Bass / Treble Tone Control can be immediately adjusted without accessing into the menu.

Stick to the basics
PMU Series supports the basic features such as chime, TEL IN, the outside chime and external MUTE function. In addition, the user can set the volume level of high-priority broadcast at MIC1 / 2, chimes and TEL-IN

VCA (Voltage Controlled Amp)
The master volume can be remotely controlled by using a VCA terminal.

Built-in Attenuator
Built-in Attenuator allows to control the output volume over CH 5 separated from main volume.

EX CHIME
The CHIME can be remotely activated by connecting a push button switch to this terminal.

EX MUTE
The output level of INPUT 3~6 are controlled by the priority control volume when the external mute switch terminal is closed.

Specifications

Rated Output: 600W
Frequency Response (SP OUT/1W output): 80Hz~15kHz
T.H.D @ Rated output, 1kHz: Less than 0.5%
S/N @ Rated output: More than 70dB
Tone Control (Treble, Bass): ±10dB
Input Sensitivity / Impedance
Input 1~5:
¥ MIC: -50dBu/2k½
¥ LINE: -10dBu/2k½
Input 6: -10dBu/10k½
Tel In: 0dBu/10k½
Ext In: 0dBu/20k½
Mix Out / Impedance: 0dBu/10k½
Speaker Output / Impedance:
¥ LOW-Z: 100V/8½+8½70V/8½+8½
¥ HIGH-Z: 100V/16½70V/8½
Operating Temperature: -10¡C ~ +40¡C
Power Source: 100-120VAC or 220-240VAC; 50/60Hz (Supplied AC mains transformer or depends on country requirements)
Power Consumption (1/8W output): 160W
Weight: 5.2kg/11.5lb
Dimensions: 420(W)x88(H)x319(D)mm/16.5(W)x3.5(H)x12.6(D)in
