Panasonic TH-80LFB70W 80″ Touchscreen


SKU: TH-80LFB70W Category:


Simple Touch Control

Progress smoothly through your presentation using familiar touch screen gestures to turn pages, zoom in and out content, and navigate through multimedia functions without need of a remote control. Whether using a fingertip to cue content for a presentation, or the stylus pen to jot down notes for the group, you’ll be delighted at how this user-friendly touch interface makes complex tasks simple.

Work Together On Screen

Built-in whiteboard software lets you turn on the display and start work right away—no need to connect a PC. Up to four people can write at a time, and you can save your pages and email them directly to anyone who missed the meeting, Notes can be made on almost anything, from video and photos to PowerPoint® and PDF documents, and then saved as an image file—simply brilliant for the office or classroom.

More Productive Remote Meetings

With vibrant Full HD resolution and a wide display area, remote videoconference participants seem like they’re in the room with you. Team members in remote locations can write detailed notes onto shared documents and solve problems in real time, just as they would when working together in the office. There powerful web and video conferencing capabilities reduce the need for travel, saving your organization time and money.

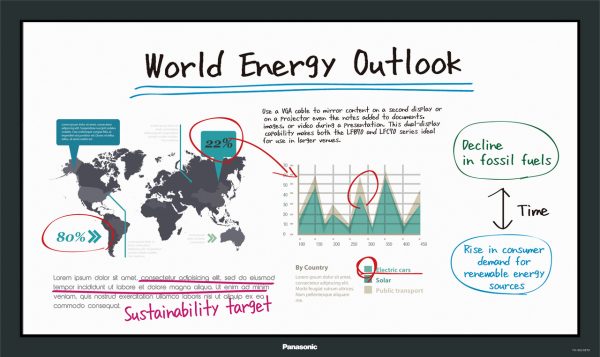

Create and Share On the Built-in Whiteboard

Quick-Start Whiteboard

Start working on the built-in whiteboard instantly—just switch on the display. You can draw straight or freehand lines, and change line thickness, color, and background using the tool palette. To switch input sources, picture settings, and volume, swipe the edge of the screen to display the main menu—no remote control necessary.

Easy and Intuitive Operation

Four-point multi-touch functionality makes it easy to resize and move graphics around on your documents. The included Stylus Pen and Eraser accessory is a convenient way to write large amounts of text. So simple to use, even for children and less technically experienced presenters.

Write and Draw On Media from External Devices

You can write on almost any media you like, including video and still images. Swipe to bring up the main menu, display content from your external device, and start making notes. These dynamic multi-media capabilities make it easy for teams to share information and contribute ideas.

Easy Save and Share

Produce up to 100 pages of work on the whiteboard and save them to the built-in memory*1 or USB thumb drive as JPEG image files. You can also copy data stored on internal memory to a USB drive, or send your pages as image files directly from the screen via email*2. Keeping everyone in the loop is simple.

*1 Built-in memory ON/OFF is included. When OFF is selected, only one whiteboard page can be created.
*2 Can be sent as JPEG format only.

Connect a Variety of Devices

Connect your video camera and write over the captured footage. You can also pause on a desired frame, take a screenshot, and make notes on the image. Perfect for a variety of applications, from strategic planning to video lectures.

View documents and photos stored on USB memory quickly. Just plug in your thumb drive and tap on the USB Memory Viewer app. No time wasted, and a deeper, more effective presentation.

To display hard-copy materials such as textbook pages, connect your document camera via the appropriate display input. High resolution, brightness, and contrast make for clear and comfortable viewing of text and diagrams.

Wireless and USB Connectivity

Instant Playback of Content via USB

Playing back Full HD video, still images, and digital documents from USB storage devices couldn’t be easier. Just insert the memory device into the display’s USB port and commence your presentation without having to first connect a PC. The USB Memory Viewer app enables image (JPEG, BMP) and video (WMV, AVI, MOV, MP4, MPG) selection from handy thumbnail previews.

Miracast™ for Instant Wireless Sharing

Transmit documents, Full HD video, images, and audio from compatible Android devices and Windows PCs to the big screen with Miracast™—the latest wireless standard that doesn’t require software or complicated setup. With no cables, fast connection, and very high bandwidth to enable display of 1080p video at up to 60 frames per second, Miracast™ is a powerful tool for sharing media without cable hassles.

Panasonic Wireless Solution with Multi-Screen Functions

Easy Wireless Display of PC Screen

PC users can use Wireless Manager ME 6.0.2*1 software to wirelessly transmit content from their computer screen (including audio*2) to LFB70 and LFC70 series displays. Simultaneous transmission from up to 16 devices is enabled in Multi-Screen Mode, while one PC can also send content to up to eight displays.

*1: Supported by Windows® XP/Windows Vista®/Windows® 7/Windows® 8, and Macintosh (Mac OS X v10.6/v10.7/v10.8).
*2: Windows® 7 and Windows Vista® users must log in using the Administrator’s account. When a Windows® 7-equipped computer is first used, the sound driver may require adjustment.

Save Time with Easy Wireless Stick

The optional Easy Wireless Stick (ET-UW100*) incorporates built-in wireless application software and a wireless LAN adapter. Connect it to your laptop’s USB port and send your PC screen to the display wirelessly, with no need to install software. This feature is useful for allowing visiting clients or students to share content when time is limited.

* The ET-UW100 cannot transfer audio files. Only the 16-Window Index Style can be used in Multi-Live Mode. The ET-UW100 is available in the following countries and regions as of October 2013: North America, England, Germany, France, Spain, Italy, Belgium, Austria, Sweden, Norway, Denmark, Switzerland, Holland, Finland, Portugal, Greece, Australia, and Japan. A firmware update is necessary before using the ET-UW100.

Wireless Apps for iOS

The Panasonic Wireless Projector for iOS app enables wireless transmission of media from iPad®, iPhone®, and iPod touch®. Share PowerPoint® documents and PDF files quickly and conveniently on the big screen. The app also supports simultaneous display from multiple devices using Multi Mode.

System Flexibility

Simplified DIGITAL LINK Connection

DIGITAL LINK transmits uncompressed Full HD video, audio, and control commands through a single CAT5e cable for up to 100 m (328 ft). Connect all your source devices to an optional Digital Interface Box (ET-YFB100G) and use just one cable to link your display. This simplifies installation and saves on cabling costs.

Compatible with Other Brands’ Peripheral Devices

Based on the HDBaseT™ transmission standard formulated by HDBaseT Alliance, DIGITAL LINK is adapted to include specialized proprietary functions. These enable the connection of the Digital Interface Box (ET-YFB100G) as well as other brands’ peripheral devices supporting the same transmission standard.

Expand and Customize with SLOT2.0

SLOT2.0 allows you to add the functionality and connectivity needed for almost any application. Optional function boards including HDMI and HD-SDI can be mounted to support a customized content distribution system. The optional Plug-in PC (PLUGTHA54)*, meanwhile, can be configured for easy access to web conferencing systems and Whiteboard Software.

* PLUGTHA54 is available in Americas and Europe only.

Supports Crestron Connected™ Software

The displays’ wired LAN terminal is compatible with Crestron Connected automation and control software. You can monitor and control display devices in your network remotely from a single PC via Ethernet.

Connect a Second Display

Use a VGA cable to mirror* content on a second display or projector—even the notes you might add to documents, images, or video during your presentation. This dual-display capability makes both the LFB70 and LFC70 series ideal for use in larger venues.

Supported Inputs: HDMI/DVI/PC/Memory Viewer/Whiteboard
* Supports 1080/60p signal only.

Loaded with High-Value Features

Built-in Speaker

Both the LFB70 and LFC70 series feature a pair of built-in 20 W [10 W + 10 W] speakers for audio playback for audio-video presentations.

Toughened Non-Reflective Glass Provides Clear Visibility

The non-reflective screen surface makes content easy to see in bright ambient illumination. Toughened scratch-resistant glass is designed for touch operation while enhancing the level of impact protection—perfect for classrooms or busy meeting rooms.

Product Specs

Display Screen Size (Diagonal) 80 inch (2032mm)
Panel Type/Backlight LCD VA Panel/E-LED
Aspect Ratio 16:09
Effective Display Area (W x H) 1,77, x 996 mm
Number of Pixels (H x V) 1,920 x 1,080 pixels
Brightness 350 cd/m2
Contrast Ratio 5,000:1
Response Time 4 ms (G to G)
Viewing Angle (Horizontal/Vertical) 176°/176°
Panel Life* approx. 50,000 hours
NOTE *An approximate time until the panel brightness decreases to half of its original value
Touch Panel Detection Method Infrared blocking detection method
PC Connection Port USB (Compliance with 3.0)
Connection Terminal Video In / Audio In (L/R) BNC x 1 / Stereo mini jack (M3) x1 (Shared with Component/RGB in)
Component/RGB In / Audio In (L/R) BNC x 1 set / Stereo mini jack (M3) x1 (Shared with Video in)
HDMI In HDMI Type A connector x2
DVI-D In / Audio In (L/R) DVI-D 24 pin (Digital) x1 / Stereo mini jack (M3) x1 (Shared with PC in)
PC In / Audio In (L/R) Mini D-sub 15 pin female x1 Plug & Play (VES DC 2B) / Stereo mini jack (M3) x1 (Shared with DVI-D in)
PC Out Mini D-sub 15 pin x1
Function Slot : SLOT2.0 1 (Vacant)
USB A Type A USB connector x1 (For Memory Viewer)
USB B Type B USB connector x1 (ForTouch Panel)
External Speaker 8Ω, 20W [10W + 10W] (10% THD)
Control Serial D-sub 9pin (male) x1 (External Control Terminal), RS-232C Compatible
Digital Link RJ45 x1 (Shared with LAN)
LAN RJ45 x1 100BASE-TX, Compatible with PJLink (Shared with Digital Link)
Electrical Power Requirements 220-240v AC, 50/60 Hz
Power Consumption 350W
Power Off Condition approx. 0.3W
Stand-by Condition approx. 0.5W
Audio Built-in Speaker 20W [10W + 10W]
Mechanical Dimensions (W x H x D) 1,868 x 1,093 x 104mm
Bezel Width approx. 43 mm
Carton Dimensions (W x H x D) 2,075 x 1,319 x 404 mm
Weight approx. 84kg
Gross Weight approx. 103kg
Cabinet Material/Colour Aluminum/Black
Pitch for Wall-Hanging VESA Compliant 400 x 400mm
Protection Glass Thickness approx. 4mm/ Anti Glare
Environmental Operating Environment Temperature 0°C to 40°C
Humidity 20% to 80% (Non condensation)
Storage Environment Temperature -20°C to 60°C
Humidity 20% to 80% (Non condensation)
Built-In Wireless LAN Function Standard 2.4GHz: IEEE802.11b/g/n, 5.0GHz: IEEE802.11a/n
Infrastructure Mode WPA2-PSK (TKIP/AES), WPA-PSK (TKEP/AES), WEP (64-bit/128-bit), WPA-EAP/WPA2-EAP
(PEAP [MS-CHAPv2/GTC]/EAP-TTLS [MD5/MS-CHAPv2], 128-bit/64-bit)
