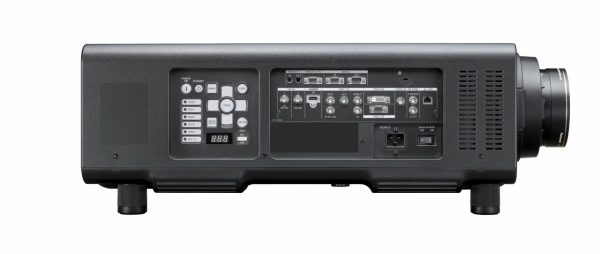

Panasonic PT-DW17K – WXGA (1366 x 768) 17,000 ANSI

$0.00

Compare
SKU: 62 Category:

Description

Product Specs

Power supply 200–240 V AC, 50/60 Hz (Max current requirements: 12 A @200 V)
Power consumption 2,300 W (0.3 W with STANDBY MODE set to ECO,*1 9 W
with STANDBY MODE set to NORMAL.)
DLP™ chip Panel size     21.6 mm
(0.85 inches) diagonal
(16:9 aspect ratio)
Display method DLP™ chip x 3, DLP™ projection system
Pixels     1,049,088
(1,366 x 768) x 3,
total of 3,147,264 pixels
Lens Optional powered zoom and fixed-focus lenses
Lamp 465 W UHM lamp x 4, replacement cycle of up to 2,000 hours*2
Screen size (diagonal)     1.78–15.24 m
(70–600 inches),
1.78–7.62 m
(70–300 inches)
with the ET-D75LE50,
16:9 aspect ratio
Brightness*3   17,000 lm
(four-lamp)
Center-to-corner uniformity*3 90%
Contrast*3 10,000:1 (full on/off, with dynamic iris set to “3” )
Resolution     1,366 x 768 pixels
(Input signals that
exceed this resolution will
be converted to
1,366 x 768 pixels.)
Scanning frequency



HDMI/DVI-D 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)–WUXGA*4 (1,920 x 1,200),
compatible with non-interlaced signals only, dot clock: 25–162 MHz
RGB fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz
YPBPR (YCBCR)
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
Video/YC fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*5 Vertical     ±70 % (±60 % with
the ET-D75LE6)
from center of screen
(powered)
Horizontal   ±30 % (±20 % with the ET-D75LE6)
from center of screen (powered)
Keystone correction range   Vertical: ±40°*6
Keystone correction range
with optional Upgrade Kit

Installation Ceiling/floor, front /rear
Terminals


DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP,
compatible with single link only)
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
RGB 1 IN BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)
RGB 2 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO IN BNC x 1 (composite video)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Cabinet materials Molded plastic
Dimensions (W x H x D) 620 x 291*9 x 800 mm (24-7/16″ x 11-15/32″*9 x 31-1/2″) (optional lens not included)
Weight*10 Approximately 43 kg (94.8 lbs) (optional lens not included)
Shipping dimensions
(W x H x D)
PT-DZ21KU / DS20KU / DW17KU
PT-DZ21KEJ / DS20KEJ / DW17KEJ
965 x 418 x 865 mm (38″ x 16-15/32″ x 34-1/16″)
PT-DZ21KE / DS20KE / DW17KE 946 x 402 x 846 mm (38″ x 15-13/16″ x 33-5/16″)
Shipping weight PT-DZ21KU / DS20KU / DW17KU 53 kg (116.8 lbs)
PT-DZ21KEJ / DS20KEJ / DW17KEJ 54 kg (119.0 lbs)
PT-DZ21KE / DS20KE / DW17KE 51 kg (112.4 lbs)
Operation noise*3 49 dB (quad lamp operation)
Operating environment Operating temperature: 0–45°C (32–113°F)*11
operating humidity: 20– 80 % (no condensation)
Applicable software   Logo Transfer Software,
Multi Projector
Monitoring & Control Software
Supplied accessories Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2)
