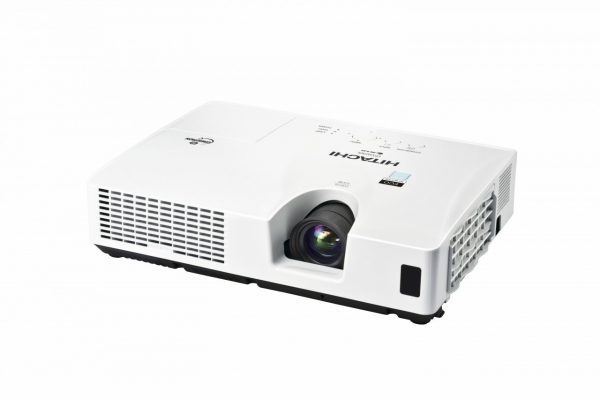

Hitachi CPWX8 – LCD WXGA (1280 x 800) 2600 ANSI


SKU: 166 Category:


A projector for today’s mobile professional. Combining stunning features with powerful performance and weighing as little as 2.2Kg, these are the ultimate portable projectors for the mobile business consumer.

  • WXGA resolution (1280 x 800)
  • 2600 ANSI Lumens (Normal Mode)
  • Direct on and Auto off
  • Contrast ratio: 500:1
  • Lightweight at only 2.2Kg
  • Comprehensive Security Features
  • Extended Hybrid Filter life with 5000 hour filter
  • Long lamp life – 4000 hours (Eco Mode)*
  • Virtually maintenance free
  • Reduced power consumption – Less than 0.5W in Standby Mode

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Security featuresSecurity features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Low TCOLow TCO – Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Template FunctionTemplate Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
  • Virtually Maintenance FreeVirtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Progressive ScanProgressive Scan – Typically with moving images, each frame of video is shown in two halves – odd lines and even lines. Progressive Scan enables every line of a video frame to be displayed simultaneously resulting in crisp, smooth motion and reduced flicker and judder.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs


LCD Panel 0.59″ (1.5cm) P-Si TFT x 3
Resolution WXGA (1280 x 800)
Brightness Normal Mode 2600 ANSI Lumens
Eco Mode 1800 ANSi Lumens
Colour Light Output 2600 ANSI Lumens
Contrast Ratio 500:1
Lens Manual focus, manual zoom x 1.2
Lamp Wattage 200W UHP
Lamp Life 3000 hours (Normal Mode)
4000 hours (Eco Mode)*
Distance To Width Ratio (:1) 1.5 (Wide), 1.8 (Tele)
Diagonal Display Size 30~300″ (76~762cm)
Number Of Colours 8 Bit/colour, 16.7M colours
Keystone Correction Fixed, 6:1 upward shift


Computer Compatibility PC, VGA, SVGA, XGA, SXGA, UXGA (compressed), WXGA+, MAC 16″
Composite/S-Video NTSC/PAL/SECAM/ PAL-M/PAL-N/NTSC4.43
Component Video 525i(480i), 525p(480p), 625i(576i), 750p(720p@50/60Hz), 1125 (1080i@50/60Hz), 1125p(1080p@50/60Hz) (compressed)
Plug & Play DDC2B


Speakers 1W Mono
Basic Functions Freeze, Magnifying, Blank, Auto adjustment, Auto Signal Search
Picture Adjustments Equalising Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction, Mirror Reverse Image, Up-side Down Image, Picture Freeze, Magnify, Image blank
Digital Keystone Auto V keystone +-30 degrees
Advanced Features My Screen, My Memory, My Button, My Text, blackboard/whiteboard modes, Daytime mode, input source naming (English), resolution setting, Template, Power saving mode, Audio pass through
Outward Easy lamp replace from top, Side intake air filter
Power On & Off Quick Start, Direct On, Auto Off
Security Systems PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar
OSD Languages English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)

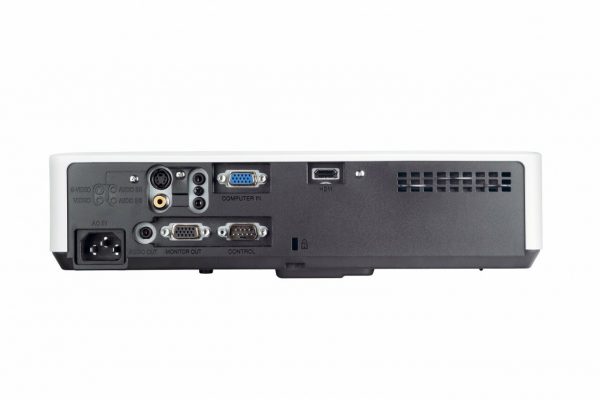

Digital Input 1 x HDMI
Computer Input 1 x 15-pin Mini D-sub
Computer Output 1 x 15-pin D-sub
Video Input 1 x Component D-sub (shared with analogue RGB)
1 x RCA for composite
1 x Mini-DIN for S-Video
Audio Input 2 x Stereo Mini Jack
Audio Output 1 x Stereo Mini Jack
Control 1 x 9-pin D-sub for RS232 Control


Power Supply 100-120V / 220-240V auto switching
Power Consumption/Standby 270W/


Dimensions (W X H X D) 306 x 77 x 221mm (excluding feet and extrusions)
Weight 2.2Kg
Noise Level 35dB (Normal Mode)/28dB (Eco Mode)
Air Filter Hybrid


  Lamp indicator light, Power light, Ceiling mount image, Rear projection image, Serial number label on side


  UL60950-1/C-UL, FCC Part 15 subpart B class B, CE Marking EN61000-3-2, EN61000-3-3, EN55022, EN55024 (EMC directive), EN60950-1 (Low voltage directive), WEEE/RoHS/ErP(lot6) compliant, DEMKO-GS, AS/NZS, GOST-R


  Remote control with batteries (HL02771), Computer cable, Power cord, Lens cap, Soft case, Security label, User manual (detail & concise)


Replacement Lamp DT01141


Projector Warranty 3 Years
Lamp Warranty 6 Months**
  **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated).
