240 watt Basic Mixer Amplifier with 4 mic/line inputs and vox priority with 48V phantom power on mic 1, 2RU

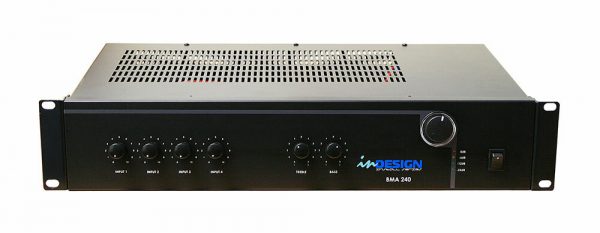

The inDESIGN BMA 240 is a high quality mixer amplifier for commercial and industrial audio applications.

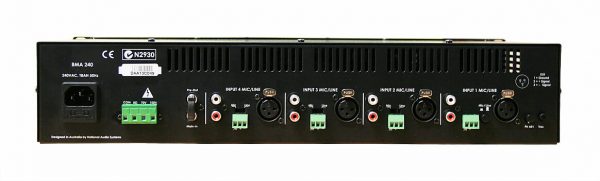

The BMA series feature 4 Mic/line inputs. Microphone input 1 features a mute so that a Microphone on this channel will mute all other inputs, useful for paging announcements. The BMA Series provide either 4 Ohm or constant voltage 100V speaker outputs. A pre-amp out/power amp in link allows for the mixer audio signal to be sent to an external equaliser or a booster amplifier. Shipped with a link fitted.
The mixer amplifiers are part of inDESIGNÛªs Install Series, which also includes mixers and power amplifiers. These units provide excellent features and value.
Output power: 240W
AC power supply: 230VAC -240VAC
Output low impedance: 4 ohm-8 ohm
Hi impedance output: 70V / 20 ohm
100V / 41 ohm
Input sensitivity: Microphone balanced XLR, 1mV
Line RCA 500mV
Frequency response: 50Hz-18Khz, + / – 2dB. At -3dB rated power
Noise floor: 8mv at 100V output
THD (at -3dB rate power): Less than 0.5%
Tone control: Bass 100Hz + – 10dB, Treble 10kHz + – 10dB
Control: Input level, tone control, master level, VOX
VOX: CH 1 has priority over CH2, 3, 4. (AFL)
Phantom power: 48V at CH 1 MIC XLR
Cooling: Fan cooling, Thermal control
Protection: Thermal protected at 95 degrees, muted input, short circuit, overload
Level meter: LED meter, range -24dB / 0dB
Size (mm): 485 x 88 x 315
Weight KG (Net): 11
