Mixer Amplifier 30 Watt With Bluetooth. 3 Channel, 100V and 4Ohm Outputs
|Output Power per Channel||30W||Frequency Response||104Hz – 20kHz|
|Output Mode||4 Ohm-100V||THD+N||< 0.2%|
|Input Channels||1 MIC/Line and 2 Line||Signal to Noise Ratio||> 85dB|
|Input Voltage||230Vac 50Hz||Input Sensitivity||MIC: 3mV – Line: 405mV|
|Product Dimensions (W x D x H)||217mm x 287mm x 44mm||Shipping Dimensions (W x D x H)||315mm x 365mm x 105mm|
|Net Weight||3.75 Kg||Shipping Weight||4.7 Kg|

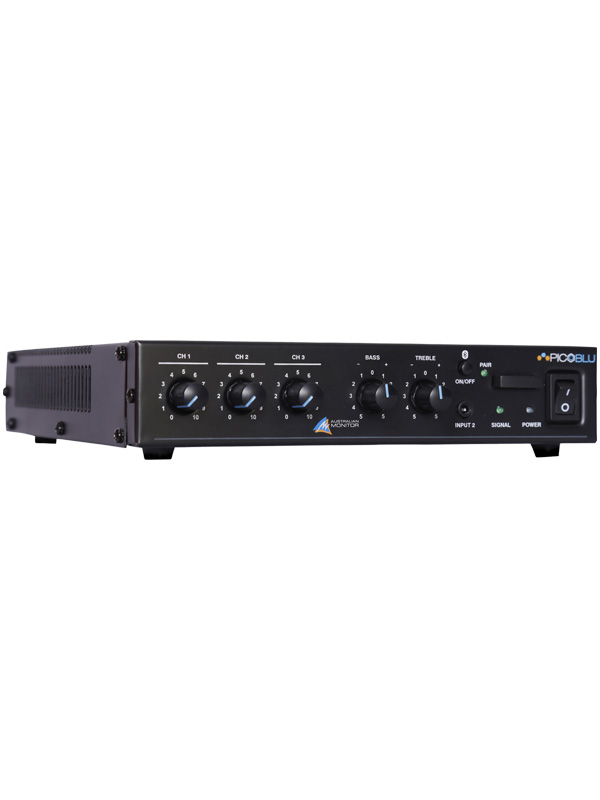

SMALL FORM FACTOR
The PICOBLU® is a small form factor mixer amplifier designed to fit in tight spaces or to be concealed under tables or fitted on walls.
Measuring just 217mm wide, 44mm high and 287mm depth the PICOBLU® can go where it is needed.
3 CHANNEL MIXER – 6 INPUT SOURCES
The PICOBLU® is a 3 channel mixer but features the flexibility to use up to 6 different input standards.

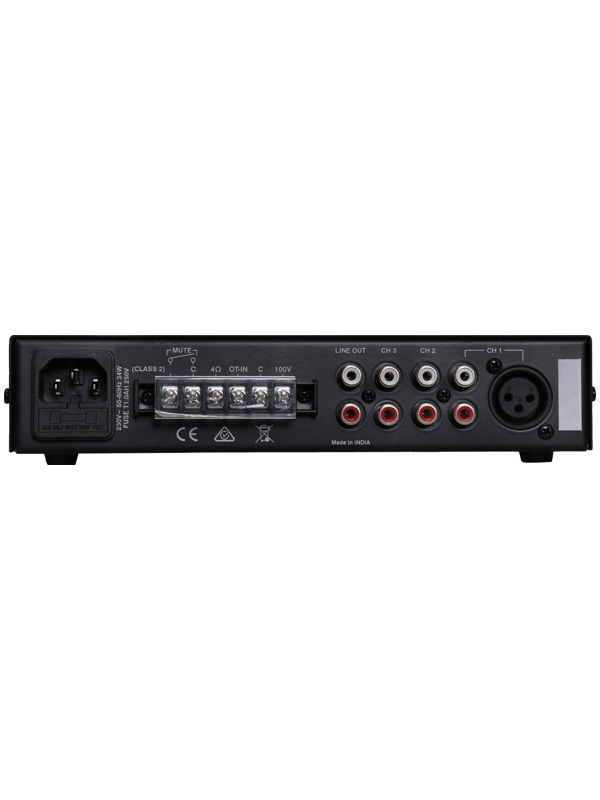

Mixer Input 1 can be either a microphone input using the rear XLR input or a line-level input using the rear RCA inputs.
Mixer Input 2 can be either a rear RCA line-level input or a front panel 3.5mm input jack.
Mixer Input 3 can be a rear line-level input or a Bluetooth® audio input.
MUTE CONTACT CLOSURE
The PICOBLU® features a rear screw terminal contact closure input.
Simply connect to a paging station/fire panel or another control device to mute inputs 2 and 3 to make paging or emergency announcements.
