Panasonic PT-TW230EA – WXGA (1280 x 800) 2500 ANSI Short-Throw

$949.00

Compare
SKU: 80 Category:

Description

Projecting images onto a large screen in a limited space; making lectures go smoothly by eliminating glare of the projection light and the shadow on the screen. The short-throw interactive projectors meet these needs, creating new styles of lectures, workshops, meetings and presentations.

Product Specs

General

  • Width : 35 cm
  • Depth : 38.2 cm
  • Height : 14.3 cm
  • Weight : 4.7 kg
  • Device Type : LCD projector – High Definition 720p
  • Built-in Devices : Speaker

Expansion / Connectivity

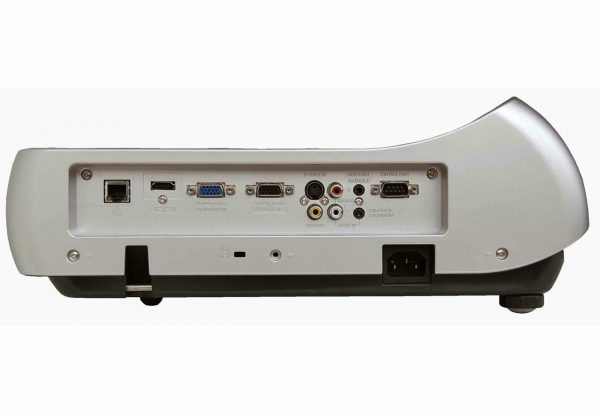

  • Interfaces : 1 x HDMI input – 19 pin HDMI Type A
    1 x component video / RGB input – 15 pin HD D-Sub (HD-15)
    1 x composite video input – RCA
    1 x S-video input – 4 PIN DIN
    1 x audio line-in – RCA phono x 2
    1 x audio line-in – mini-phone stereo 3.5 mm
    1 x audio line-out – mini-phone stereo 3.5 mm
    1 x serial RS-232C input – 9 pin D-Sub (DB-9)
    1 x network – RJ-45
    1 x VGA input / output – 15 pin HD D-Sub (HD-15)

Networking

  • Data Link Protocol : Ethernet, Fast Ethernet

Miscellaneous

  • Cables Included : 1 x VGA cable – 1.8 m

Power

  • Power Device : Power supply – internal
  • Voltage Required : AC 120/230 V ( 50/60 Hz )
  • Power Consumption Operational : 310 Watt
  • Power Consumption Operational ( Standby ) :0.42 Watt

Software / System Requirements

  • Software Included : Logo Transfer Software, Multi Projector Monitoring & Control Software

Environmental Parameters

  • Sound Emission : 36 dB
  • Min Operating Temperature : 0 °C
  • Max Operating Temperature : 35 °C
  • Humidity Range Operating : 20 – 80% (non-condensing)
  • Sound Emission (Economic Mode) : 29 dB

Video Input

  • Analogue video Signal : RGB, S-Video, composite video
  • Analogue Video Format : NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
  • Digital Video Standard : High-Definition Multimedia Interface (HDMI)
  • Video Modes : 480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/60i, 720/60p, 1080/50i, 720/50p, 750/50p, 750/60p, 1125/60i, 1125/50i

Audio Output

  • Type : Speaker(s) – integrated
  • Sound Output Mode : Mono
  • Output Power / Channel : 10 Watt

Input Device

  • Type : Remote control – external – wireless

Projector / Panel

  • Features : High-bandwidth Digital Content Protection System (HDCP), 3LCD Technology, Short Throw Technology, PJlink, 16:10 aspect ratio support, Direct Power Off
  • Max Sync Rate (V x H) : 100 Hz x 100 kHz
  • Throw Ratio : 0.50:1
  • Colour Support : 16.7 million colours
  • Video Bandwidth : 162 MHz
  • Image Brightness : 2500 ANSI lumens
  • Image Contrast Ratio : 500:1
  • Image Size : 152 cm – 279 cm
  • Display Format : 3,072,000 pixels (1280 x 800) x 3
  • Bulb type : UHM 230 Watt
  • Resolution : WXGA – WXGA (1280 x 800)
  • Uniformity : 80 %
  • Bulb life cycle : 3000 hour(s) / 4000 hour(s) (economic mode)
  • Native Aspect Ratio : Widescreen

Projector Lens System

  • Lens Aperture : F/1.8
  • Vertical Keystone Correction : -20 / +20
  • Focus Type : Manual
  • Keystone Correction Direction : Vertical
