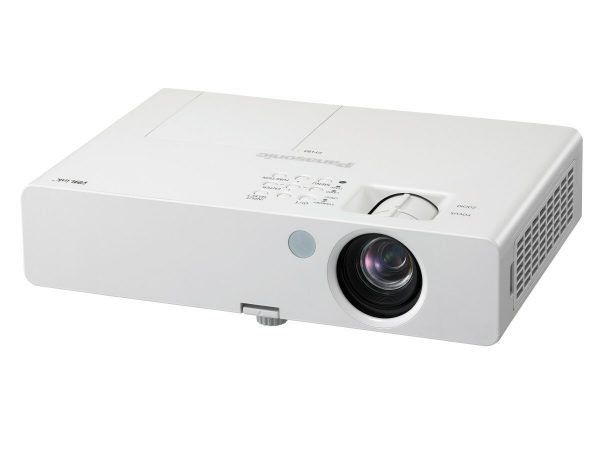

Panasonic PT-LB3EA – XGA (1024 x 768) 3200 ANSI

$867.00

Compare
SKU: 79 Category:

Description

Outstanding Performance and Excellent Mobility, Ideal for a Wide Range of Uses — From Business to Education

The PT-LB3 series offers superb basic performance, such as a 5,000-hour lamp replacement cycle. Its Intelligent Power Management function allows resistance to sudden voltage fluctuations. A network function reduces management tasks with a wired LAN connection, and allows flexible system upgrading. And an easy setup function enables quick operation for portable use. This kind of versatility brings efficient visual communication to all kinds of applications.

Product Specs

Power supply 100–240 V AC, 50/60 Hz
Power consumption 300 W
0.4 W at 220-240 V AC, 0.3 W at 100-120 V AC when standby mode set to eco*1, 15 W when standby mode set to normal, 18 W when standby mode set to normal and audio monitor out.
Optical system Dichroic mirror separation/prism synthesis system
LCD panel Panel size 16 mm (0.63″) diagonal, 4:3 aspect ratio
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Lens Manual zoom
(1:1-1:1.2),
manual focus,
F 1.64-1.87,
f 18.80-22.56 mm,
throw ratio: 1.4-1.7:1
Lamp 220 W UHM lamp (The lamp replacement cycle is 5,000 hours.*2)
Projection size 0.84–7.62 m (33–300 inches) diagonally (4:3 aspect ratio)
Colors Full color (16,777,216 colors)
Brightness*3 3,200 lumens
Center-to-corner
uniformity ratio*3
85%
Contrast ratio*3 600:1 (full on/full off)
Resolution (RGB)*4 1,024 x 768 pixels (Input signals that exceed this resolution will be
converted to 1,024 x 768 pixels.)
Scanning frequency RGB Horizontal: 15–91 kHz, Vertical: 50–85 Hz
YPBPR 480i (525i): fH 15.75 kHz; fv 60 Hz
576i (625i): fH 15.63 kHz; fv 50 Hz
480p (525p): fH 31.50 kHz; fv 60 Hz
576p (625p): fH 31.25 kHz; fv 50 Hz
720 (750)/60p: fH 45.00 kHz; fv 60 Hz
720 (750)/50p: fH 37.50 kHz; fv 50 Hz
1080 (1125)/60i: fH 33.75 kHz; fv 60 Hz
1080 (1125)/50i: fH 28.13 kHz; fv 50 Hz
1080 (1125)/60p: fH 67.50 kHz; fv 60 Hz
1080 (1125)/50p: fH 56.25 kHz; fv 50 Hz
S-Video/
Video
NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz
PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz
Optical axis shift 5:1 (fixed)
Keystone correction range Vertical: approx. ±30°
On-screen menu 17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai
Installation Front/rear, ceiling/desk (menu selection)
Built-in speaker 1 W (monaural), Size: 4 x 2 cm (1-1/16″ x 25/32″) x 1, oval

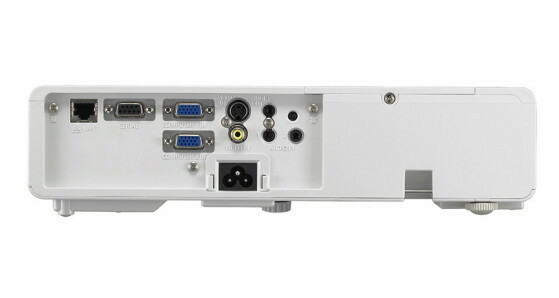

Terminals COMPUTER (RGB) 1 IN D-sub HD 15-pin (female) x 1
RGB signal:
G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal:
Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
COMPUTER (RGB) 2 IN D-sub HD 15-pin (female) x 1
RGB signal:
G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal:
Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
VIDEO IN RCA pin x 1, 1.0 V [p-p], 75 ohms
S-VIDEO IN Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms
AUDIO IN M3 (L, R) x 2, 0.5 V [rms]
VARIABLE AUDIO OUT M3 (L, R) x 1, 0 –2.0 V [rms]
SERIAL D-sub 9-pin x 1, for external control (RS-232C compliant)
LAN RJ-45 x 1, compatible with PJLink™ (class 1), 10BASE-T/100BASE-TX
Power cord length 2 m (6.6′)
Cabinet material Moulded plastic (PC+ABS)
Dimensions  (W x H x D)*5 307 x 69 x 210 mm (12-3/32″ x 2-23/32″ x 8-9/32″)
Weight*6 Approx. 2.3 kg (5.07 lbs.)
Operating environment Temperature: 0°–40°C (32°–104°F) *7
Humidity: 20%–80% (no condensation)
Supplied accessories Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control ( AAA type for North/South America, R03 type for Europe/Asia) x2, VGA cable, Carrying bag, Application software (CD-ROM)
