NEC PX800XG – XGA (1024 x 768) 8000 ANSI

$0.00

Compare
SKU: 26 Category:

Description

High-performing, versatile and easy to use

The 8000-lumen NEC PX800X is a professional installation projector with dual lamps that provide intense light output. The projector’s advanced input panel includes HDMI, DisplayPort, USB viewer and dual computer inputs for quick-switching between presentations. The PX Series features the Open Pluggable Specification (OPS) technology, which is the first industry-wide standardization in option slots to simplify installation, use and maintenance, while offering input flexibility. Its networking capabilities include integrated RJ45, optional high-speed wireless (LAN IEEE 80.11b/g) and several Windows networking features.

The PX Series features integrated HQV™ technology, a high-performance video processing/scaling system designed for computer signals, standard or high-definition video. Its edge blending functionality enables seamless blending of multiple projected images to display a single high-resolution image, while the lens shift capability provides greater installation flexibility with 50% vertical lens shift and +/- 10% horizontal lens shift.

NEC PX800XG at a glance

  • HD/SD SDI input card using OPS technology
  • Stacking correction capabilities (up to four projectors) allows the projectors to boost an image’s brightness up to 32,000 lumens
  • Complete line of (6) bayonet-style lenses with built-in lens memory, electronic zoom, focus and lens shift
  • HQV™ technology delivers superior home theater video processing
  • HDMI input connects you to high-definition sources
  • Crestron RoomView Connected™
  • Integrated RJ-45 and/or wireless LAN quickly connects to the LAN for control or image transmission using Windows Network Projector and/or Remote Desktop

Product Specs


  • Display Technology: DLP (0.7″ DMD)
  • Light Output (Lumens): 8000 normal / Eco = approx. 80% of normal mode
  • Resolution: WXGA 1024 x 768 Native
  • UXGA 1920 x 1200 Maximum
  • Contrast Ratio (up tp): 2100 : 1
  • Lamp Life (up to): 2,000 hours normal / 2500 hours eco
  • Screen Size (diagonal): 50 to 300 in. / 1.3 to 7.6 m
  • Throw Ratio: Variable
  • Projection Distance: 2.6 to 179.8 ft. / 0.8 to 54.8m
  • Projector Angle: 0° tele / 14.6° wide

Lens

  • Zoom: Power
  • Focus: Power
  • F number, fnumber: F=1.7 to 3.1, f=26 to 117.4mm
  • Shift: Power: 50% vertical, 10% horizontal
  • Keystone Correction: +/- 40° horizontal, +/- 30° vertical

Signal Compatibility/Connectivity

  • Scan Rate: Horizontal – 15-108 Khz / Vertical:  – 48-120 Hz
  • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
  • Macintosh Compatibility: Yes

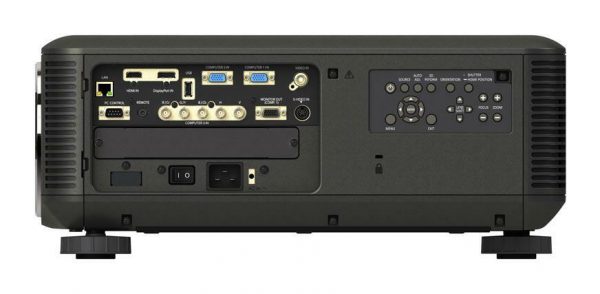

Input/Output Terminals

  • RGB1(analog): VGA 15-pin D-sub
  • RGB2(analog): VGA 15-pin D-sub
  • RGB3(analog): 5-BNC
  • RGB4(digital): HDMI w/HDCP
  • RGB5(digital): DisplayPort
  • Video 1: RCA
  • Video 2: S-Video
  • Monitor out: VGA 15-pin D-sub
  • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
  • Networking: RJ-45 Monitoring
  • Sync Compatibility: Separate Sync / Composite Sync / Sync on G

Electrical

  • Power Requirements: 100-240V AC, 50/60 Hz
  • Input Current: 10.8A
  • Power Consumption (Normal / ECO Mode / Standby / Standby Power Saving): 1006W / 810W / 33WNA / 0.2W

Mechanical

  • Optional Lenses: NP06FL, NP07ZL, NP08ZL, NP09ZL, NP10ZL
  • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
  • Dimensions (W x H x D): 19.8 x 20.3 x 7.6 in. / 504 x 516 x 192mm
  • Net Weight: 43.4 lbs. / 19.7 kg
  • Fan Noise (dB (A)): 43 dB normal / 39dB eco

Environmental

  • Operating Temperature: 32-104°F / 0-40°C
  • Humidity: 20-80% non-condensing
  • Storage: -14-122°F / -10-50°C

Additional Features

  • Manual keystone correction
  • Wireless LAN (optional)
  • USB Viewer
  • Stacking Correction
  • Edge Blending: Geometric Correction
  • 2500 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

Ships With

  • Remote control
  • Batteries
  • Power cord
  • Dust cap for lens: User manual
  • Quick Start Guide
  • Product registration card
  • 6-segment color wheel
  • Stascking Holders: Power cord stopper: Anti-theft can for LAN unit: Lens anti-theft screw
