NEC M260WG – LCD WXGA 16:10 (1280 x 800) 2600 ANSI

$1,001.00

Compare
SKU: 42 Category:

Description

Advanced, adaptable and eco-friendly

Ideal for education and small-to-medium-sized business environments, the NEC M260WG offers a range of enhanced technologies and great value for money.

The advanced features of this 2600-lumen, widescreen model include DICOM simulation, which allows medical school teachers to display accurate diagnostic images during lessons. You also have the flexibility of variable audio-out input, enabling you to connect to an external speaker or sound system and control both through the projector’s remote.

Designed with the environment in mind

The NEC M260WG includes a carbon savings meter, and offers extended lamp and filter life, as well as the energy-saving benefits of quick start-up and direct power-off. So helping protect the environment also brings convenience: you can start up in seconds, connect with your audience, then shut down with ease.

NEC M260WG at a glance

  • HDMI input, connecting you to high-definition sources
  • USB Viewer, letting you present without a PC using a USB flash drive
  • variable audio-out, allowing the remote control to adjust the volume of self-powered external speakers connected to the projector
  • ECO Mode™ technology, helping extend lamp life and lowering power consumption
  • integrated active lens cover that mutes audio and video while lowering the lamp power to 25% to conserve energy
  • integrated RJ-45 and/or wireless LAN (optional), connecting quickly to the LAN for control or image transmission
  • dual computer inputs for quick switching between presentations
  • virtually maintenance-free design, including improved 6000-hour filter life

Product Specs

Optical

  • Display Technology: 0.59″ LCD w/ MLA
  • Light Output(Lumens): 2600 normal / Eco = approx. 80% of normal mode

Resolution

  • Native: WXGA 1280 x 800
  • Maximum: UXGA 1600 x 1200
  • Contrast Ratio (up to): 2000:1
  • Lamp Type: 180W AC / 145W eco
  • Lamp Life (up to): 5000 hours normal / 6000 hours eco
  • Screen Size (diagonal): 25 to 300 in. / 0.64 to 7.6m
  • Throw Ratio: 1.3 to 2.2
  • Projection Distance: 2.3 to 47.8 ft. / 0.69 to 14.6m
  • Projector Angle: 6.5 to 6.8° tele / 10.8 to 11.4° wide

Lens

  • Zoom: 1.7
  • Focus: Manual
  • F number, fnumber: F=1.7 to 2.1, f=17.5 to 29mm
  • Keystone Correction: Automatic or manual +/- 30°

Signal Compatibility/Connectivity

Scan Rate

  • Horizontal: 15-100 kHz
  • Vertical: 50-120 Hz
  • Supported Video Standards: NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA
  • Macintosh Compatibility: Yes

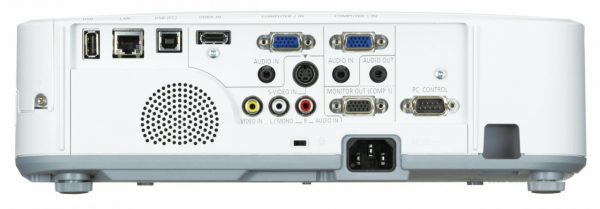

Input/Output Terminals

  • RGB1 (analog): VGA 15-pin D-sub
  • RGB2 (analog): VGA 15-pin D-sub
  • RGB3 (analog): HDMI
  • Video 1: RCA
  • Video 2: S-Video
  • Audio: 1/8 in. stereo
  • Monitor out: VGA 15-pin D-sub
  • Audio out: Yes (variable)
  • Audio: 10W speaker
  • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
  • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
  • Networking: RJ-45 Monitoring

Electrical

  • Power Requirements: 100-240V AC, 50/60 Hz
  • Input Current: 2.8A/1.2A
  • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 248W / 198W / 8W / 0.2W

Mechanical

  • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
  • Dimensions (WxDxH): 13.4 x 10.1 x 3.9 in. / 339 x 257 x 99mm
  • Net Weight: 6.4 lbs. / 2.9 kgPounds (lbs.)
  • Fan Noise: 34 dB normal / 27 dB eco
  • Regulations: UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B, NOM-001-SCFI-1993

Environmental

  • Operating Temperature: 41-104°F / 5-40°C
  • Humidity: 20-80% non-condensing
  • Storage: -14-122°F / -10-50°C

Warranty

  • 2 years

Additional Features

  • Automatic keystone correction
  • Wireless LAN (Optional)
  • Active Lens Cover
  • USB Viewer
  • Cornerstone
  • Geometric Correction
  • 6000 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

Ships With

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • Built-in Lens cover
  • User manual
  • Quick Start Guide
  • Product registration card
  • CD-ROM
  • Carrying case
