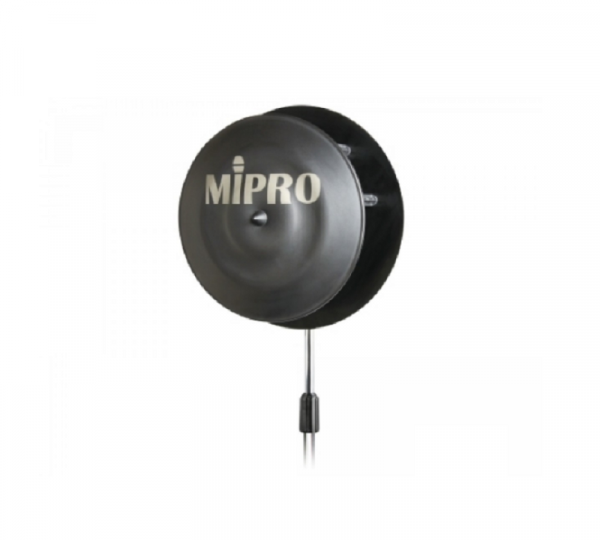

Mipro AT-100 Circular Polarized Antenna

$1,539.85

Compare
SKU: AT-100 Category:

Description

Mipro AT-100 Circular Polarized Antenna

AT-100 is designed for demanding professional stages and will greatly improve signal stability and reduce interferences, signal drop-outs caused by polarization problems. It is an active directional antenna.

Features

  • Distinguished Appearance Optimized solution for both transmitting and receiving RF signals throughout the UHF bandwidth.
  • Patented in multiple countries.

Main Features

  • Circularly polarized antenna can effectively reduce the polarization loss of the antenna to improve signals strength. Optimum solution for 470-1,000 MHz bandwidth with 6~8 dBi antenna gain and certified to latest CE/FCC newly telecom regulations.
  • Front area is the main focus of antenna direction for either vertical or horizontal polarization.

Built-in Connectors

  • AT-100 has two built-in connectors:  One “TX/RX” signal connectors for either transmitter or receiver. Another “RX Only” receiver only connector (cannot connect to transmitter) has a built-in 12 dB antenna gain booster provides extended reception range and compensates for coaxial cable signal loss caused to improve reception range and signal quality. Booster power can be provided by a MIPRO AD-707a or any ACT series receivers.
Results
  • AT-100 is an ideal antenna system for utmost signal stability. Antenna features affect transmission range, stability and anti-interference performance. Therefore, antenna is a vital component in any system installations especially for complicated and demanding RF environment wireless microphones and wireless monitors systems. It greatly improves signal stability and reduces interferences, signal drop-outs caused by polarization problems.

Waterproof

  • Ideal for both outdoor and indoor applications.
  • Waterproof and weather resistant.



Product Specs



Frequency Range

470MHz~1000MHz

Antenna Gain

6~8dBi

Polarization

Circular polarization

3-dB Beam-width

72°

Booster Gain

RX connector: 12±1dB; TX/RX connector: 0dB

VSWR

≦2:1

Power Consumption

RX connector: 1120mW (DC 8V); TX/RX connector: 0mW

Impedance

50Ω

Connector

TNC Female x2

Dimensions

350(W)x350(H)x225(D)mm / 13.8(W)x13.8(H)x8.8(D)”

Weight

Approx. 1.5kg / 3.3lbs

Note

Refer to actual product in the event of product discrepancy.

Additional information

Weight 1 kg
Dimensions 1 × 1 × 1 cm
