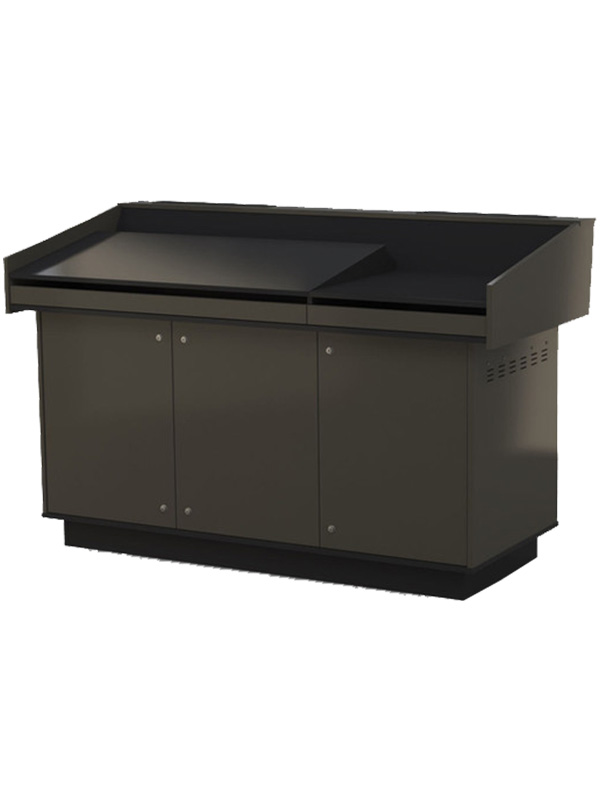

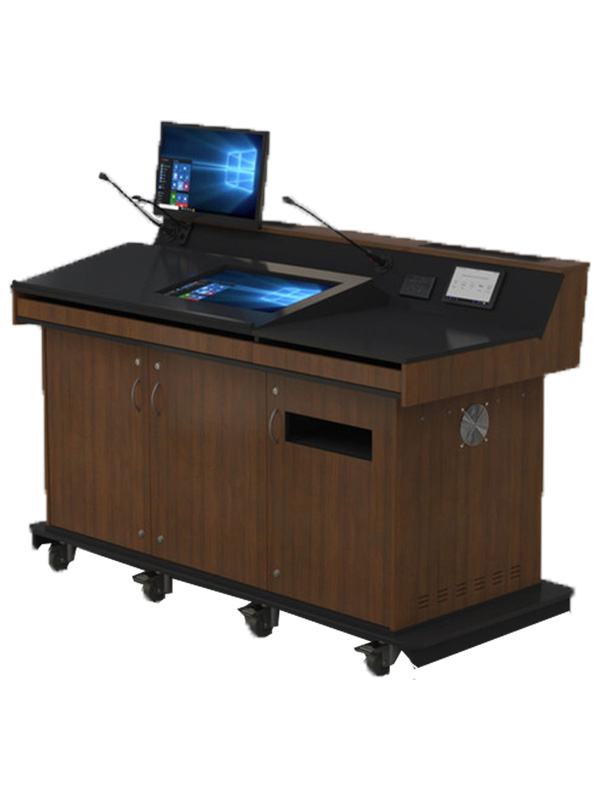

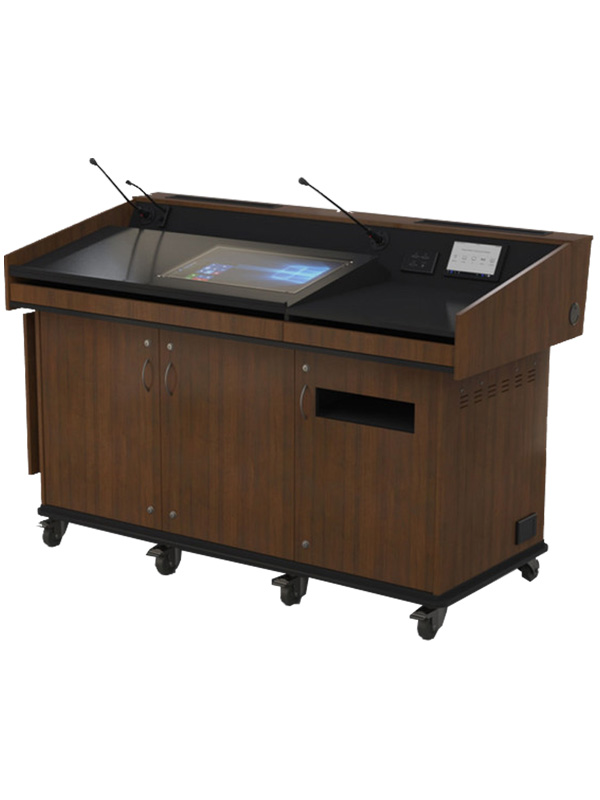

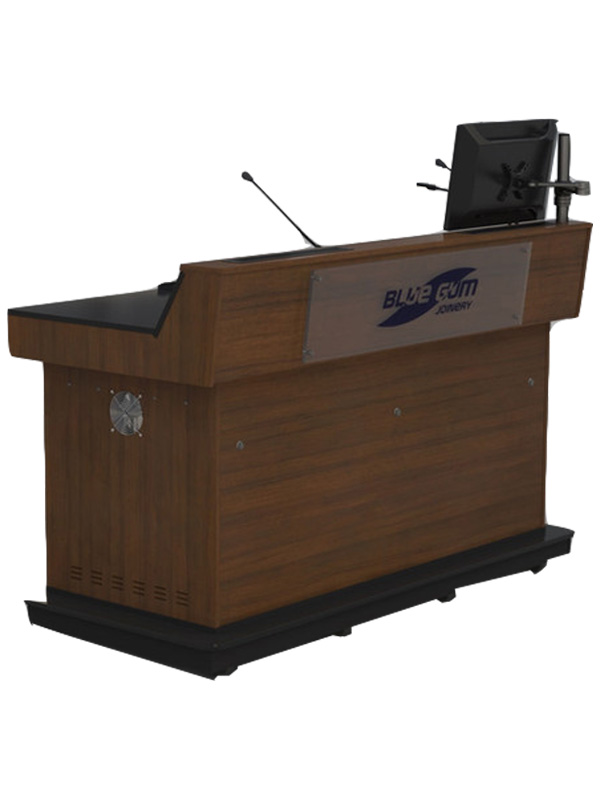

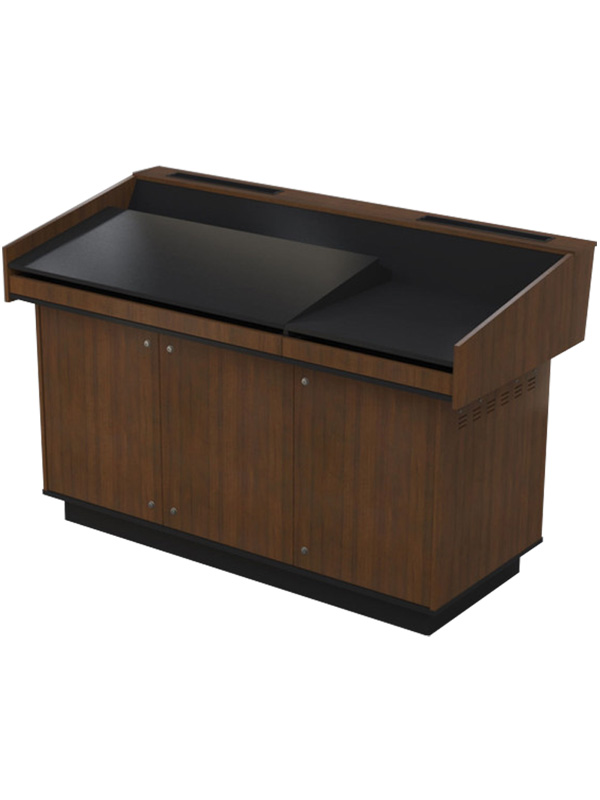

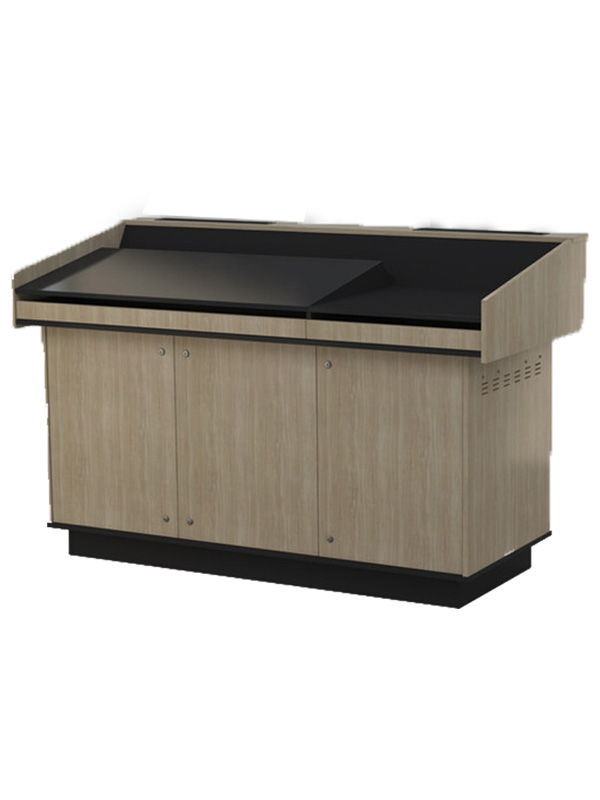

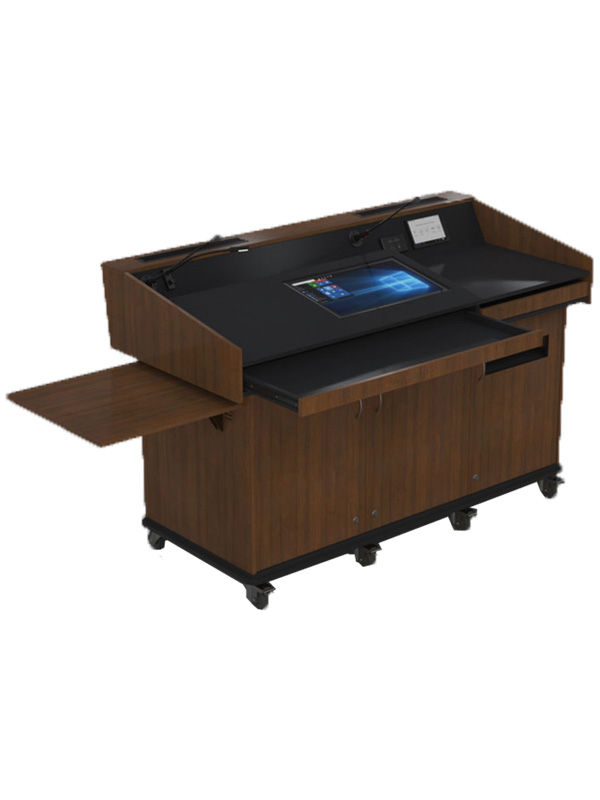

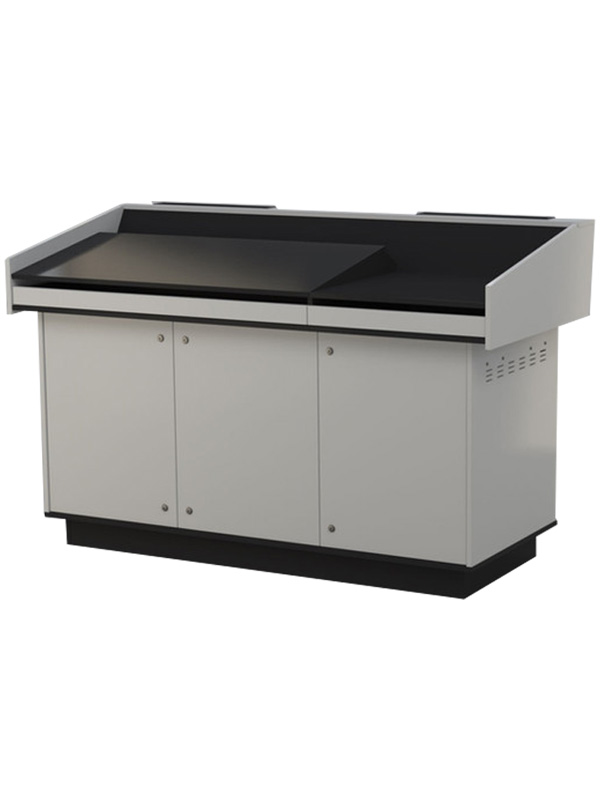

B-Series Triple Bay Lecterns

$4,967.60$5,095.20

The B-Series triple-bay lectern is a three-door wide lectern with pull-out keyboard drawers and angled data panel to house touch screens, power/data points, etc.
The angled top version has a top designed with a recessed “Trough” which lowers the touch screen and helps keep the overall lectern at a comfortable height.
B-Series triple bay lecterns come standard with six adjustable internal shelves, lockable doors, and a lockable/removable service panel.
B-Series internal widths are correct for 19inch rack stripping – Rack strip is an option. Note: Rack frames do not fit into the B-Series lecterns without customizing the overall sizes
Databoard height can be changed to suit the various size touch panels or power/data points you plan to use (affects lectern overall height). B-Series triple bay lecterns come fully assembled.

Clear
Compare
SKU: Lecternsales-1002 Categories: , ,

Description

Options

The below optional extras are available at an additional cost. If you would like us to discuss different options, Please call 1300 669 235 or email us sales@audiovisualsales.com.au we would be happy to put together a formal quote for you.



fully customised to suit your requirements

fully customised to suit your requirements

Order Codes and specifications

Triple Bay - Angled work surface.png

BGL-CPM03A

Triple Bay – Angled work surface

  • Internal height:  667mm  (15ru)

  • Internal width:  489mm  – All bays

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  900mm

Overall Dimensions:  1074mm high  *  1700mm wide  *  784mm deep

BGL-CPM03FLEFT-Hand Angled work surface.png

Triple Bay – Flat work surface

  • Internal height:  667mm  (15ru)

  • Internal width:  489mm – All bays

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  900mm

Overall Dimensions:  1074mm high  *  1700mm wide  *  784mm deep

BGL-CPM03LA

B-Series 2 Bay Dimensions.jpg

Triple Bay – LEFT-Hand Angled work surface

  • Internal height:  667mm  (15ru)

  • Internal width:  489mm – All bays

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  900mm

Overall Dimensions:  1074mm high  *  1700mm wide  *  784mm deep

BGL-CPM03RA

B-Series 2 Bay Dimensions.jpg

Triple Bay – RIGHT-Hand Angled work surface

  • Internal height:  667mm  (15ru)

  • Internal width:  489mm – All bays

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  900mm

Overall Dimensions:  1074mm high  *  1700mm wide  *  784mm deep

Additional information

B-Series Triple Bay Lecterns Options

BGL-CPM03A, BGL-CPM03F, BGL-CPM03LA, BGL-CPM03RA
