A-Series Triple Bay Lecterns

Multimedia A-Series Triple Bay lecterns have three large internal areas to accommodate a vast array of audiovisual equipment. Interior space is large enough to house AV rack frames or RU rack stripping with maximum internal height, width and depth a priority.

A-Series Triple Bay lecterns are available with angled or flat-backs and or angled or flat worktops to allow for various installation options. They also come in either single bay, double bay models.

Our A-Series Triple Bay lectern comes standard with six adjustable shelves, lockable doors, removable panels, ventilation, cable access and voids. However, various options can also be added. Please see below for further option ideas.

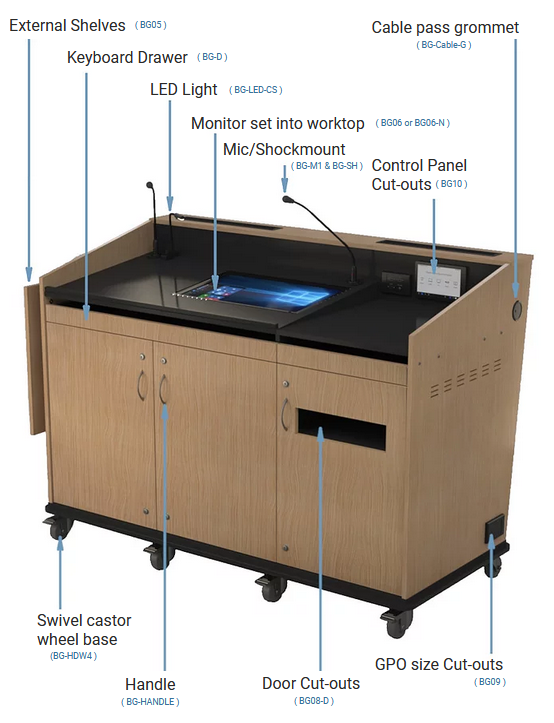

BGL-M03 Options Lecturer Side

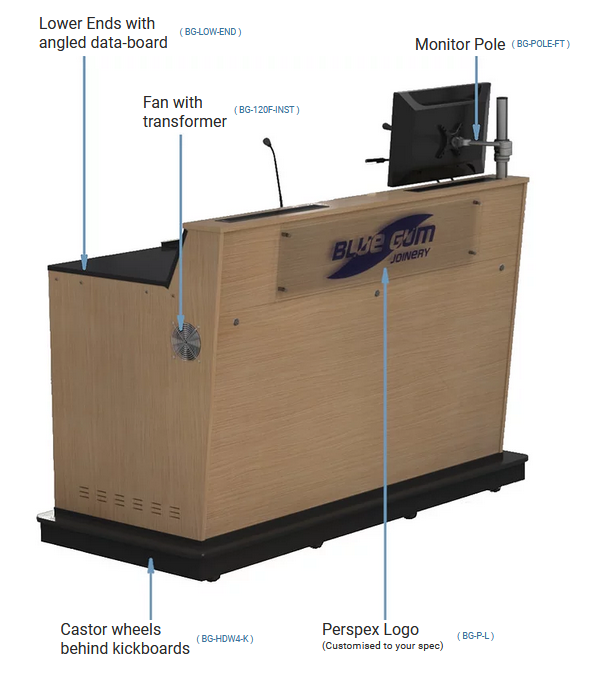

BGL-M03 Options Lecturer Side

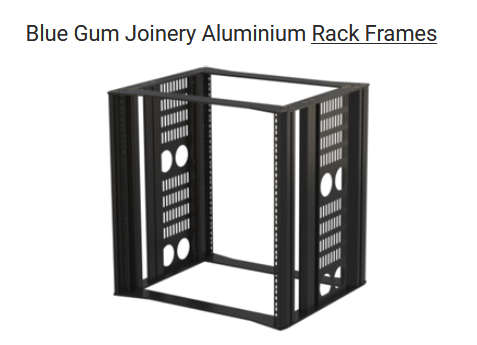

BGL-M03 Options Lecturer Side
A-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs

Order Codes and specifications

BGL-M03A

Triple Bay – Angled work surface with angled back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  690mm (15ru)

  • Internal width:  489mm (each bay)

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  1536mm wide  *  754mm deep

BGL-M03F

Triple Bay – Flat work surface with angled back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  690mm (15ru)

  • Internal width:  489mm (each bay)

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  1536mm wide  *  754mm deep

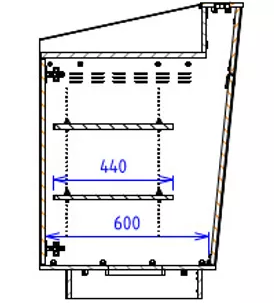

BGL-M01F Section View

BGL-M03A-FB

Triple Bay – Angled work surface with flat back

  • Internal height (without optional keyboard drawer):  770mm (17ru)

  • Internal height (With optional keyboard drawer):  690mm (15ru)

  • Internal width:  489mm (each bay)

  • Internal depth:  700mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  1536mm wide  *  754mm deep

BGL-M03F-FB

Triple Bay – Flat work surface with flat back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  690mm (15ru)

  • Internal width:  489mm (each bay)

  • Internal depth:  700mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  1536mm wide  *  754mm deep

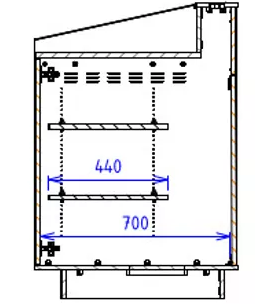

BGL-M03F-FB

BGL-M03A-FB-N

Triple Bay – Angled work surface with flat back – Narrow depth

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  690mm (15ru)

  • Internal width:  489mm (each bay)

  • Internal depth:  580mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  1536mm wide  *  634mm deep

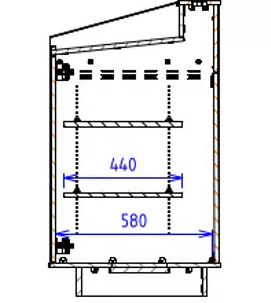

BGL-M03A-FB-N

BGL-M03F-FB-N

Triple Bay – Flat work surface with flat back – Narrow depth

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  690mm (15ru)

  • Internal width:  489mm (each bay)

  • Internal depth:  580mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  1536mm wide  *  634mm deep

BGL-M03F-FB-N

Colours

We can build your A-Series triple-bay lectern in any available melamine board colour from all board suppliers.

Our standard pricing is worked out based on melamine board; however, we can build your A-series lectern in custom finishes such as polyurethane paint or natural veneers.

Please contact us if you would like to discuss colour and finish options.
