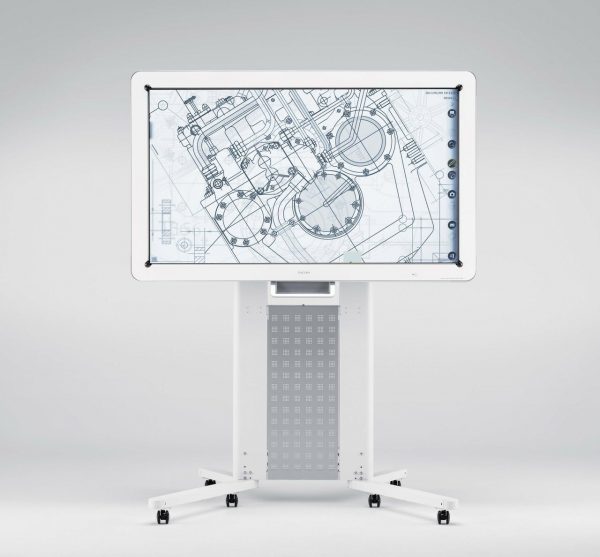

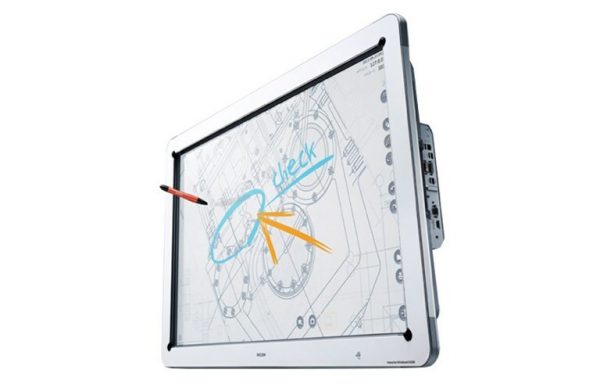

Ricoh D5500 55″ Interactive Whiteboard


SKU: D5500 Category:


This remarkable innovation will improve the productivity and cost-effectiveness of your business meetings, video conferencing, collaborative presentations and classroom training sessions.

  • Smooth handwriting:  write, draw or annotate smoothly and quickly using the handy electronic pen.
  • Outstanding quality: the 55-inch, full HD LCD display incorporates an LED backlight for outstanding brightness and long life. Displays the faintest of handwriting and the nuances of detailed drawings, and helps convey the key messages of your presentations clearly and powerfully.
  • Real-time, remote communication:  An optional license allows you to share written contents with up to four D5500 units or Ricoh interactive projectors connected via the intranet at the same time. Remote view from PC/MAC and other smart devices for instant sharing. Increase interactivity while reducing costs and time. Ideal for remote or multiple offices.
  • Instant connection: ready to use the moment you switch it on. There’s no need to install any software or perform any calibrations.
  • Easy to use: Just connect it to your PC, iPad, tablet or smartphone with a VGA cable to start working on your digital projections and interact with colleagues or students. Network connected PC’s can also be remote operated on the D5500, whichmakes it much easier to change content.
  • User friendly interface:  No need for training. With touch-screen convenience you can write, draw, edit, erase, move, resize and save. Screen content can be instantly saved to USB memory, Network folder or D5500 temp folder, shared via email as PDF file, or print out directly to a Ricoh MFD/Printer.
  • Multiple applications: Collaborate on designs and artwork for easy collaboration, revision and approval for anything from designs and drawings, web pages, corporate reporting or tests. Interactive and flexible teaching and learning in classrooms.
  • Safe and secure:  All data is permanently deleted the moment you switch the whiteboard off. And for remote access, PIN code authentication can be enabled to prevent unauthorised use.

Product Specs



Panel size:

Diagonal: 55 inch (1,387 mm)

Display type:

Liquid crystal display


LED system

Effective display area
(W x H):

1,209 x 680.4 mm


Maximum: 1,920 x 1,080 pixles


Maximum: Over 16,770,000 colours


Maximum: 300 cd/m²

Aspect ratio:


Contrast ratio:

2,670 : 1

Pixel pitch:

0.63 x 0.63 mm

Response speed:

6.5 ms (Grey to Grey, Ave.)

Viewing angle (H/V):

Left and right 160°
Up and down 160°
(Contrast ratio  ≥10)





Detection system electronic pen:

Light interception method

Protection glass thickness:

Approx. 2 mm (including AR coating)





External interface:

Display unit: Mini D-SUB15pin x 1
Controller unit: Mini D-SUB15pin x 1,
Display port x 1:
USB2.0 TYPE-A x 4, USB3.0 TYPE-A x 2
Wired LAN: 10BASE-T/ 100BASE-TX/1000 Base-T

Dimensions (W x D x H):

1,360 x 170 x 830 mm


Less than 47 kg

Power source:

100 – 240 V, 50/60 Hz

Enhanced features:

Picture in Picture




Data recovery


Remote Screen Share



Print directly to Ricoh MFP/Printer

  Remote PC operation
  Read PPT/PDF from USB/Network folder/D5500 temp folder
  Save PDF to USB/Network folder/D5500 temp folder


Auto Firmware download



Sound power level (full system):

40 dB or less

Power consumption:

Maximum: 300 W or less


Stand-by mode: 45 W or less

Start up time:

Less than 40 sec.

Recovery time from stand-by mode:

Less than 5 sec.

Operating temperature:

10°C – 32°C

Operating humidity:

15% – 80%

Altitude limitation:

Lower than 2,000 m (sea level)





  • Electronic Pen
  • Remote License for whiteboard remote sharing
  • Floor stand with 3 adjustable heights
