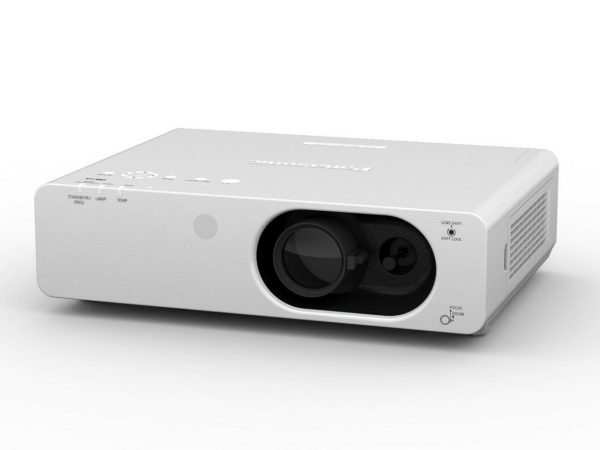

Panasonic PT-FX400EA – XGA (1024 x 768) 4000 ANSI


SKU: 77 Category:


Long lasting brightness, minimal maintenance, eco-friendly features

Whether your projector needs are for the office, the class room or the board room, advanced Panasonic technologies like Daylight View Premium ensure bright, clear projected images even in brightly-lit rooms, while wasteful power consumption is reduced.

Optional Wireless projection is provided for PCs, iPads and similar devices. Flexible installation, via the 2x zoom lens and horizontal/vertical lens shift, adapt to a wide range of room sizes and shapes.  The Panasonic-FX400EA can also use existing mounting positions and cabling, making it ideal for replacement units as well as first-time installations.

Fewer replacement parts mean lower maintenance

The FX400’s long operating life is achieved with its reliable optical system and dust-resistant structure, providing an unprecedented 6,000 hour lamp replacement cycle and an eco-filter that will not need replacing for 12,000 hours.  As an added environmental advantage, the filter can be washed and re-used.

Images with better clarity, colour and depth

Distribution data is extracted for ultra-high, high, medium and low-range frequencies, then  Panasonic’s image correction circuit optimally enhances each area of the screen.  The result is more natural, life-like images with high definition and clarity.

In brightly-lit rooms, the FX400 automatically corrects for ambient brightness with a luminance sensor, and adjusts to optimise sharpness and brightness according to the surroundings. In conjunction with the Detail Clarity Processor 3, the realism and vividness of projected images is enhanced for high contrast, making them easier to view at all light levels.

Eco-conscious performance

The FX400 automatically adjusts brightness to the light conditions, reduces lamp power when there is no signal input or when it is in AV Mute mode and uses a low stand-by power level of 0.4W.  All you need to do is press the ECO button on the remote.

Product Specs

Display technology

3LCD 0.8″

Resolution (physical)

XGA 1024 x 768 pixels, from VGA (640 x 480) to UXGA (1600 x 1200)

Brightness (norm./eco. mode) in ANSI-Lumen


Contrast ratio


Weight in kg


Dimensions (W x D x H) in mm

430 x 323 x 125

Noise level (full/eco)

33/29 dB

Lens system

2x zoom manual f=24.0 to 47.2 mm/F=1.7 to 2.6

Projection distance

1.2 m to 18.1 m

Image size (diagonal)

0.83 m to 7.62 m

Throw ratio (distance to image width)

1.48 to 2.96:1


hor. +/-27 % man., vert. +/- 50 % man.

Keystone correction

vert. +/-30° man.


digital keystone correction, ceiling mount, rear projection, digital zoom, mask, freeze, OSD, DaylightView5, control via RS232, IR or LAN with Internet Browser, automatic air filter with dust sensor, password protection


250 W UHM

Lamp life time (normal/economy mode)

up to 5000 h

Power supply

100 to 240V AC/ 50/60 Hz

Power consumption (on/stand-by)


Video compatibility

PAL/SECAM/NTSC, 480i/p, 525i/p, 576i/p, 625i/p, 720p, 1080i/p bei 50/60Hz

Horizontal frequency

15 to 91 kHz

Scanning rate

50 to 85 Hz


162 MHz


DVI-I, RGB in (1×15 pin D-sub), Audio in (2xjack), Video (1xRCA), S-Video (1xMini-DIN 4polig), Audio in (2xRCA)

WLAN Specification

Optional with module IEEE 802.11 b/g/n
Order Nr. 302 88 951


Audio out controlable (1xjack)

RS232 port

9 pin D-sub

LAN port

RJ45 for remote control and image transfer

Mouse port

Sound system

1 x 5 Watt mono

Standard accessories

projector, power cable, remote control, batteries, CD ROM with software Wireless Manager 5.5, logo transfer software and control software,  manuals


36 months

Lamp warranty

3 years or 3000 hours at max. 5 h/day or 1000 h/year
