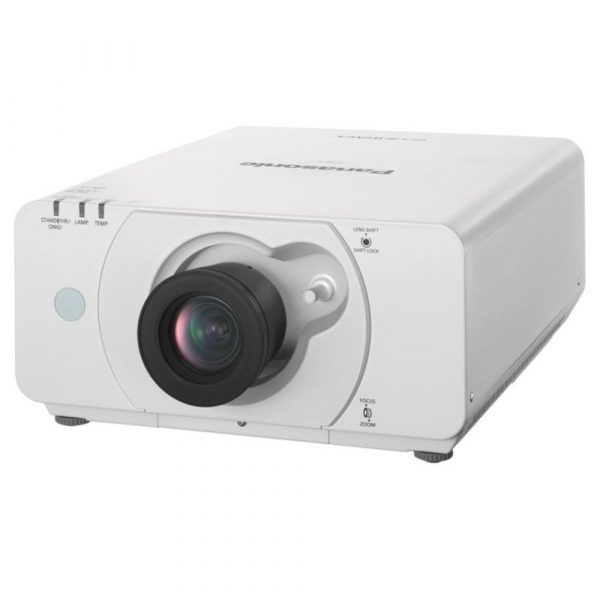

Panasonic PT-DZ570E – WUXGA (1920 x 1200) 4000 ANSI


SKU: 56 Category:


Produce high definition images with this compact and reliable projector

Experience the quality and flexibility of Panasonic’s PT-DZ570E projector. Ideal for use in classrooms, meeting rooms and conference halls, this low-maintenance unit can easily function as a new installation or the replacement of an existing system. With the PT-DZ570E, you also benefit from a wide variety of features, including high definition resolution and a waveform monitor function.

An impressive 4,000 lumens of brightness, with a high contrast ratio

The 300 watt AC lamp unit features an efficient light focusing reflector. Using only a single lamp unit, the PT-DZ570E offers 4,000 lumens of brightness, while boasting a high contrast ratio of 2,000:1, you can be sure this unit will project a bright, sharp image.

High definition, wide-screen resolution gives you greater detail

Take full advantage of wide-screen image technologies, including Blu-rayTM content, thanks to the native WUXGA resolution feature for high-definition viewing. This brings you life-like projection of detailed images and with a wider resolution; you will fit more onto the screen to accommodate even the most complex of charts and graphs.

Easy wireless projection from multiple PCs

An optional module allows you to operate wireless projection for smoother presentations. Wireless technology makes is much easier to switch between multiple PCs and also means that presenters can be more mobile in the room, instead of having to be near the projector unit or a wall socket. Added functions include Live mode, where the image projected is identical to that seen on the PC screen and Multi-Live mode, where you can wirelessly connect with multiple PCs.

Wave form monitor function for better performance

When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced correctly. With the PT-DZ570E, you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer.

Display different sources with a single projector

It can be difficult to explain related information when you can only show one image at a time. That’s why the side-by-side function is so useful, as it allows you simultaneously to display different sources with a single projector, such as a PC image on one side and a video image on the other. This feature takes full advantage of the wide-aspect screen and lets you enjoy a more flexible display.

Produce medical grade images with the DICOM simulation mode

DICOM is the medical standard application for handling, storing, printing and transmitting information in medical imaging. It has been widely adopted by hospitals and is gaining in popularity in smaller medical applications, such as dentist and doctor’s offices. With the DICOM simulation mode training, professionals and medical educators can now produce x-rays with remarkable clarity on a large screen during conferences or training courses, in the required greyscale levels.

Detail Clarity Processor 3

Detail Clarity Processor 3

Brings depth and clarity to details

RGB booster

RGB booster

Significantly improves colour reproduction




Product Specs

DLP™ chip Panel size 17.0 mm (0.67 inches) diagonal, 16:10 aspect ratio
Display method DLP™ chip x 1, DLP™ projection system
Pixels 2,304,000 (1,920 x 1,200) pixels
Lamp 300 W (max. 310 W) UHM lamp
Brightness*1 4,000 lumens (lamp mode: NORMAL)
Contrast ratio*1 2,000:1 (full on/full off)
Resolution 1,920 x 1,200 pixels
Lens Manual zoom (2x zoom), manual focus F 2.0-3.4, f 21.5-43.0 mm
Screen size 1.02-7.62 m (40-300 inches), 16:10 aspect ratio
Optical axis shift Vertical: +60% from center of screen (manual)
Horizontal: ±10% from center of screen (manual)
Scanning frequency RGB fH: 15 kHz-100 kHz, fV: 24 Hz-120 Hz, dot clock: 162 MHz or lower
YPBPR (YCBCR) 480i (525i): fH 15.75 kHz; fV 60 Hz
576i (625i): fH 15.63 kHz; fV 50 Hz
480p (525p): fH 31.50 kHz; fV 60 Hz
576p (625p): fH 31.25 kHz; fV 50 Hz
720 (750)/60p: fH 45.00 kHz; fV 60 Hz
720 (750)/50p: fH 37.50 kHz; fV 50 Hz
1035/60i: fH 33.75 kHz; fV 60 Hz
1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz
1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz
1080/25p: fH 28.13 kHz; fV 25 Hz
1080/24p: fH 27.00 kHz; fV 24 Hz
1080/24sF: fH 27.00 kHz; fV 48 Hz
1080/30p: fH 33.75 kHz; fV 30 Hz
1080/60p: fH 67.50 kHz; fV 60 Hz
1080/50p: fH 56.25 kHz; fV 50 Hz
S-Video/Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

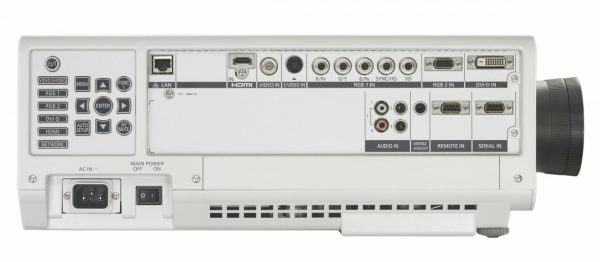

HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480) -WUXGA (1,920 x 1,200)*2; compatible with non-interlaced signals only; dot clock: 25-162 MHz Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*2; compatible with non-interlaced signals only; dot clock: 25-162 MHz
RGB 1 IN BNC x 5 (RGB/ YPBPR x 1)
RGB 2 IN D-sub HD 15-pin (female) x 1 (RGB/ YPBPR x 1)
VIDEO IN BNC x 1 (composite video)
S-VIDEO IN Mini DIN 4-pin x 1 (S-Video)
 AUDIO IN 1  RCA x 2 (L, R x 1), 0.5 Vrms
 AUDIO IN 2  M3 x 1 (L, R x 1), 0.5 Vrms
 AUDIO IN 3  M3 x 1 (L, R x 1), 0.5 Vrms
 AUDIO OUT  M3 x 1 (L, R x 1) (monitor out: 0-2.0 Vrms, variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE IN D-sub 9-pin (female) x 1 for external control (contact control)
WIRELESS MODULE RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Power cord length 3.0 m (9 ft 10 in)
Power supply
PT-DS100X (Europe and Asia) 100-240 V AC, 5.0-1.9 A, 50/60 Hz
Power consumption
PT-DS100X (Europe and Asia) 415 W (500 VA) (0.3 W at 100-120 V AC, 0.4 W at 220-240 V AC with standby mode set to ECO*3, 15 W with standby mode set to NORMAL)
Dimensions (W x H x D) 332 x 168*4 x 484.5 mm (13-1/16˝ x 6-5/8˝*4 x 19-1/16˝ ) (including the lens)
Weight Approximately 8.5 kg (18.7 lbs.)
Operating temperature 0°C-45°C (32°F-113°F)
Operating humidity 20%-80% (no condensation)
Supplied accessories Power cord with security lock, wireless remote control unit, batteries for remote control (AA type for North America, R6/LR6 type for Europe and Asia) x 2, wire rope, software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software Ver. 2, Wireless Manager ME 5.5)
