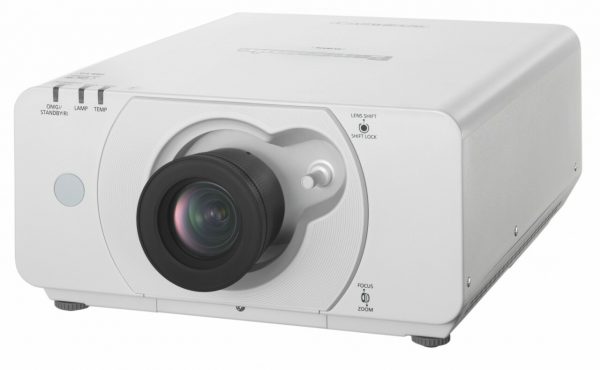

Panasonic PT-DX500E – XGA (1024 x 768) 4500 ANSI


SKU: 76 Category:


High performance and reliability made affordable

Experience the quality and flexibility of Panasonic’s PT-DX500E projector. Ideal for use in classrooms, meeting rooms and conference halls, this low-maintenance unit can easily function as a new installation or the replacement of an existing system. With the PT-DX500E, you also benefit from a wide variety of features, including the daylight view function and DICOM simulation mode.

An impressive 4,500 lumens of brightness, with a high contrast ratio

The 300 watt AC lamp unit features an efficient light focusing reflector. Using only a single lamp unit, the PT-DX500E offers 4,500 lumens of brightness, while boasting a high contrast ratio of 2,000:1. You can be sure this unit will project a bright, sharp image.

Easy wireless projection from multiple PCs

An optional module allows you to operate wireless projection for smoother presentations. Wireless technology makes is much easier to switch between multiple PCs and also means that presenters can be more mobile in the room, instead of having to be near the projector unit or a wall socket. Added functions include Live mode, where the image projected is identical to that seen on the PC screen and Multi-Live mode, where you can wirelessly connect with multiple PCs.

Daylight view premium for better colour perception*

This function corrects the image quality to project sharp, clear images even in brightly lit rooms. A luminance sensor measures the ambient brightness and a real-time adjustment function optimises sharpness and brightness according to the surroundings. This adjustment function also works together with the Detail Clarity Processor 3 to enhance the realism and vividness of projected images. This makes images easier to view and offers high contrast.

Produce medical grade images with the DICOM simulation mode

DICOM is the medical standard application for handling, storing, printing and transmitting information in medical imaging. It has been widely adopted by hospitals and is gaining in popularity in smaller medical applications, such as dentist and doctors’ offices. With the DICOM simulation mode training, professionals and medical educators can now produce x-rays with remarkable clarity on a large screen during conferences or training courses, in the required greyscale levels.

Product Specs


DLP™ chip

Panel size

17.8 mm (0.70 inches) diagonal (4:3 aspect ratio)

Display method

DLP™ chip x 1, DLP™ projection system


786,432 (1,024 x 768) pixels


300 W (max. 310 W) UHM lamp


4,500 lumens (lamp mode: NORMAL)

Contrast ratio*1

2,000:1 (full on/full off)


1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)


Manual zoom (2x zoom), manual focus F 2.0-3.4, f 21.5-43.0 mm

Screen size

1.02-7.62 m (40- 300 inches), 4:3 aspect ratio

Optical axis shift

Vertical: +60% from center of screen (manual)
Horizontal: ±10% from center of screen (manual)

Scanning frequency


fH: 15 kHz-100 kHz, fV: 24 Hz-120 Hz, dot clock: 162 MHz or lower


480i (525i): fH 15.75 kHz; fV 60 Hz
576i (625i): fH 15.63 kHz; fV 50 Hz
480p (525p): fH 31.50 kHz; fV 60 Hz
576p (625p): fH 31.25 kHz; fV 50 Hz
720 (750)/60p: fH 45.00 kHz; fV 60 Hz
720 (750)/50p: fH 37.50 kHz; fV 50 Hz
1035/60i: fH 33.75 kHz; fV 60 Hz
1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz
1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz
1080/25p: fH 28.13 kHz; fV 25 Hz
1080/24p: fH 27.00 kHz; fV 24 Hz
1080/24sF: fH 27.00 kHz; fV 48 Hz
1080/30p: fH 33.75 kHz; fV 30 Hz
1080/60p: fH 67.50 kHz; fV 60 Hz
1080/50p: fH 56.25 kHz; fV 50 Hz


fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

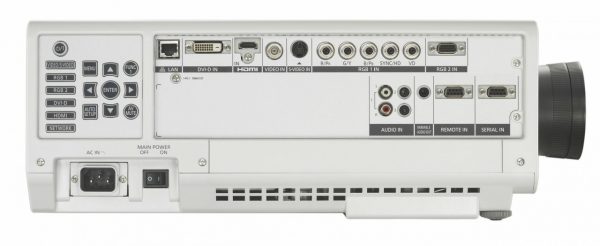

HDMI 19-pin x 1 (Deep Color, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480) -WUXGA (1,920 x 1,200)*2; compatible with non-interlaced signals only; dot clock: 25-162 MHz Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)


DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*2; compatible with non-interlaced signals only; dot clock: 25-162 MHz


BNC x 5 (RGB/ YPBPR x 1)


D-sub HD 15-pin (female) x 1 (RGB/ YPBPR x 1)


BNC x 1 (composite video)


Mini DIN 4-pin x 1 (S-Video)


 RCA x 2 (L, R x 1), 0.5 Vrms


 M3 x 1 (L, R x 1), 0.5 Vrms


 M3 x 1 (L, R x 1), 0.5 Vrms


 M3 x 1 (L, R x 1) (monitor out: 0-2.0 Vrms, variable)


D-sub 9-pin (female) x 1 for external control (RS-232C compliant)


D-sub 9-pin (female) x 1 for external control (contact control)


Connector for optional wireless module ET-WM200 x 1


RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)

Power cord length

3.0 m (9 ft 10 in)

Power supply

PT-DS100X (Europe and Asia)

100-240 V AC, 5.0-1.9 A, 50/60 Hz

Power consumption

PT-DS100X (Europe and Asia)

415 W (500 VA) (0.3 W at 100-120 V AC, 0.4 W at 220-240 V AC with standby mode set to ECO*3, 15 W with standby mode set to NORMAL)

Dimensions (W x H x D)

332 x 168*4 x 484.5 mm (13-1/16˝ x 6-5/8˝*4 x 19-1/16˝ ) (including the lens)


Approximately 8.5 kg (18.7 lbs.)

Operating temperature

0°C-45°C (32°F-113°F)

Operating humidity

20%-80% (no condensation)

Supplied accessories

Power cord with security lock, wireless remote control unit, batteries for remote control (AA type for North America, R6/LR6 type for Europe and Asia) x 2, wire rope, software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software Ver. 2, Wireless Manager ME 5.5)
