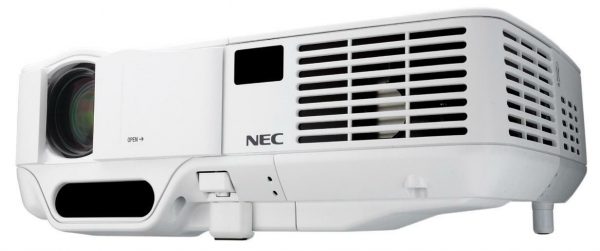

NEC NP43G – XGA (1024 x 768) 2300 ANSI


SKU: 36 Category:


Handy, lightweight and bright

With the latest automatic features, the NEC NP43G projects your presentations in high-contrast brilliance. It displays outstandingly bright images from the latest DLP® engine, and is compact, lightweight and easy to use – ideal for the professional presenter on the road.

NEC NP43G at a glance

  • automatic keystone, automatic focus and automatic power ON via RGB input or AC
  • BrilliantColor™, including a 6-segment colour wheel, providing accurate colour reproduction
  • quick start-up/cooling/shutdown, minimising projector set-up and teardown between meetings
  • built-in audio (via stereo mini connector), bringing presentations to life
  • extended lamp life (up to 40%) with ECO Mode™ (up to 3500 hours)
  • carbon savings meter, calculating the positive effects of operating the projector in ECO Mode
  • quiet operation, at less than 32dB, in ECO Mode

Product Specs

Display 1 x 1.4 cm (0.55″) DDR DMD Chip (Aspect Ratio 4:3)
Lamp 200 W (170 W Eco Mode )
Lamp Life [hrs] 2500 (3500 Eco Mode )
Brightness  2300 ANSI Lumens (approx. 85% in Eco Mode )
Contrast Ratio  1600:1
Lens F= 2.2–2.34, f= 20.4–24.5 mm
Diagonal: min. / max. [cm] 84 (33″); 762 (300″)
Projection Distance [m] 1.44 – 13.45
Projection Factor 1.8 – 2.16 : 1
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– [value4] kHz); Vertical: 50 – 120 Hz
Native Resolution 1024 x 768 (XGA)
Supported Resolutions 1920 x 1080 (HDTV 1080i at 50/60 Hz); 1600 x 1200 (UXGA); 1400 x 1050 (SXGA+); 1280 x 1024 (SXGA); 1280 x 720 (HDTV 720p) compressed; 1024 x 768 (XGA); 832 x 624 (MAC); 800 x 600 (SVGA); 640 x 480 (VGA/MAC); SDTV 480p/576p

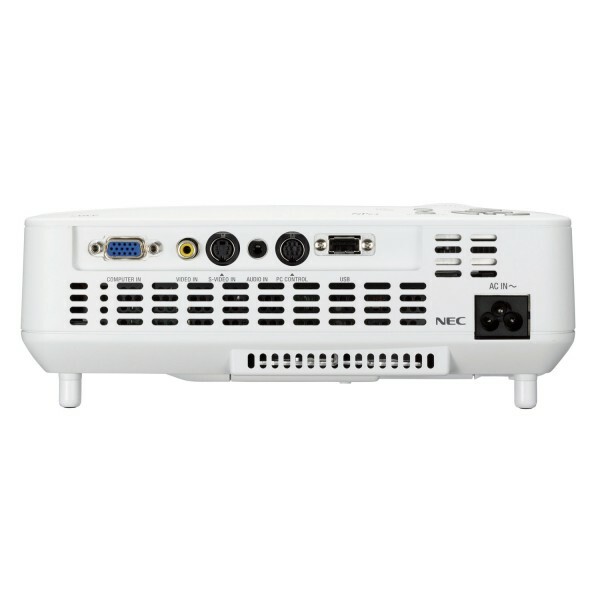

ComputerAnalog Input: 1 x Mini D-sub 15 pin
Video Input: 1 x RCA
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 1 x 3.5 mm Stereo Mini Jack
Output: 0.3 W mono speaker
PC Control Input: 1 x Mini DIN 8 pin (female)
USB no
Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Zoom / Focus Adjustment Automatic/manual; Manual
Optical Zoom 1:1.2 manual
Benefits 6-segment Colour Wheel; Auto Power Start; Automatic Focus ; Automatic Signal Detection; BrilliantColor™ andVIDI technology ; Carbon Savings Meter ; Direct Power-Off Function; Electric Whiteboard Function; High Altitude Mode; Kensington security slot; Keypad Lock; Off-Timer; Password Security System; Quick-Start -/Quick-Power-Off Function; Wall Colour Correction ; digital zoom; Automatic and manual vertical Keystone Correction (V= ±40°);Keystone Correction (H=±40°, V=±30°); OSD with 21 languages
Remote Control Aspect Ratio; Automatic Picture Adjustment; Direct Source Select; Freeze-function; Help-function; Lamp Mode Control; Magnify-function; Mute-function; Page Control
Dimensions (W x H x D) [mm] 246 x 72 x 177 (without lens and feet)
Weight [kg] 1.7
Power Supply 200-240 V AC; 50 – 60 Hz
Power Consumption [W] 252 Normal Mode; 212 Eco Mode ; 3.7 Network Stand-by Mode
Fan Noise [dB (A)] 32 / 37 (Eco / Normal)
Safety and Ergonomics CE; Gost-R; RoHS ; TÜV GS
Warranty Projector: 2 years parts and labour
Lamp: 6 Months, or 2000 Hrs (which ever occurs first)
Shipping Contents Lens Cap; Mini D-SUB Signal Cable; Power Cord; Projector; Soft Case; IR Remote Control (RD-437E); Users Manual on CD-ROM (8 Languages); Quick Setup Guide (7 Languages)
Optional Accessories Ceiling Mount Kit (NP02CM); Lamp (NP08LP); Universal Ceiling Mounts (NP01/02/03/04/05UCM)
