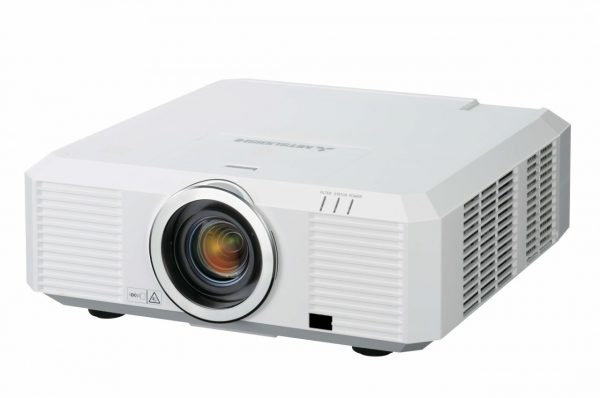

Mitsubishi XL7100U – LCD XGA (1024 x 768) 6000 ANSI


SKU: 175 Category:


With its high brightness and contrast, advanced image enhancing and control features, as well as an eco-conscious design that simplifies installation, the XL71000U from Mitsubishi Electric is ideal for delivering high-impact visual performance in large areas such as lectures halls or theatres.

High 6000 Lumens Brightness

The XL7100U is capable of displaying images at a high 6000 ANSI lumens. This level of brightness makes it ideal for use in large areas such as meeting rooms or lecture halls.

Inorganic LCD Panel

An inorganic LCD panel has been chosen for the XL7100U, which has an increased service life compared to conventional organic liquid-crystal panels.

Super Resolution Technology

This innovative processing algorithm has been designed in-house by Mitsubishi Electric. The technology analyses blurred components of low resolution images, then estimates how a high resolution version of the images would appear and corrects them for fine, detailed reproduction quality.


Original Image                                         Image processed by Super Resolution

High Performance Extra-Low Dispersion Lens

The XL7100U is equipped with a lens system comprised of 17 lenses in 13 groups, including an extra-low dispersion (ED) lens. Compared to commonly used glass lenses, the ED lens delivers improved image sharpness all the way to the edge of the screen.

Automatic Self-Cleaning Filter

Utilising the same technology found in Mitsubishi Electric air-conditioners, the self-cleaning filter prevents dust build-up in the projector. It can be set so the filter rolls every 500, 750 or 1,000 hours, and can also be operated manually.

Lamp Life up to 4000 hours

Designed with optimum lamp temperature control, the lamp XL7100U has a lamp life of up to 4000 hours*. This greatly reduces the overall cost of ownership, as the projector will require fewer lamp changes over the long run.

Network connectivity for remote access and control

The XL7100U is equipped with an RJ45 Ethernet connection, providing an A/V manager with the ease and convenience of remote monitoring and management. When used with Crestron® software, integrated control of up to 250 projectors is possible.The XL7100U is also compatible with AMX Device Discovery and PJLink™ software.


Natural Colour Matrix

In addition to conventional red (R), green (G) and blue (B) colour gradations, the intermediate colours of yellow (Y), magenta (M) and cyan (C) can each be controlled independently.

Quiet 30dBA operation

With a low fan noise of just 30dBA in low lamp mode, the XL7100U gives your audience presentations free of any noise distraction from the projector.

Geometric Correction

The XL7100U includes several different methods for correcting image geometry. Keystone correction fixes trapezoidal distortion, Cornerstone correction fixes diagonal distortion and Curved Surface correction allows for images to be portrayed accurately on curved or round surfaces such as pillars.

Curved Projection

Variety of Optional Lenses with Bayonet Mount

Users can choose between four different lenses to use, with each lens covering a wide range of projection ratios. The XL7100U also comes with a bayonet mounting system, making exchange or replacement of the lens quick and easy.

Product Specs

Display technology 0.8″ 3-LCD (with Micro Lens)
Resolution 1024 x 768 (Total 786,432 pixels)
Brightness (Maximum) 6000 ANSI Lumens
Contrast 2000 : 1 with Iris (on/off)
Zoom/Focus Powered Focus & Zoom (Zoom Ratio 1.8:1)
Projection Lens f= 24.0 – 43.2mm  , F= 1.8 – 2.6  3.0m@100″(Wide)
Off set axis

1 : 1 (default)   with Variable H+V Powered Lens Shift

Hd= +/-60% of Image Height (11:-1 ~ -11:1)

Wd= +/-30% of Image Width (Maximum values for vertical/horizontal lens shift cannot be set simultaneously)

 Picture Size 40 – 300 Wide (inch)
 Source lamp* 350W  (Shut Off Time 3000Hrs) with Low Mode (264W:Shut Off Time 4000Hrs)
Computer compatibility Resolution ; 640 x 400 (Expand) – 1024 x 768 (Real) – 1920 x 1200 (Compress), Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), (1080i(1250i 50Hz) is not available)
SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal)

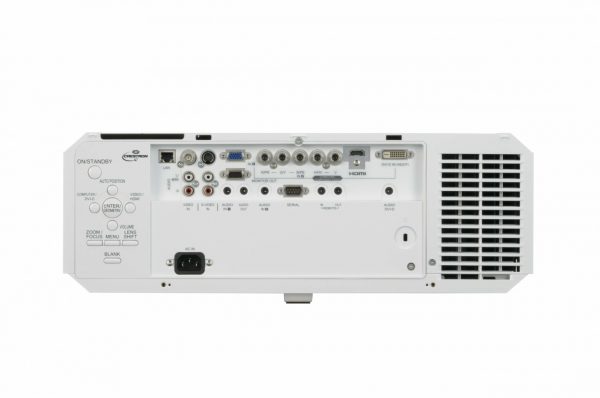

PC input terminals 5 BNC x 1, Mini D-Sub 15pin x 1; DVI-D(with HDCP) x 1; Audio: Stereo mini-jack (f3.5mm) x 3
Video input terminals Composite RCA (BNC) x 1, S-VIDEO (4pin) x 1, HDMI (ver1.3) x 1;  Audio: RCA (L/R) x 2
Output Terminals Mini D-Sub 15 pin x 1; Audio: Stereo mini jack (f3.5mm) x 1
Communication terminals

LAN(RJ-45) ; x 1 (Projector control)

RS-232C ; D-Sub 9pin (IN) (Direct command is available.)

Wired remote (IN) ; x 1 (f3.5mm Stereo mini jack)

Wired remote (OUT) : x 1 (f3.5mm Stereo mini jack)

Scanning Rate [H]15 – 100 kHz; [V]50 – 120 Hz; [Dot clock] max.162 MHz
Fan noise 30dBA (Lamp low mode)
Dimensions (W x H x D) 481 x 179 x 418mm (including detachable terminal cover)
Weight 10.5 kg
Power Consumption


0.3W in Standby Mode (Low), 1.8W when connected to a network via LAN (Low)

5W in Standby mode (Standard)

Power supply AC 100 – 240 V, 50/60Hz
Optional lamp VLT-XL7100LP
 Optional Accessories 4 types of interchangeable Projection Lens (OL-XL7100SZ / OL-XL7100LZ / OL-XL7100TZ / OL-XL7100FR)
Included accessories

AC Power Cable  :2.9m x 1

RGB cable :1.8m x1

RS-232C cable :1.8m  x 1

Remote unit (incl. battery) x 1

Terminal Cover x 1

User Manual (CD-ROM) : Eng / Fra / Ger / Spa / Ita / Chi/ Por

Safety Manual : Eng / Fra / Ger / Spa / Ita / Chi/ Kor / Por / Rus(incl. explanation for Quick Start)
