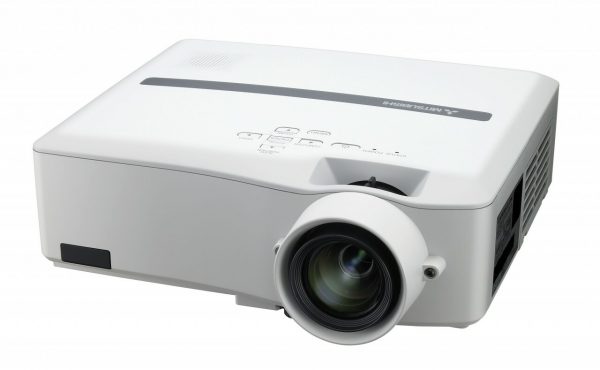

Mitsubishi XL2550U – LCD XGA (1024 x 768) 4500 ANSI


SKU: 178 Category:


The XL2550U XGA LCD Projector from Mitsubishi Electric is a versatile, high performance projector that is ideal for many types of applications. With its ultra-high brightness of 4000 lumens, it is very capable of engaging your audience attention even in environments with large amounts of ambient lighting. Additionally, it also includes support for an array of optional lenses, giving it the flexibility to project in any just about any type of room configuration.

The XL2550U is equipped with the newly developed BrightEra™ LCD panels. The panels include inorganic orientation film and vertical liquid crystal to bring improvements in reliability of light resistance. What’s more, our new drive system (double-speed field inversion drive) solves nagging liquid crystal orientation distortion caused by pixel line voltage gaps. The result is a high pixel aperture ratio, which increases light efficiency to a whole new level.

The XL2550U features Mitsubishi’s sRGB (Standard Red, Green and Blue) technology, which ensures uniform reproduction of colour coordinates regardless of the display device, to deliver better colour accuracy and clarity in the displayed image. It also includes a built-in Ethernet port for remote control and monitoring over a local area network.

The XL2550U includes other features which make it an excellent choice for use in permanent installs. These features include digital keystone correction (horizontal and vertical), allowing the user to set up in the most challenging presentation environments, a lamp life of up to 4000 hours, meaning fewer lamp changes for lower cost of ownership, and a side-access lamp replacement making it that much easier to replace bulbs in ceiling installations.

For vividness in presentations and versatility in installations, the XL2550U is the perfect solution.

Product Specs

Display technology

0.8″ 3-LCD (with Micro Lens Array)


1024 x 768 (total 786,432 pixels), 600 Video lines

Brightness (Maximum)

4000 ANSI lumens


600: 1  (on/off)

Colour Wheel 6 seg. Colour Wheel (R/G/B/W/Y/C)

Picture Size

40″ ~ 300″

Zoom/Focus Manual Focus & Zoom Lens (Zoom Ratio 1.27:1)
Projection Lens f=29-37mm , F1.7-2.0 (3.6-4.6m@100″)
Off set axis 9 up : 1 down (No variable lens shift)

Source lamp

261W / 2,000 hours (Normal mode)*
220W / 4,000 hours (Low mode)*

Computer compatibility

Resolution : 640 x 480 (Expand) – 1024 x 768 (Real) – 1280 x 1024 (Compress) – 1600 x 1200 (Re-Sampling); Sync on Green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), (1080i(1250i 50Hz) is not available)
SCART (RGB + 1V sync), only PC1 Terminal)

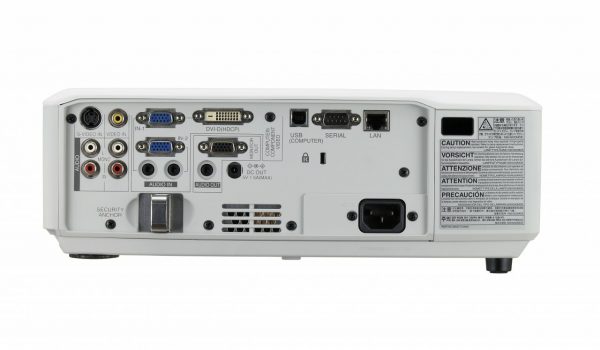

PC input terminals

PC : Mini D-Sub 15pin  x 2, DVI-D(with HDCP) x 1, Audio : Stereo mini jack (ø3.5mm) x 2

Video input terminals

Composite RCA x 1, S-Video x 1, Audio RCA (L,R) x 2

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm); DC OUT : 5V 1.5A (Max)

Communication terminals

LAN (RJ-45) : x 1 (Projector control), RS-232C : D-Sub 9pin x 1 (Direct command is available.), USB : for Mouse Cursor Control

Scanning Rate [H] 15 – 100 kHz, [V] 50 – 120 Hz, [Dot clock] max.140 MHz
Audio Speaker 3W Mono
Power consumption 380W/3.9A
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

29 dB(A) (Lamp low mode)

Dimensions (W x H x D)

333(W) x 113(H) x 272(D) mm   (exclude height adjuster)


4.7 kg

Optional Lenses OL-XL2550SZ  (short-throw), OL-XL2550LZ(long-throw), OL-XL2550TZ (Tele-zoom)

Replacement lamp


Included accessories

AC Power Cable, VGA Cable, Composite Cable, USB Cable, Remote Control (with batteries), User Manual, Safety Manual
