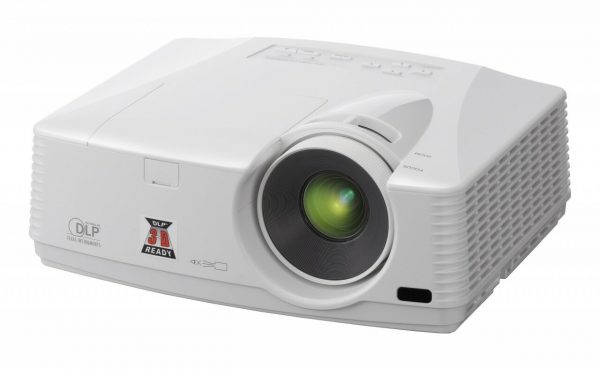

Mitsubishi XD550U – DLP XGA (1024 x 768) 3000 ANSI


SKU: 181 Category:


The XD550U from Mitsubishi Electric delivers excellent picture quality, ease of operation and advanced connectivity in a light, portable package.

High Brightness and Contrast Ratio

With a 3000 lumen brightness, images can be seen clearly without lowering the light levels in a room. The newly introduced DarkChip3 in the XD550U ensures rich contrast with deep blacks, pure whites and vibrant colours.

USB/LAN Display

The XD550U can display images from several types of source inputs including VGA, USB and LAN/Wireless LAN (W-LAN). When using the LAN connection, up to four computers can be connected to the one projector simultaneously, with the projected image divided into quarters for each computer input.

Remote Desktop

When using the LAN connection with the XD550U, a USB mouse or USB keyboard can be connected to the projector, enabling direct access via the connected computer to the internet or another application.

Computer Free Presentations with JPEG Viewer

Using  “PtG Converter”, PowerPoint presentations can be converted into a special format and saved on a USB storage device. The USB device can then be connected directly to the projector to slideshows or animation effects.


Network Connectivity – The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. When used with Crestron® Room View,® integrated control of up to 250 projectors is possible. The XD550U is equipped with AMX Device Discovery for simplified device management and is also compatible with  PJLink™.

Visual PA system – Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. Ideal for broadcasting important information to multiple rooms at a school or campus.

Built-in 10W Speaker with Audio Mix Feature – A high-volume 10W speaker is built in to the projector, eliminating the need for an external speaker in a classroom environment. The “Audio Mix” allows the user to adjust the volume of two separate audio outputs (e.g a wireless microphone and DVD player) independently, for greater audio control during presentations.



Top Loading Lamp

Quiet 28dBA Operation (in Low Mode)

Lightweight Design  – only 3.5kg

Stand-by Audio/Audio Pass-through

3D Ready

Up to 6000 hour lamp life (in Low Mode)

Filter-free Design

Auto Power Off

Stand-by Power under 0.5W

Product Specs

Display technology

0.55″ 1-Chip DMD, 12deg.LVDS, DDP2431


1024 x 768 (Total 786,432 pixels)

Brightness (Maximum)

3000 ANSI lumens



Colour Wheel 5 segment colour wheel (R/G/B/W/Y)

Picture Size

40″ ~ 300″

Zoom/Focus Manual Focus & Zoom Lens (Zoom Ratio 1.6:1)
Projection Lens f= 16.0~25.6 mm, F=2.6 ~3.2,  (2.9-4.7m@100″)
Off set axis 7.9:-1 , Hd=0.23m up @100″

Source lamp

230W / 3,000 hours (Normal mode)*
190W / 6,000 hours (Low mode)*

Computer compatibility

Resolution ; 640 x480(Expand)  – 1024 x 768(Real) – 1600 x 1200 (Compressed);    Sync on green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60,           Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p(1125i/p 50Hz),

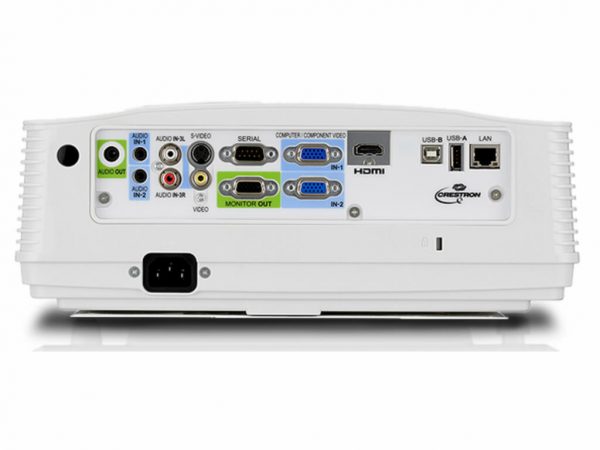

PC input terminals

RGB:mini D-sub 15 pin x 2; Digital: HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm)

Video input terminals

Composite RCA x 1, S-Video x 1

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

RS-232C; D-sub 9pin x 1, LAN RJ-45 x 1 (Projector Control); USB type-A ; Wireless Display, PC Less Presentation; USB type-B ; USB Display

Scanning Rate  [H] 15 – 105 kHz, [V] 50 – 120Hz; [Dot clock] max.165 MHz
Audio Speaker 10W Mono x 1
Power consumption 340W (maximum) / less than 0.5W in power saving mode (if LAN not connected)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

28 dB(A) (Lamp low mode)

Dimensions (W x H x D)

325 x 113 x 258 mm (excluding all protrusions)


3.5 kg

Optional lamp


Included accessories

AC Power Cable, VGA Cable, Card Remote Control (with battery), User Manual CD, Quick Startup Guide & Safety Manual, Soft Carry Bag, Lens Cap
