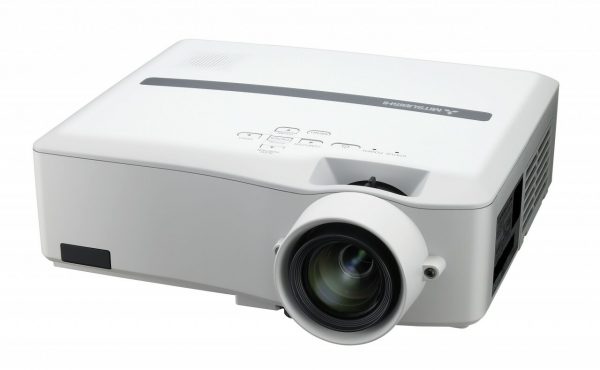

Mitsubishi WL2650U – 3LCD WXGA (1280 x 800) 3500 ANSI


SKU: 184 Category:


With a high brightness of 3500 ANSI Lumens and a native widescreen resolution, the WL2650U is ideal for presentations in large multipurpose, conference, and meeting rooms.

Supporting the shift towards wide screen PC monitors and laptops, the WL2650U boasts a native WXGA (1280 x 800) pixel resolution, allowing users to display more information and giving your presentations greater visual impact.

Other features include sRGB technology, which ensures true colour reproduction by matching hue variations in the colour spectrum, as well as Color Enhancer and 3D Color Uniformity to give you uniform hues across your entire screen. Colour Wall Support enables you to maintain those true colours even when projecting on coloured walls, and the 600:1 contrast ratio will give you clear images even in large spaces or rooms with lots of light.

The integrated LAN interface and PJLink with ProjectorView software allow remote monitoring and management of the WL2650U over your network, while the password lock protection and security hook prevents unauthorised access to the projector when left unsupervised in open locations such as classrooms or meeting rooms. The 4000 hour lamp life (in low mode) translates to greatly reduced running costs as fewer lamp changes are needed, and the WL2650U has a fan noise of just 29 dB(A) (in low mode) for distraction free presentations.  The WL2650U also has a number of optional lenses available, allowing you to choose the lens that best fits your installation requirements.

With all these features and more, the WL2650U is the perfect choice for all your widescreen presentation needs.

Product Specs

Display technology

0.75″ 3-LCD (with Micro Lens)


1280 x 800 (Total 1,024,000 pixels)

Brightness (Maximum)

3500 ANSI lumens



Zoom/ Focus

Manual Focus & Zoom Lens (Zoom Ratio 1.2:1)

Projection Lens

f=24-29mm , F1.7-1.9 (3.2-3.8m@100″)

Offset Axis

40 up : 1 down (No variable lens shift)

Picture Size

40″ ~ 300″

Source lamp

261W / 2,000 hours (Normal mode)*
220W / 4,000 hours (Low mode)*

Computer compatibility

Resolution ; 640 x 480 (Expand) – 1280 x 800 (Real) – 1920 x 1080 (Compress); Sync on Green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i/p (525i/p), 576i/p(625i/p), 720p (750p 50/60Hz), 1080i (1125i 50/60Hz), 1080p (1125p 50/60Hz), (1080i (1250i 50Hz) is not available) SCART (RGB + 1V sync)

Digital Keystone Vertical: MAX =/- 35 deg, Horizontal: MAX =/- 25deg

PC input terminals

PC : Mini D-Sub 15pin  x 2, DVI-D(with HDCP) x 1; Audio: Stereo mini jack (ø3.5mm) x 2

Video input terminals

Composite RCA x 1, S-Video x 1: Audio : RCA (L, R) x 2

Output terminals RGB : Mini D-Sub 15pin x 1; Audio : Stereo mini jack (ø3.5mm) x 1
Communication Terminals


LAN (RJ-45) : x 1 (Projector control); RS-232C : D-Sub 9pin x 1 (Direct command is available.); USB: for Mouse Cursor Control

Scanning rate


[H] 15 – 100 kHz; [V] 50 – 120 Hz; [Dot clock] max.162 MHz

Audio Speaker 3W Mono
Height Adjuster  One Push Front leg ( -1 to 7 degree variable )
Power Consumption  380W / 3.9A


333 (W) x 113 (H) x 272 (D) mm   (excluding height adjuster)


4.7 kg

Power supply

AC 100 – 240 V,  50/60Hz

Fan noise

36 dB(A) (Low Mode 29dB(A))
Spare lamp VLT-XL650LP
Accessories AC Power Cable; AV cable 1.5m (3 wires); RGB cable: 1.8m; USB cable 1.8m (for Mouse); RS-232C cable 1.8m; Remote Unit ( incl. Battery ); User Manual CD  (Eng/Fre/Ger/Ita/Spa/Chi/Port); Safety Manual (incl. explanation for Quick Start)
