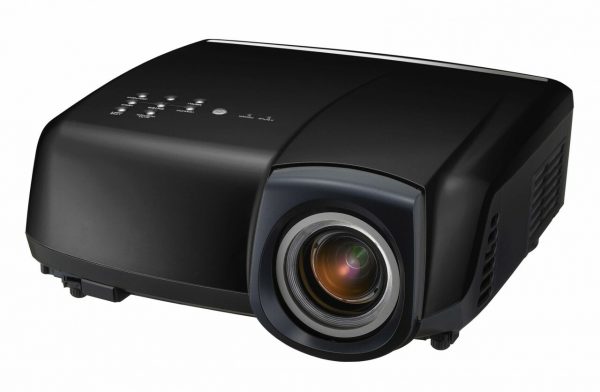

Mitsubishi HC4000 – DLP Full HD 1300 ANSI


SKU: 173 Category:


The Mitsubishi Electric HC4000 high definition projector, with its native 1080P (1920 x 1080 pixel) resolution, 1300 ANSI lumens brightness and 3600:1 contrast ratio, delivers superb picture quality at an affordable price.


The HC40000 1080P projector comes equipped with all the great features you’ve come to expect from our Home Theatre projectors:

Latest generation 0.65″ DLPTM  chip with DarkChip3



 Latest DLPTM chip with new DMD

One of the key features of the HC4000 home theatre projector is its state-of-the-art DLP chip, which incorporates a new digital micromirror device (DMD) comprised of densely embedded micromirrors. A smaller mirror cavity diameter and narrower gaps between mirrors improves the aperture ratio of the chip for a smoother image. Reflective light diffusion is also greatly reduced, which translates to a higher contrast ratio for better overall blacks, whites and colour reproduction.



1300 ANSI Lumens Brightness – 3600:1 Contrast Ratio


The HC4000 home theatre projector uses a fixed iris, providing enhanced brightness and contrast for images. Even in a living room during the day with the curtains or blinds closed, high definition images are clear and easy to view.



1.5x Short Throw HD Zoom Lens

Short Throw HD Zoom Lens

The newly designed short throw zoom lens in the HC4000 provides excellent focusing performance with 1.5x magnification of high definition images. The 4-cluster, 13-piece all glass lens ensures images retain their sharpness right to the edges of the screen.




Six Segment Colour Wheel and Built-in Colour Management

Video sources are reproduced with more true-to-life colours, thanks to the HC4000’s six segment colour wheel. The built-in colour management function also allows users to adjust individual colours to suit their needs.

DDP3021 Full 10-bit Panel Driver

The built-in DDP3021 10-bit panel driver delivers approximately four times the gradation of 8-bit models, providing smoother dark tones.

Equipped with 5000-hour* long-life lamp


 Long-life lamp

The optimum design for temperature control of the new colour light source lamp, as well as Mitsubishi Electric’s unique lighting timing, have extended the useful life of the lamp to a maximum of 5000 hours.



Product Specs

Display technology 0.65″ 1-Chip DMD, 12deg.LVDS, DC3, DDP3021
Resolution 1920 x 1080 (Total 2,073,600 pixels)
Brightness (Maximum) 1300 lumens
Contrast 3600 : 1, fixed iris
Picture Size 50″ ~ 300″
Source lamp 230W (Shut Off Time 3000Hrs) with Low Mode
(190W : Shut Off Time 5000Hrs)
Computer compatibility Resolution ; 640 x480(Expand)  – 1920 x 1080(Real) – 1600 x 1200 (Compressed);
Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz),
(1080i(1250i 50Hz) is not available), 1080P(50Hz,60Hz,24Hz)

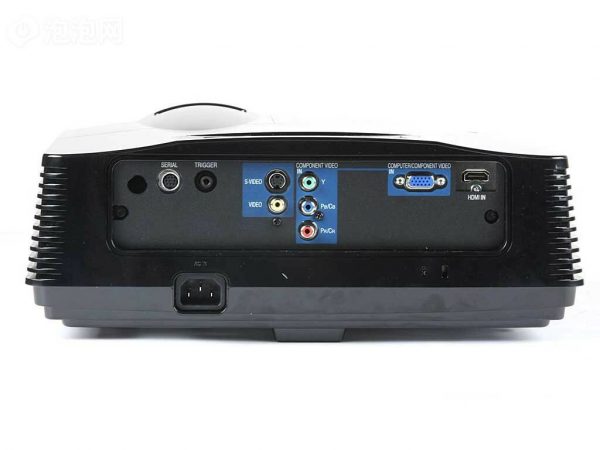

PC input terminals Mini D-Sub 15pin x 1
Video input terminals HDMI x 1, RCA x 1, S-VIDEO x 1, RCA Component (Y,PB,PR) x 1
Communication terminals RS232C; Mini DIN 8pin x 1
Fan noise 25 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345(W) x 129(H) x 270(D)mm
Weight 3.6kg
Power supply AC 100 – 240 V, 50/60Hz
Optional lamp VLT-HC3800LP
Included accessories RGB PC Cable (15 pin D-sub) x 1; Power Cord x 1;  Remote Control (with Batteries); Lens Cap; Lamp replacement attachment; User Manual Paper; User Manual CD; Safety Manual
