Mitsubishi EX220U – DLP XGA (1024 x 768) 2500 ANSI


SKU: 182 Category:


With its advanced DLP chip, high brightness of 2500 lumens and superior colour reproduction technology, the Mitsubishi Electric EX220U portable projector offers premium picture quality at an entry level price.

The EX220U XGA portable projector delivers an outstanding 2500 ANSI lumens brightness in a lightweight 2.4kg design. Additionally, the projector combines the features of an advanced DLP® chip, a 6-segment colour wheel (R,G,B,W,Y,C) and BrilliantColor™ technology for incredible pictures with rich and vibrant colours.

Thanks to its compact size and the inclusion of a Direct Power Off feature, the EX220U allows for simple transport, set-up and pack up, making it ideal for presentations on the go. It includes dual VGA inputs for enhanced connectivity, while the filter-free design and lamp life up to 4000 hours mean less downtime for maintenance.

If you need great features and picture quality in a small package, the EX220U projector is more than up to the task.

Product Specs

Display technology

0.55″ 1-Chip DMD, DDP2430/2431


1024 x 768 (total 786,432 pixels)

Brightness (Maximum)

2500 ANSI lumens

Contrast Ratio


Colour Wheel 6seg. Colour Wheel (R/G/B/W/Y/C)

Picture Size

40″ ~ 300″

Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.1:1) , without Zoom Trigger
Projection Lens  f=21.1~23.0 mm, F=2.6 ~2.8,  (3.8-4.2m@100″)
Off set axis 11:-1 , Hd = 0.15m up @100″

Source lamp

185W / 3,000 hours (Normal mode)*
160W / 4,000 hours (Low mode)*

Computer compatibility


Resolution ; 640 x480 (Expand)  – 1024 x 768 (Real) – 1600 x 1200 (Compressed), Sync on green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i (1125i/p 50Hz)

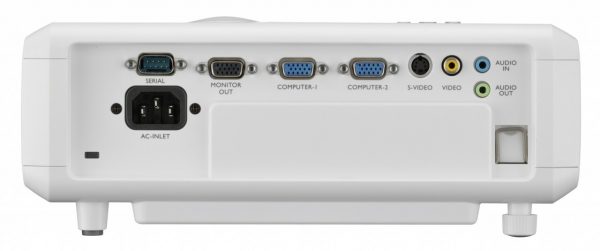

PC input terminals

RGB: mini D-sub 15 pin x 2; Audio: Stereo mini jack x 1(3.5mm)

Video input terminals

Composite RCA x 1, S-Video x 1

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

RS-232C: 9pin x 1;

Scanning Rate [H] 31 – 92 kHz, [V] 48 – 85 Hz; [Dot clock] max.170 MHz
Audio Speaker 2W Mono
Power consumption 315W (less than 1W in Power Standby mode)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

29dB(A) (Lamp low mode)

Dimensions (W x H x D)

282 x 92 x 229 mm (excluding all protrusions)


2.4 kg

Included Accessories

AC Power Cable, VGA Cable, Card Remote Control (with battery), User Manual, Safety Manual, Quick Startup guide

Optional Accessories

Replacement Lamp (VLT-EX240LP)
