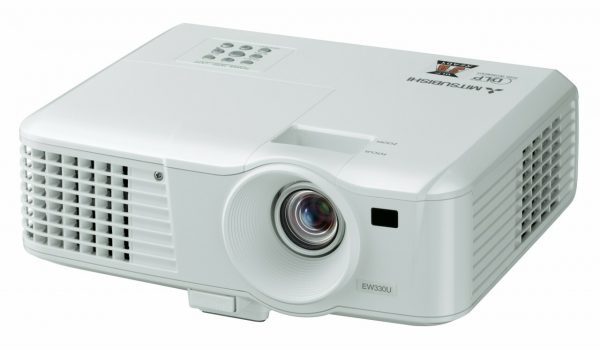

Mitsubishi EW330U – DLP WXGA (1280 x 800) 3000 ANSI


SKU: 187 Category:


If you’re after a projector that provides brilliant widescreen images in a lightweight, easy to transport design, then the EW330U WXGA portable projector from Mitsubishi Electric is just what you’re looking for.

The Mitsubishi Electric EW3300U data projector boasts a WXGA (1280 x 800 pixel) resolution, providing excellent compatibility with the growing trend towards wide-screen laptops and computer displays. It also allows users to display windows side-by-side, or screen DVDs in their native resolution. With a 3000 ANSI lumens brightness and a 2000:1 contrast ratio, the EW3300U is ideal for use as a classroom or conference room projector, delivering clear, bright images even with ambient light present.


1.3x Zoom Lens

This powerful zoom lens ensures the projection of large-screen images even when space is limited, for greater flexibility in projector placement.

BrilliantColor™ technology, Six segment colour wheel

For better, more accurate colour reproduction, the EW330U data projector features BrilliantColor™ technology, as well as a six segment colour wheel and optimised colour coding algorithms.

Long Lamp life – Filter Free design

Thanks to it’s optimised lamp temperature control, the EW3300U has a lamp life of up to 5000 hours (in low mode), meaning fewer lamp changes and lower cost of ownership. The filter free design also helps to increase the life of the lamp, as filter clogging can significantly lower lamp life.

Network Compatibility

The EW330U is equipped with an RJ45 terminal for remote projector management and control over a local area network. It is compatible with Crestron® RoomView software, allowing for the integrated control of up to 250 projectors.

3D Ready

Captivate your audience with high-impact 3D presentations using the EW330U. 3D video content must be filmed in field-sequential format and active shutter glasses are required.

Whisper Quiet performance

With an operating noise level of just 29dBA (in low mode), you can be assured of eye catching presentations free of distraction from the projector.

Product Specs

Display technology

0.65″ 1-Chip DMD, DDP2430/2431


1280 x 800 (Total 1,024,000 pixels)

Brightness (Maximum)

3000 ANSI lumens



Colour Wheel 6 seg. Colour Wheel (R/G/B/W/Y/C)

Picture Size

40″ ~ 300″

Zoom/Focus Manual Focus & Zoom Lens (Zoom Ratio 1.3:1)
Projection Lens f=16.9~21.9 mm, F=2.6 ~2.9,  (2.6-3.4m@100″)
Off set axis 41.0:-1 , Hd = 0.03m up @100″

Source lamp

230W / 3,500 hours (Normal mode)*
170W / 5,000 hours (Low mode)*

Computer compatibility

Resolution ; 640 x480 (Expand)  – 1280 x 800 (Real) – 1600 x 1200 (Compressed),  Sync on green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p(1125i/p 50Hz),

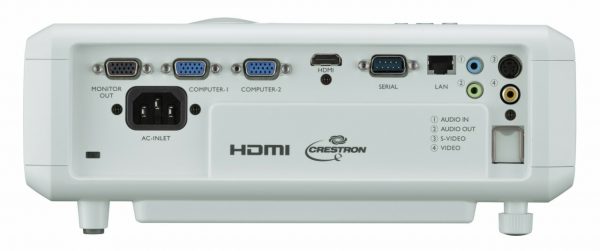

PC input terminals

RGB:mini D-sub 15 pin x 2; Digital: HDMI (ver1.2) x 1; Audio: Stereo mini jack x 1 (3.5mm)

Video input terminals

Composite RCA x 1, S-Video x 1

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

RS-232C; D-sub 9pin x 1, LAN RJ-45 x 1 (Projector Control)

Scanning Rate  [H] 31 – 99 kHz, [V] 48 – 120Hz; [Dot clock] max.170 MHz
Audio Speaker 2W Mono x 1
Power consumption 330W (maximum) / less than 1W in power saving mode (3W if LAN connected)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

29 dB(A) (Lamp low mode)

Dimensions (W x H x D)

282 x 94 x 229 mm (excluding all protrusions)


2.5 kg

Optional lamp


Included accessories

AC Power Cable, VGA Cable, Card Remote Control (with battery), User Manual CD, Quick Startup Guide & Safety Manual, Soft Carry Bag
