4 x 120W Power Amplifier USB/RS232 Control w mini DSP
4 x 120W Power Amplifier
USB/RS232 Control w mini DSP
• 4 x 120W power amplifier
• 4 ohm, 70V and 100V output options
• Class D topology
• Programmable via PC UI application
• USB and RS232 control
• Mini DSP – Volumes Controls, Input / output routing, High and low shelf filtering, Compressor / limiter, Filtering, Pink noise / sine wave generator, Mutes, Inversion
• Mute control via contact

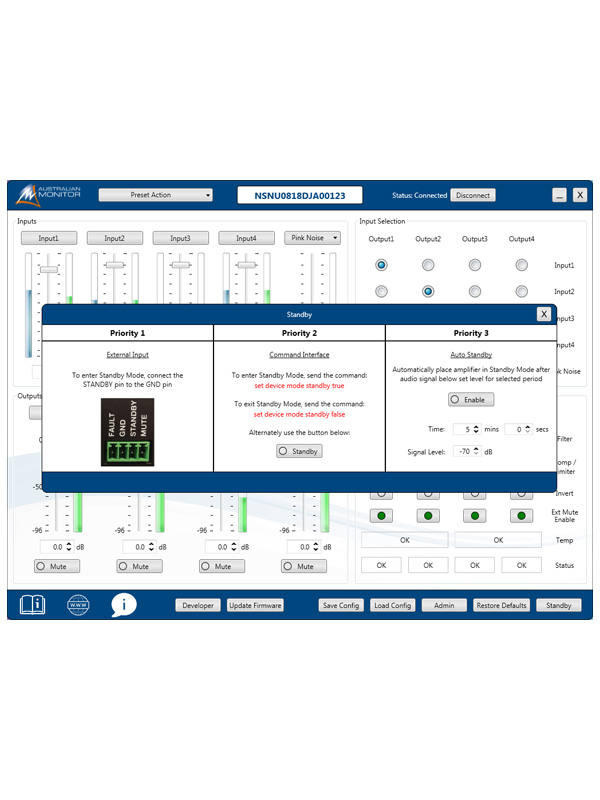

• Standby control via contact
• Fault status via contact
Output Power per Channel | 120W | Frequency Response | 100Hz – 16kHz |
Output Channels | 4 | THD+N | < 0.2% (-3dB) |
Output Mode | 4 Ohm-70V-100V | Signal to Noise Ratio | > 92dB |
Input Voltage | 100-240Vac 50-60Hz | Input Sensitivity | 1Vrms |
Mounting | 2RU | Cooling | Fan-assisted |
Warranty | 5 years |
Product Dimensions (W x D x H) | 483mm x 389mm x 89mm | Shipping Dimensions (W x D x H) | 546mm x 491mm x 197mm |
Net Weight | 14.0 Kg | Shipping Weight | 15.6 Kg |
GTIN EAN | 9323383019942 |
Blue Slow Flash = Standby Mode (On for 50ms, Off for 4s) Blue Flashing = Error Mode (LED Off for 2s followed by a flash count of the error code). Refer to the Fault Finding section of this manual to fix any errors displayed.
Yellow On = Amplifier temperature hot
Red Flashing = Amplifier over temperature
Red On = Amplifier protect
CLASS-D AMPLIFIER
The HSP amplifiers use an efficient Class-D amplifier topology allowing a greater power density with a much lower weight.
All amplifier channels offer 100V, 70V and 4Ω output options so you can choose the output configuration to match your application.
INTEGRATED MINI DSP
The HSP amplifiers include a mini DSP engine with the following features,
• Input/Output Router

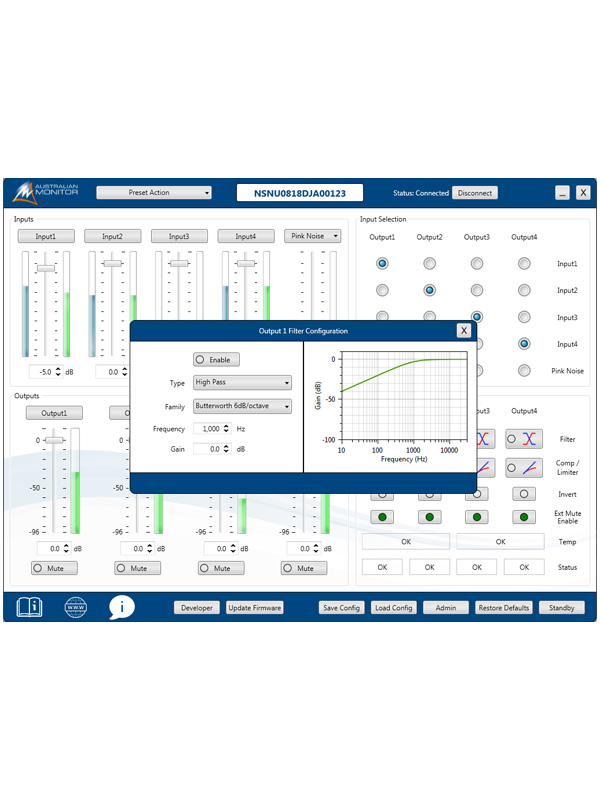

• High, Low Pass Filters

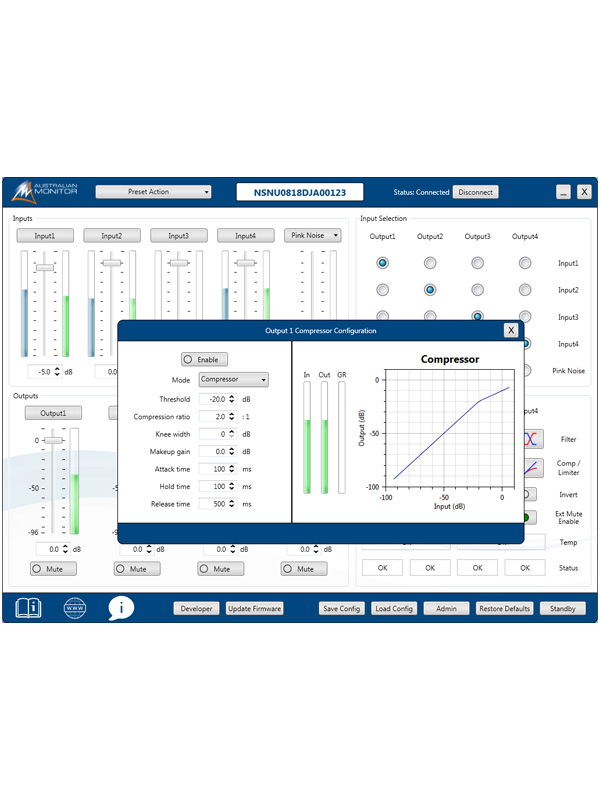

• Compressor/limiter
• Mute
• Inversion

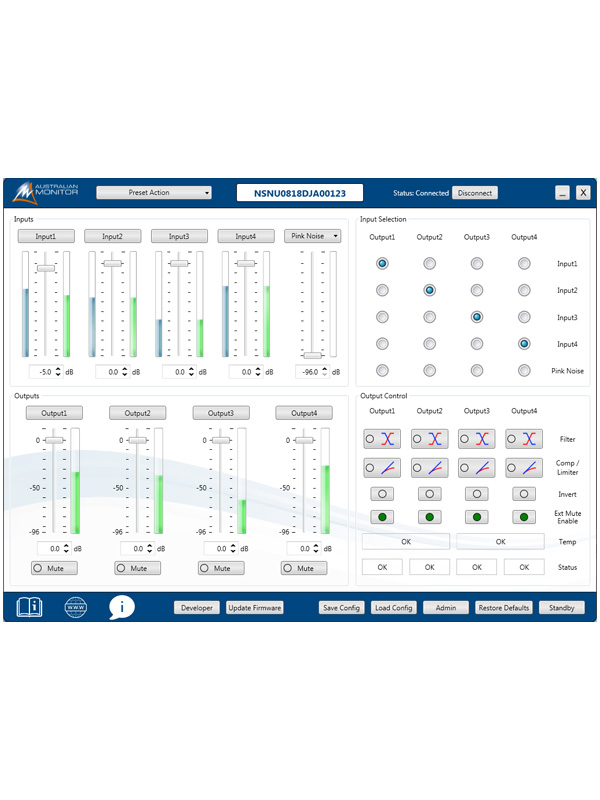

PC CONTROL APPLICATION
Take control of your amplifier using the HSP Control Software.
The control software allows you to modify signal routing, DSP settings, channel naming, retrieve status information and more.
Download it now from the download section of this page and see what the HSP amplifier can do.

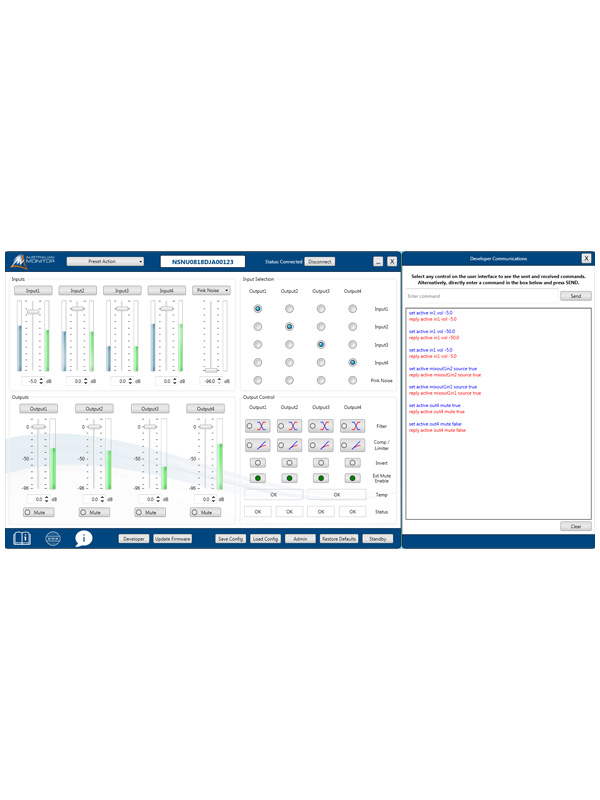

3RD PARTY CONTROL
Take control of your amplifier using the HSP Control Software.
The control software allows you to modify signal routing, DSP settings, channel naming, retrieve status information and more.
Download it now from the download section of this page and see what the HSP amplifier can do.
