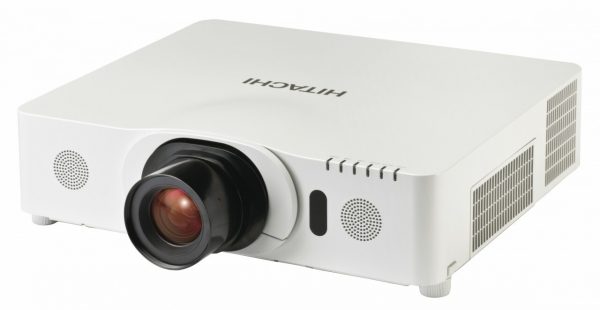

Hitachi CPX8150 – LCD CGA (1024 x 768) 5000 ANSI


SKU: 148 Category:


High Performance Large Venue LCD Projector

The CPX8150 is a high performance projector suited for use in large venue spaces. Perfect for use in conference halls or auditoriums with flexible installation and outstanding features such as clear and bright images at 5,000 lumens, networking capabilities, superior lens shift for convenient installation and a variety of optional lenses available in addition to the standard lens.

Key Features

  • Brightness: 5,000 Lumens
  • XGA Resolution: 1,024 x 768 color pixels
  • Contrast ratio: 3,000:1
  • 3 Optional Lenses and 1 Standard Lens
  • Superior Lens Shift
  • Motorised zoom
  • Auto vertical and manual horizontal keystone correction
  • Advanced network functions
  • Security functions

Product Specs

Image Quality
Resolution XGA (1024 x 768)
Brightness 5000 lumens
Contrast Ratio 3000:1
No. of Colors 16.7 million colors
Aspect Ratio(s) Native – 4:3
Other(s) – 16:9 and 16:10 compatible
Display Type LCD; 3LCD, 3 chip technology
Data Signals Native: 1024 dots x 768 lines
Video Signals 480i, 576i, 480p, 720p, 1080i, 1080p NTSC, PAL, SECAM, PAL-M, N/ NTSC4.43
Video Resolution
H Sync 15 kHz – 106 kHz
V Sync 50 Hz – 120 Hz
3D Ready No
Dot Clock

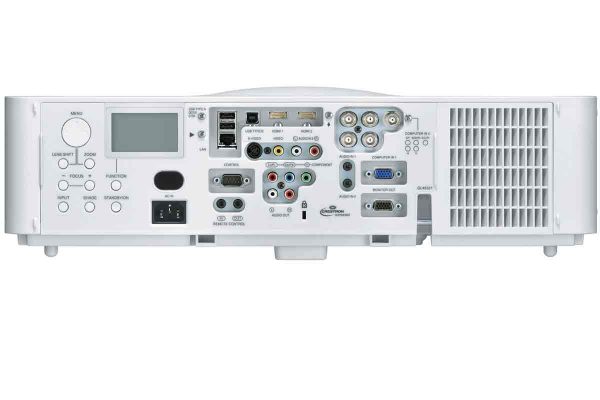

  • Component, BNC (Y,Pb,Pr) x 3
  • Composite Video, BNC x 5
  • HDMI (High-Definition Multimedia Interface for digital video and digital audio) x 2
  • S-Video (Mini DIN 4-pin (Y/C)) x 1
  • Ethernet (Network addressable, RJ45) x 1
  • VGA (Analog data, mini D-Sub 15-pin) x 1
  • Phone Jack: RS232 Control x 1
  • USB Type A x 2
  • USB Type B x 1
  • Stereo Mini-Jack (3.5 mm) x 2
  • Analog Audio (RCA) (R-L) x 1
  • VGA (Analog data, mini D-Sub 15-pin) x 1
  • Analog Audio (RCA) (R-L) x 1
Built-in Audio 16W (8W+8W) stereo
Projection Lens
Lens F – 1.5 mm / motorized zoom, focus and lens shift
Image Size
Throw Distance
Throw Ratio 1.5 – 2.2:1
Keystone Corr. +/- 35º with standard lens
Lens Shift
Proj. Methods Front, Rear and Ceiling
Dimensions 19.6″ x 15.6″ x 5.3″ (W x H x D)
Unit Weight 18.74 lbs.
Power Supply AC90 – 132V / AC198 – 264V (50/60 Hz)
Power Consumption 245
Ecomode Yes
(Brightness: 5000 lumens; Lamp life: 4000 hours; Power: 245; Noise: 29 dB)
FCC Class A
Audible Noise 35.0 dB
Lamp 245w
Lamp Life 2500 hours
Replacement Lamp
Included Accessories
Items Included Remote control with two AA batteries, power cord, computer cable, one standard SL702 lens, lens cap, user’s manuals, security label, application software (CD x 1), wireless USB cover
Remote Control Remote Control Included
Carry Case Carrying Case NOT Included
Projector 3 Years Parts and Labor
Lamp 90 days or 250 hours of use
