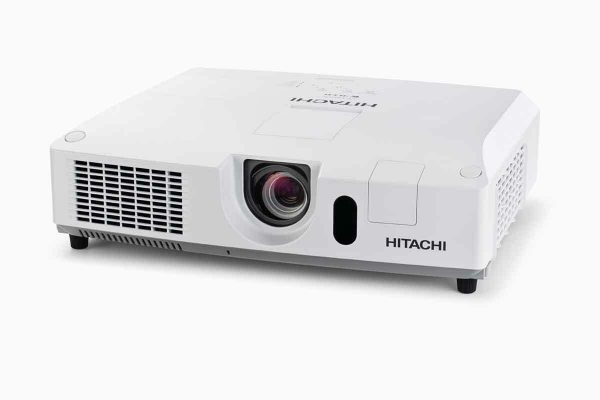

Hitachi CPX5021N – LCD XGA (1024 x 768) 5000 ANSI


SKU: 149 Category:


Double, triple or quadruple the brightness levels with Hitachi’s latest Multi Purpose stackable projectors. These versatile and feature rich models can either be stacked vertically or positioned horizontally to deliver superb images at a fraction of the cost of higher brightness models.

  • Brightness: 5000 ANSI Lumens
  • Resolution: XGA
  • Contrast Ratio: 2000:1
  • Extended Hybrid Filter life of up to 5000 hours
  • Lamp life: 5000 hours (Eco Mode)*
  • Advanced networking features
  • Full connectivity
  • Perfect Fit

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Security featuresSecurity features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Low TCOLow TCO – Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
  • PC-less PresentationsPC-less Presentations – Simply plug in a memory stick, SD card, or even a portable hard disk drive and present without the need of a laptop.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • AMX Device DiscoveryAMX Device Discovery – When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Long Life LampLong Life Lamp – Using Eco Mode, lamp life is extended to more than 6,000 hours – equivalent to the projector being used for three hours a day over a period of ten years.
  • Template FunctionTemplate Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
  • Virtually Maintenance FreeVirtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Quick On/OffQuick On/Off – Plug in, turn on and present. The Quick On/Off feature and automatic resolution equals fast set-up
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Horizontal Keystone CorrectionHorizontal Keystone Correction – Correct misaligned images with horizontal keystone correction.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs


LCD Panel 0.63″ (1.6cm) P-Si TFT x 3
Resolution XGA
Brightness Normal Mode (5000 ANSI Lumens)
Eco Mode (3500 ANSI Lumens)
Colour Light Output 5000 ANSI Lumens
Contrast Ratio 2000:1
Lens Manual focus, manual zoom x 1.7
Lamp Wattage 245W UHP
Lamp Life 3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)*
Diagonal Display Size 30~300″ (76~762cm)
Number Of Colours 8 Bit/colour, 16.7M colours
Lens Shift Vertical 10:0~4:1, Horizontal 11:9~9:11
Optical Keystone 10:1~4:1 Upward shift
Distance To Width Ratio (:1) 1.5 (Wide), 2.5 (Tele)


Computer Compatibility VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA, MAC 16″
Video Compatibility NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43
SDTV: 576i@50Hz, 480p@60Hz, 480i@60Hz
HDTV: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz


Speakers 16W
Basic Functions Freeze, Magnifying, Blank, Auto adjustment, Search
Picture Adjustments Equalizing Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction, Perfect Fit
Digital Keystone Vertical Auto, Horizontal Manual
Advanced Features MyScreen, My Memory, My Button, Blackboard/Whiteboard mode, Input Source Naming (English), Resolution Preset, PC-Less Presentation, Template mode, Audio pass through, Day time mode, Closed caption (for NTSC & component 480i only)
Outward Easy lamp replace from top, Air filter on side
Power On & Off Quick On, Direct On, Auto Off
Security Systems PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar
Security Systems PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar
Network Network Presentation (PC still picture transfer), Configuring and Controlling the Projector via a Web Browser, Failure and Warning Alerts via E-mail, Projector Management via SNMP, Controlling the Projector via Scheduling, My Image (still image transfer), Display Command Control via the Network, Displaying text data transferred via the network, AMX Device Discovery, Network Bridge, PJLink™, Delivery of contents via LAN
OSD Languages English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)

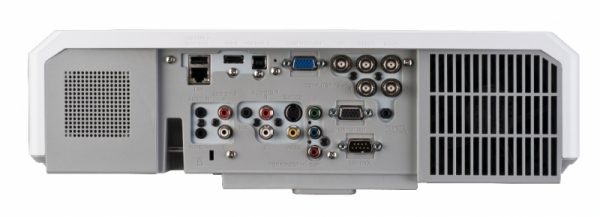

Digital Input 1 x HDMI
Computer Input 1 x 15-pin Mini D-sub, 1 x pair BNC
Computer Output 1 x 15-pin Mini D-sub
Video Input 3 x Component RCA
1 x RCA Jack for composite
1 x S-Video
Audio Input 2 x Stereo Mini Jack
1 x pair RCA (L/R)
1 x Microphone Jack
Audio Output 1 x pair RCA (L/R)
USB Type A 1 x USB Type A (for PC-less Presentation)
USB Type B 1 x USB Type B (for USB display, USB mouse control)
Wired Network 1 x RJ-45
Control 1 x 9-pin D-Sub for RS-232C Control
Wired Remote Control Port Yes


Power Supply 100~120/220~240V, auto switching
Power Consumption 360W
Power Consumption Eco/Standby


Dimensions (W X H X D) 400 x 103 x 318mm (excluding feet and extrusions)
Weight 4.6Kg
Noise Level 30dB (Eco Mode)/36dB (Normal Mode)
Air Filter Hybrid


  Lamp indicator light, Power indicator light, Security indicator light


  UL60950/C-UL, FCC Part 15 Class B, CE, AS/NZS CISPR22 Class A


  Remote control with batteries, Computer cable, Power cord, Lens cap, User manual (detail & concise)


Replacement Lamp DT01171


Projector Warranty 3 Years
Lamp Warranty 6 Months**
  **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated).
