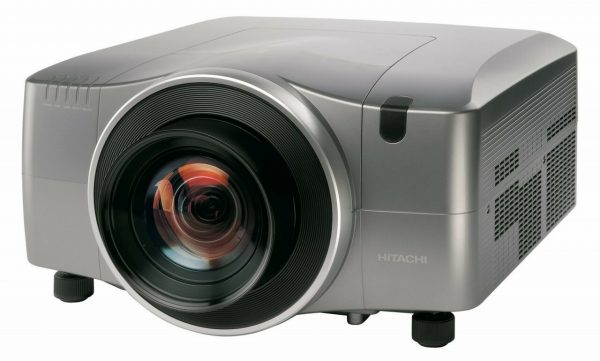

Hitachi CPWX11000 – LCD WXGA (1280 x 800) 6500 ANSI


SKU: 146 Category:


Uncompromising quality, flexibility of installation and extended product life are features on offer with our Professional Series Installation Projectors. Life of the product is extended considerably with virtually maintenance free inorganic LCD panels and polarizer filters. A wide lens shift and a wide variety of optional lenses provide greater range of movement and projection distances. This series also boasts superb quality with an impressive contrast ratio of 2500:1 (with Iris), a 10-bit digital signal processor and a high quality scaler chip on board.

  • HD Ready
  • Brightness: 6500 ANSI Lumens
  • Resolution: WXGA (1366 x 800)
  • Contrast ratio: 2500:1
  • Super Hybrid FIlter: 20,000 hour cleaning cycle
  • Lamp life: 4000 hours (Eco Mode)*
  • Wired networking feature
  • 6 optional lenses
  • Wide lens shift

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Super Hybrid FilterSuper Hybrid Filter – The new Super Hybrid Filter is the best you’ll find on the market. It lasts an exceptional 6000 hours – to make maintenance less frequent and reduce replacement costs.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Low TCOLow TCO – Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
  • Optional LensesOptional Lenses – Installations are more flexible with a range of optional bayonet lenses. Choose from Fixed Short, Short, Long and Ultra Long throw lenses, designed to suit different requirements.
  • Wider Lens ShiftWider Lens Shift – With Hitachi’s lens shift technology, the image range of movement grows even wider allowing the projector to be placed freely among any number of possible locations.
  • Vertical ProjectionVertical Projection – Images can be projected at 90 degrees up or down, opening up a whole new range of applications.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Long Life LampLong Life Lamp – Using Eco Mode, lamp life is extended to more than 6,000 hours – equivalent to the projector being used for three hours a day over a period of ten years.
  • Template FunctionTemplate Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
  • Virtually Maintenance FreeVirtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Quick On/OffQuick On/Off – Plug in, turn on and present. The Quick On/Off feature and automatic resolution equals fast set-up
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • Ultra QuietUltra Quiet – With a low noise level of 29dB in our latest models, the internal fan is one of the quietest in its class. The audience will hear the presenter, not the operating noise of the projector.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • Centralised Reporting FunctionCentralised Reporting Function – Using a single PC, create HTML reports for a group of networked projectors to simplify maintenance requirements.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Horizontal Keystone CorrectionHorizontal Keystone Correction – Correct misaligned images with horizontal keystone correction.
  • Progressive ScanProgressive Scan – Typically with moving images, each frame of video is shown in two halves – odd lines and even lines. Progressive Scan enables every line of a video frame to be displayed simultaneously resulting in crisp, smooth motion and reduced flicker and judder.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs


Panel 1.22″ LCD panel
Resolution WXGA (1366 x 800)
Brightness Normal Mode: 6500 ANSI Lumens
Eco Mode: 5200 ANSL Lumens
Contrast Ratio 2500:1
Lens Lens is NOT included
Lamp Single lamp system
Lamp Life 3000 hours (Normal Mode)
4000 hours (Eco Mode)*
Diagonal Display Size 40-700″ (target)
Number Of Colours 10-bit signal processor, digital gamma 12-bit


Computer Compatibility up to UXGA (1600 x 1200) compressed
Video Compatibility NTSC / PAL / SECAM / PAL-M,N / NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p (720p@60Hz), 1125i(1080i@50 / 60Hz), 1125p(1080p@50 / 60)
Plug & Play DDC2B


Basic Features Freeze, Magnifying, Blank, Quick on (4 Seconds), Direct power on, Auto adjustment, Search
Picture Adjustments Equalising Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction
Digital Keystone Vertical Auto, Horizontal Manual
Advanced Features MyScreen, My Memory, My Button, Blackboard / Whiteboard mode, Daytime mode, Input source naming (English), Resolution setting, Resolution Preset and Customise, Template Function, IR Remote Frequency Change, Closed Captions, Source Skip, Picture by Picture
Other Lamp door on back side, Quick ON, Direct ON, Direct Off, PIN-Lock, MyScreen PIN-Lock, Keypad Lock, Kensington slot, Transition Detector, My Text Password, Security LED
Security Bar
Security Label
Serial Label On Side
OSD Languages MENU: English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey, Danish, Czech, Arabian, Persian


Computer Input 2 x 15-pin Mini-D-sub
1 x BNC (shared with component)
1 x HDMI (Digital RGB)
1 x DVI-D
Monitor Output 1 x D-sub 15
Video Input 1 x Composite RCA jack
1 x S-Video jack
1 x Composite BNC
1 x Component BNC (shared with computer)
1 x Component RCA
Audio Input
Audio Output
Mouse Emulation
Control 1 x Serial port IN / OUT for RS232C
Wired Remote Control
Wired Network 1 x RJ-45


Voltage 110V~120V, 220V-240V
Power Consumption 540W


Dimensions (W X H X D) 476 x 272 x 469mm (excluding feet and extrusions)
Weight 13.2Kg (No lens)
Noise Level Normal: 39dB
Eco: 32dB
Air Filter Hybrid


  Lamp, Temp, Standby, Shutter, Projection Image Ceiling Mount Image


  Remote control with batteries, Computer cable, Power cord, User manual (detail & concise)
