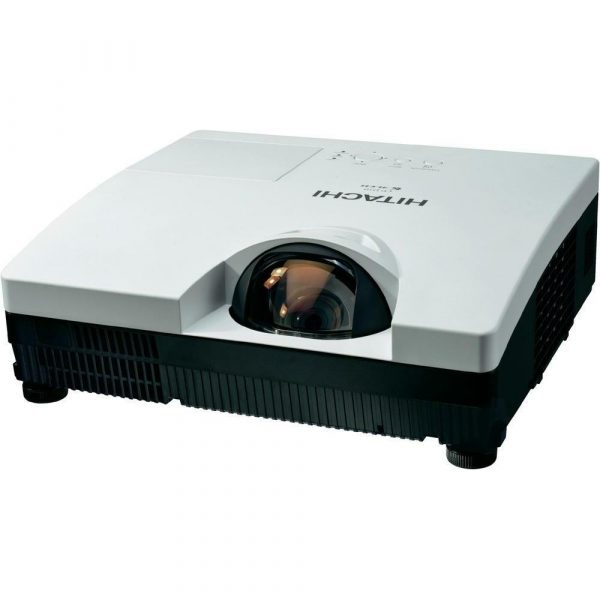

Hitachi CPDW10N – LCD WXGA (1280 x 800) 2000 ANSI Short-Throw


SKU: 162 Category:


Project large, bright images in limited space with Hitachi’s new range of short throw projectors. Perfect for small and medium meeting rooms, the CP-DW10N WXGA network projector can deliver an impressive 80″ (203cm) image from less than a metre away (from lens to screen). Expect no less from the experts in short throw projection.

  • Brightness: 2000 ANSI Lumens
  • Resolution: WXGA (1280 x 800)
  • Contrast ratio: 500:1
  • 80″ (203cm) image at 86.2cm**
  • Hybrid Filter: 4000 hour cleaning cycle
  • Lamp life: 4000 hours (Eco Mode)*
  • Advanced networking features

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Security featuresSecurity features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • Low TCOLow TCO – Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • AMX Device DiscoveryAMX Device Discovery – When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Template FunctionTemplate Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
  • Virtually Maintenance FreeVirtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Quick On/OffQuick On/Off – Plug in, turn on and present. The Quick On/Off feature and automatic resolution equals fast set-up
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • Ultra QuietUltra Quiet – With a low noise level of 29dB in our latest models, the internal fan is one of the quietest in its class. The audience will hear the presenter, not the operating noise of the projector.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Progressive ScanProgressive Scan – Typically with moving images, each frame of video is shown in two halves – odd lines and even lines. Progressive Scan enables every line of a video frame to be displayed simultaneously resulting in crisp, smooth motion and reduced flicker and judder.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs


LCD Panel 0.59″ (1.5cm) P-Si TFT x 3
Resolution WXGA
Brightness Normal Mode 2000 ANSI Lumens
Eco Mode 1500 ANSI Lumens
Contrast Ratio 500:1
Lens Manual focus
Lamp Wattage 180W UHB
Lamp Life 3000 hours (Normal Mode)
4000 hours (Eco Mode)*
Diagonal Display Size 60~100″ (80″ @ 86cm)
152~254cm (203cm @ 86cm)
Number Of Colours 8 Bit/colour, 16.7M colours
Keystone Correction Fixed, 5.1:-1 upward shift
Distance To Width Ratio 0.5:1 (fixed)
  *The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps should achieve this figure.


Computer Compatibility IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA compressed, MAC16″
Component Video 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
HDMI Video Signal: 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
Plug & Play DDC2B (RGB1)


Speakers 10W Mono
Basic Functions Freeze, Magnifying, Blank, Auto adjustment, Auto Signal Search
Picture Adjustments Digital zoom x 1.35, Equalizing Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction
Digital Keystone Manual V keystone ±6 degrees
Advanced Features Advanced features MyScreen, My Memory, My Button, My Text, My Source, Blackboard/Whiteboard mode, Daytime Mode, Input Source Naming (English), Resolution setting, Template, Closed Caption (for NTSC only), Audio Pass Through
Outward Easy lamp replace from top, Air filter slides towards front side or top
Power On & Off Quick On, Direct On, Auto Off
Security Systems Security bar, PIN-Lock, MyScreen Password, Keypad-Lock, Kensington slot, Transition detector, My Text, Security label
Network Configure and control projector via web browser, receive alerts via e-mail, projector management via SNMP, Scheduling, My Image, Command Control via network, Messenger, AMX Device Discovery, PJ Link™, Network Bridge
OSD Languages English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)

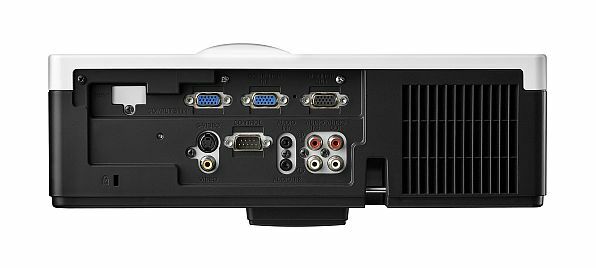

Digital Input 1 x HDMI
Computer Input 2 x 15-pin Mini D-sub
Computer Output 1 x 15-pin Mini D-sub
Video Input 2 x Component D-sub (shared with analogue RGB)
1 x RCA for composite
1 x Mini-DIN for S-Video
Audio Input 2 x Stereo Mini jack
1 pair RCA(L / R) (Selectable on OSD)
Audio Output 1 x pair RCA (L/R)
Control 1 x 9-pin D-Sub for RS-232C Control
Network 1 x RJ-45


Power Supply 100~120/220~240V, auto switching
Power Consumption/Standby 270W/


Dimensions (W X H X D) 333 x 103 x 303mm (excluding feet and extrusions)
Weight 3.7kg
Noise Level 28dB (Eco Mode)/36dB (Normal Mode)
Air Filter Hybrid


  Lamp indicator light, Power light, Ceiling mount image, Rear projection image, Serial number label on side


  EN60950-1 (Low voltage directive) CE Marking EN61000-3-2, EN61000-3-3, EN55022, EN55024 (EMC directive), GOST-R


  Remote control with batteries, Computer cable, Power cord, Lens cap, Security label, User manual (detail & concise)


Replacement Lamp DT00691
Laser Pointer Remote Control HL02483
Cable Cover CCAW100


Projector Warranty 3 Years
Lamp Warranty 6 Months**
  **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated).
