Hitachi CPAW251NM – LCD WXGA (1280 x 800) 2500 ANSI Ultra Short-Throw


SKU: 159 Category:


The perfect balance of technology and design. The light weight and compact CP-AW251NM Ultimate Short Throw projector offers the highest quality images with a compelling design and low cost of ownership. The compact and lightweight chassis makes the CP-AW251NM easy to install and flexible to use. With the bundled wall mount and optional table top kit you can project onto any existing whiteboard, wall or table top.

  • Brightness: 2500 ANSI Lumens
  • Resolution: WXGA (1280 x 800)
  • Contrast Ratio: 2000:1
  • 80″ (203 cm) Image from only 53 cm*
  • Hybrid Filter: 5000 hour cleaning cycle
  • Advanced networking features
  • This model is supplied with a versatile wall mount
  • Optional table top mount

Features at a glance

  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • AMX Device DiscoveryAMX Device Discovery – When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).

Product Specs


LCD Panel 0.59″ (1.5cm) P-Si TFT x 3
Resolution WXGA (1280 x 800)
Brightness Normal Mode 2500 ANSI Lumens
Eco Mode 1700 ANSI Lumens
Colour Light Output 2500 ANSI Lumens
Contrast Ratio 2000:1
Lens Free shaped lens & motorised free shaped mirror
Lamp Wattage 210W UHB
Lamp Life 3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)*
Distance To Width Ratio (:1) 0.3:1 (fixed)
Diagonal Display Size 60~100″ (152~254cm)
Number Of Colours 8 Bit/colour, 16.7M colours
Keystone Fixed, 5.2:-1 upward shift
  *The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps should achieve this figure.


Computer Compatibility IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA, MAC 16″
Video Compatibility NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p (720p@60Hz), 1125i(1080i@50/60Hz), 1125p(1080p@50/60Hz)
Plug & Play DDC2B


Speakers 10W Mono
Basic Functions Freeze, Magnify, Blank, Auto adjustment, Search
Picture Adjustments Equalizing Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction, Perfect Fit
Digital Keystone Manual Vertical Keystone correction, Manual Horizontal Keystone correction
Advanced Features My Screen, My Memory, My Button, blackboard/whiteboard mode, Daytime mode, input source naming (English), resolution setting, Template, Saving mode, AudioPass through, My Text
Outward Easy Lamp replace from Top, Rear intake air filter
Power On & Off Quick ON, Direct ON, Direct Off
Security Systems PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar
Network Configure and control projector via web browser, receive alerts via e-mail, projector management via SNMP, Scheduling, My Image, displaying text data transferred via the network, Command Control via network, AMX Device Discovery, Messenger, PJ Link™, Network Bridge, content via LAN
OSD Languages English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)

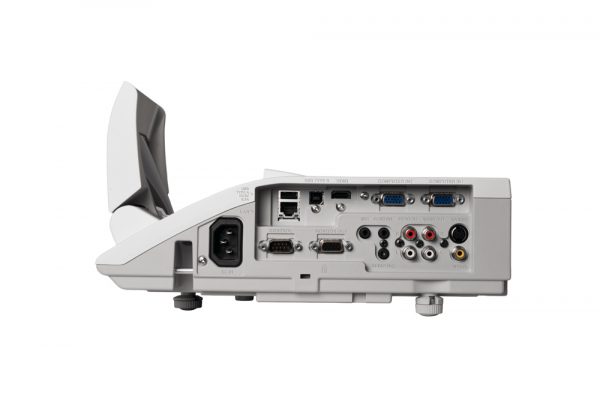

Digital Input 1 x HDMI
Computer Input 2 x 15-pin Mini D-sub
Computer Output 1 x 15-pin D-sub
Video Input 1 x RCA Jack (for composite)
1 x S-Video Jack
2 x Component D-sub (shared with analogue RGB)
Audio Input 2 x Stereo Mini Jack
1 x pair RCA (L/R)
1 x Microphone Jack
Audio Output 1 x pair RCA (L/R)
Control 1 x 9-pin D-Sub for RS-232C Control
USB 1 x USB type A for PC-less presentation
1 x USB type B for mouse control
Wired Network 1 x RJ-45


Power Supply AC100-120 / 220-240 V, auto switching
Power Consumption 300W
Power Consumption In Standby


Dimensions (W X H X D) 345 x 85 x 303mm (excluding feet and extrusions when mirror is closed)
Weight 3.8Kg
Noise Level 35dB (Normal Mode) / 29dB (Eco Mode)
Air Filter Hybrid


  Lamp indicator light, Power light, Ceiling mount image, Rear projection image, Serial number label on side


  ‘UL60950-1/C-UL, FCC Part 15 Class A, ‘CE, AS/NZS CISPR22 Class A


  Remote control with batteries, RGB cable, power cord, cable cover, security label, user manual (detail & concise), Wall mount (HAS-K250)


Replacement Lamp DT01181


Projector Warranty 3 Years
Lamp Warranty 6 Months**
  **A free replacement lamp will be issued if the original lamp fails within 6 months from the date of purchase.
