Hitachi BZ1NM – LCD WXGA (1280 x 800) 2500 ANSI Short-Throw


SKU: 157 Category:


The innovative BZ-1M integrates simple to use but powerful Hitachi software to deliver a complete interactive experience on any flat surface. With a rich but targeted feature set that meets the specific interactive needs of corporate users, the compact BZ-1M, like the other models in the Ultimate range, is easy to install, easy on the environment and designed to deliver outstanding performance in any setting.

  • Brightness: 2500 ANSI Lumens
  • Resolution: WXGA (1280 x 800)
  • Contrast Ratio: 2000:1
  • 80″ (203cm) image from only 56cm
  • Extended Hybrid Filter life – up to 5000 hour cleaning cycle
  • Advanced networking features
  • Fully interactive
  • Suitable for any flat surface
  • Bundled with Hitachi software and interactive pen
  • This model is supplied with a versatile wall mount
  • Optional table top mount

Features at a glance

  • Interactive ProjectorInteractive Projector – This innovative projector intergrates Hitachi Starboard software to deliver a complete interactive experience on any flat surface.
  • 3LCD3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
  • Hybrid FilterHybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
  • Security featuresSecurity features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
  • Blackboard/Whiteboard ModeBlackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
  • PC-less PresentationsPC-less Presentations – Simply plug in a memory stick, SD card, or even a portable hard disk drive and present without the need of a laptop.
  • Advanced NetworkingAdvanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
  • AMX Device DiscoveryAMX Device Discovery – When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
  • HD ReadyHD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
  • HDMIHDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
  • Long Life LampLong Life Lamp – Using Eco Mode, lamp life is extended to more than 6,000 hours – equivalent to the projector being used for three hours a day over a period of ten years.
  • Template FunctionTemplate Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
  • Virtually Maintenance FreeVirtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
  • Daytime ModeDaytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
  • Quick On/OffQuick On/Off – Plug in, turn on and present. The Quick On/Off feature and automatic resolution equals fast set-up
  • Input Source NamingInput Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
  • Ultra QuietUltra Quiet – With a low noise level of 29dB in our latest models, the internal fan is one of the quietest in its class. The audience will hear the presenter, not the operating noise of the projector.
  • My ButtonMy Button – Assign custom functions or common tasks to a programmable button on your remote control.
  • MessengerMessenger – Send text messages and announcements to multiple, networked projectors at the same time. This is ideal for projecting daily work schedules and university campus notifications to multiple classrooms simultaneously.
  • Centralised Reporting FunctionCentralised Reporting Function – Using a single PC, create HTML reports for a group of networked projectors to simplify maintenance requirements.
  • Audio Pass ThroughAudio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
  • Vertical Keystone CorrectionVertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
  • Horizontal Keystone CorrectionHorizontal Keystone Correction – Correct misaligned images with horizontal keystone correction.
  • On Screen Display (OSD)On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.

Product Specs


Interactive Sensor (IR And Ultrasonic Waves System) Single touch, an interactive pen is required
LCD Panel 0.59″ (1.5cm) P-Si TFT x 3
Resolution WXGA (1280 x 800)
Light Output (Brightness) 2500 ANSI Lumens (Normal Mode)
1700 ANSI Lumens (Eco Mode)
Colour Light Output (Colour Brightness) 2500 ANSI Lumens (Normal Mode)
1700 ANSI Lumens (Eco Mode)
Contrast Ratio 2000:1 (Presentation Mode)
Lens Free shaped lens & motorised free shaped mirror
Lamp Wattage 210W UHB
Lamp Life 3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)*
Distance To Width Ratio (:1) 0.3:1 (fixed)
Diagonal Display Size 60~100″ (152~254cm)
Number Of Colours 8 Bit/colour, 16.7M colours
Keystone Fixed, 5.2:-1 upward shift
  *The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps should achieve this figure.


Computer Compatibility IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA, MAC 16″
Video Compatibility NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p (720p@60Hz), 1125i(1080i@50/60Hz), 1125p(1080p@50/60Hz)
Plug & Play DDC2B


Speakers 10W Mono
Basic Functions Freeze, Magnifying, Blank, Auto adjustment, Search
Picture Adjustments Equalizing Gamma Correction, 2-3 Pull down for NTSC, Progressive Scan, Noise Reduction, Perfect Fit
Digital Keystone Manual Vertical Keystone correction, Manual Horizontal Keystone correction
Advanced Features MyScreen, My Memory, My Button, Blackboard/Whiteboard mode, Daytime Mode, Input source naming (English), Resolution setting, Template, Saving mode, AudioPass through, My Text, Lens door lock
Outward Easy Lamp replace from Top, Rear intake air filter
Power On & Off Quick ON, Direct ON, Direct Off, Auto Eco Mode
Security Systems PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar
Network Configure and control projector via web browser, receive alerts via e-mail, projector management via SNMP, Scheduling, My Image, displaying text data transferred via the network, Command Control via network, AMX Device Discovery, Messenger, PJ Link™, Network Bridge, content via LAN
OSD Languages English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)

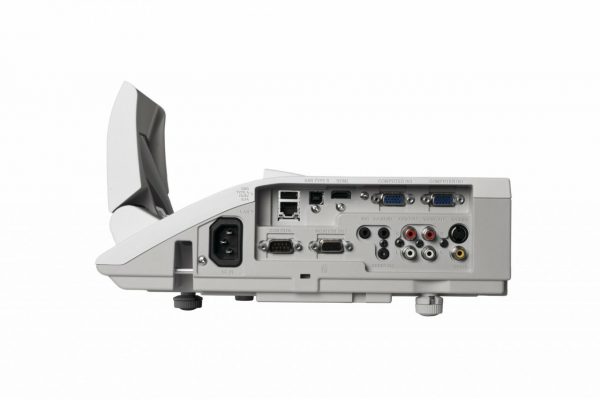

Digital Input 1 x HDMI (HDCP Compliant)
Computer Input 2 x 15-pin Mini D-sub
Computer Output 1 x 15-pin Mini D-sub
Video Input 1 x RCA Jack (for composite)
1 x S-Video Jack
2 x Component D-sub (shared with analogue RGB)
Audio Input 2 x Stereo Mini Jack
1 x pair RCA (L/R)
1 x Microphone Jack
Audio Output 1 x pair RCA (L/R)
Control 1 x 9-pin D-Sub for RS-232C Control
USB 1 x USB type A for PC-less presentation
1 x USB type B for mouse control
Wired Network 1 x RJ-45


Power Supply AC100-120V/220-240V, auto switching
Power Consumption 300W/


Dimensions (W X H X D) 345 x 102 x 303mm (excluding feet and extrusions when mirror is closed)
Weight 4.1Kg
Noise Level 34dB (Normal)/28dB (Eco)
Air Filter Hybrid (up to 5000 hours)


  Lamp indicator light, Power light, Ceiling mount image, Rear projection image, Serial number label on side


  ‘UL60950-1/C-UL, FCC Part 15 Class A, ‘CE, AS/NZS CISPR22 Class A


  Remote control with batteries (HL02772), RGB cable, power cord, cable cover, security label, user manual (detail & concise), wall mount (HAS-K250), interactive pen with batteries, USB cable (5m), Hitachi software and manual, Application DVD (software)


Replacement Lamp DT01251
Table Top Stand TT-251


Projector Warranty 3 Years
